10/100Mbps Ethernet Booster / Extender

Name: 10100Mbps Ethernet Booster Extender
Brand: E-link
Price: 1 USD

10/100Mbps Ethernet Booster / Extender Manufactures

Brand Name : E-link

Model Number : LNK-S110

Certification : CE

Place of Origin : China

MOQ : 1pcs

Price : negotiation

Payment Terms : L/C,T/T,Western Union,MoneyGram,PayPal

Supply Ability : 100000PCS/Month

Delivery Time : 7-10 working days

Packaging Details : Industrial PoE Switch Standard Carton Packaging

Input Power : AC100-240V/50-60HZ (Internal power)

Distance : Depend on SFP+ modules used, 20km recommended.

Operating Temperature : 0℃～+50℃

Weight : Net Weight: 0.32 kg, Gross Weight:0.64kg

Contact Now

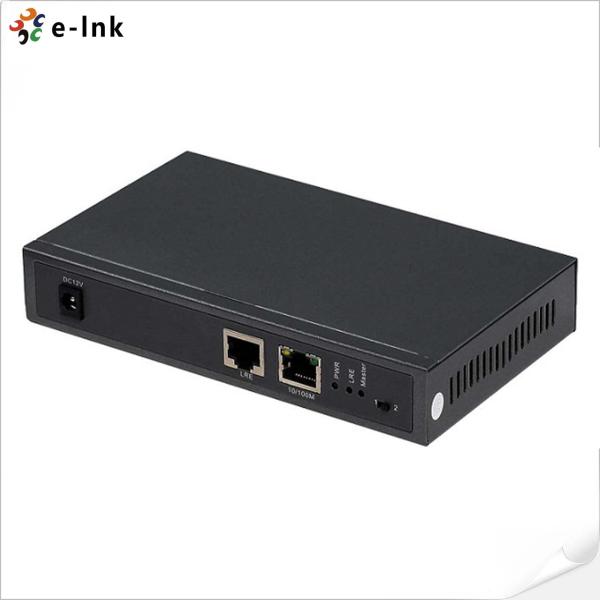

10/100Mbps Ethernet Booster / Extender

Product Advantages

► Supports IEEE 802.3x flow control for Full Duplex mode and backpressure for Half Duplex mode

► Patented LRE (Long- Reach Ethernet) Ethernet technology

► UPnP booster with mini size

► Unique thunder-proof chip with thunder strike effectively

► Build-in low radiation, surge-proof power supply, extreme low power consumption and hot radiation

► Wide range low voltage AC power supply

Technical Indexes

Parameter	Specification
Standard	IEEE802.3 (10BASE-T) IEEE802.3 Usf ANSI X3T12 TP-PMD ANSI X3.166FDDI-PMD
10BASE-T	STP or UTP Category 5/5e/6 cable (Max. 300m)
100BASE-T	10Base-T: UTP category 3, 4, 5 cable (maximum100m), EIA/TIA-568 100Ù STP (maximum 100m),100Base-Tx: UTP category 5, 5e cable (maximum 100m), EIA/TIA-568 100Ù STP (maximum 100m)
Humidity	5%~90% non-condensing
RJ-45 Port	Auto-MDI/MDIX
Operating Temperature	0℃～+50℃
Storage Temperature	-40℃～+70℃
Input Voltage	AC100-240V/50-60HZ (Internal power)
Power Consumption	<2.5W
Dimension	145mm(W) ×86mm(D) ×28mm(H)
Weight	Net Weight: 0.32 kg, Gross Weight:0.64kg

Overview

E-link Network booster LNK-S110 needs to be used in pairs, 1200m extension distance for 10M Ethernet, and 305m extension distance for 100M Ethernet.

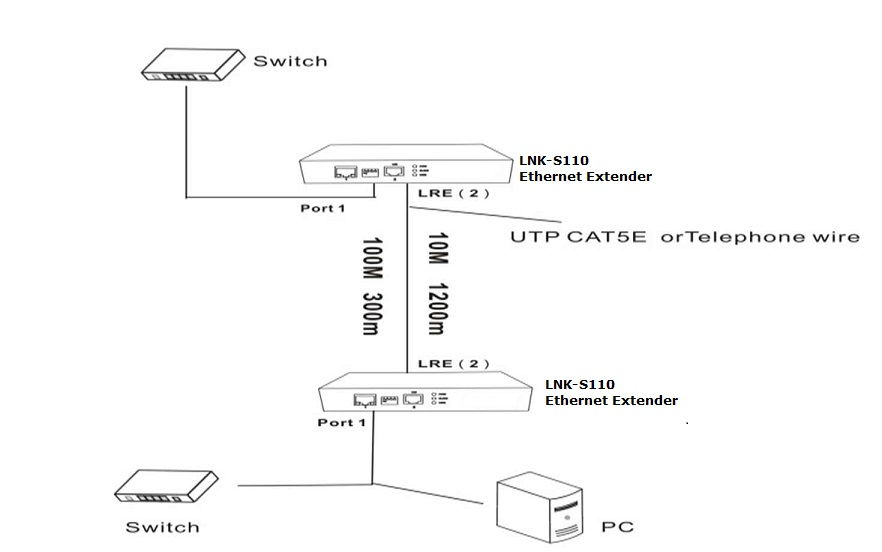

Application

10/100Mbps Ethernet Booster / Extender

Ordering Information

Model	Description
LNK-S110	1 uplink port + 1 downlink port, used in pairs, 1200m extension distance by 10M Ethernet and 250~300m distance by 100M Ethernet, Used with UTP CAT5, UTP CAT5E or 4-wire telephone cable, Internal power supply, resistance must be less than 30Ω
