Mini Industrial 10BASE-T to 10BASE-FL Ethernet Media Converter

Mini Industrial 10BASE-T to 10BASE-FL Ethernet Media Converter

Advantages

► Auto-MDI/MDIX

► Complies with 802.3 10Base-T and 10Base-FL standards

► Extends network span from up to 2km(Multi mode)

► Interoperable with other 10Base media converters, 10Base, 10Base-T NICs, hubs or switches

► Provides LEDs for easy network monitoring

► Supporting Quality of Service (QoS), ensuring the transmission of VoIP packets

► Supports 802.3x Flow control

► IEEE 802.3az Energy Efficient Ethernet (EEE)

► Supports Wall-mount and DIN-Rail installation

► -40°C to 80°C (-40°F to 176°F) operating temperature.

Overview

E-link Mini Industrial 10Base-T Ethernet to 10Base-FL fiber optical media converter converts your existing 10Base-T Ethernet to a 10Base-FL network with single mode or multimode fiber optic cable up to 20,000 meters.It’s a hardened product with wide operating temperature range from -40°C to 75°C, and ruggedized aluminum housing. The Ethernet port supports both half-duplex and full-duplex mode. The rugged hardware design ensures that your Ethernet equipment can withstand demanding industrial conditions. The LNK-IMC10FST Series are easy to mount on a DIN rail or in distribution boxes.

Connect 10 Mbps Ethernet segments to fiber segments without using crossover cables. With a E-link 10Mbps Media Converter, you no longer have to deal with mismatched transmit and receive cable pairs. This converter contains a switch that senses the type of circuit connected to the UTP port and automatically configures the port to match. Because the UTP side is autosensing to MDI/MDI-X, you can use either a straight or crossed cable to connect a switch or NIC.

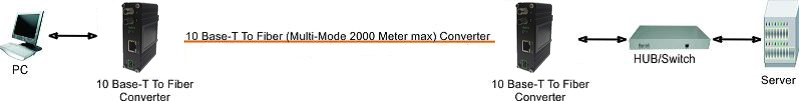

Application

Ordering Information

10BASE-T Ethernet Media Converter

10BASE-FL Ethernet Media Converter

Mini Industrial 10BASE-T to 10BASE-FL Ethernet Media Converter Images
