12~48V DC Power Input Industrial Gigabit 60W PoE Injector
12~48V DC Power Input Industrial Gigabit 60W PoE Injector Advantages
► 12~48V DC Power Input
► 1 RJ45 Ethernet Data Input Port + 1 RJ45 Power Over Ethernet Output Port (Data + Power)
► Support IEEE802.3at Power over Ethernet Power Sourcing Equipment
► Support 10/100/1000Base-TX
► Extensive LED indicators for PoE diagnostics
► Environmentally Hardened -40°C to 80°C (-40°F to 176°F) operating temperature
► Small Size 95 x 70 x 30 mm
► Weight 0.25Kg
► Aluminum Alloy Metal Case
► Support DIN-rail mounting and wall mounting installation
12~48V DC Power Input Industrial Gigabit 60W PoE Injector Overview
The LNK-INJ301-60 product is a Hardened Gigabit 60W PoE Injector allows you to connect the IEEE 802.3 af/at PoE device such as camera and access point with a non PoE LAN switch within the distance of 100m.
Both the Ethernet port (to switch) and the PoE Out port (to PoE device) support 10/100/1000Base-T and are compliant with IEEE 802.3ab. The PoE Out port is also compliant with IEEE 802.3 at.
LNK-INJ301-60 provides an integrated power solution with a wide range voltage of 12~48VDC for high availability applications.
12~48V DC Power Input Industrial Gigabit 60W PoE Injector Technical Indexes
| Ethernet |
| Standards: | IEEE802.3af Power over Ethernet |
| | IEEE802.3at Power over Ethernet |
| Processing Type: | Forward |
| | Half-duplex, Full-duplex |
| Forward Filter Rate: | 1,488,000pps (1000Mbps) |
| Cabling: | 10/100/1000Base-T: Cat5 or above |
| Maximum Distance: | Cat5 UTP up to 100m |
| Connector: | 2x RJ45 |
| PoE (Power over Ethernet) |
| Standard: | IEEE802.3af/at |
| Port: | RJ45 |
| Power Pin Assignment | 4/5(+), 7/8(-) |
| Max. Power per Port: | 60W Max per port (Alternative B Mode) |
| LED Indicators: |
| Power: | Power Status |
| PoE: | PoE Status |
| Dimensions (WxDxH): | 95 x 70 x 30 mm |
| Weight: | 0.25Kg |
| Casing: | Aluminum Case |
| Mounting Options: | DIN-Rail / Wall-mount |
12~48V DC Power Input Industrial Gigabit 60W PoE Injector ordering information
| Model | Description |
| LNK-INJ301-60 | 12~48VDC Power Input Industrial Gigabit 60W PoE Injector |
| Mounting Options | ► Default DIN-Rail Bracket installed; Wall Mount Bracket is included. |
| Power Options | ► Power Supply is to be purchased separately |
|
|

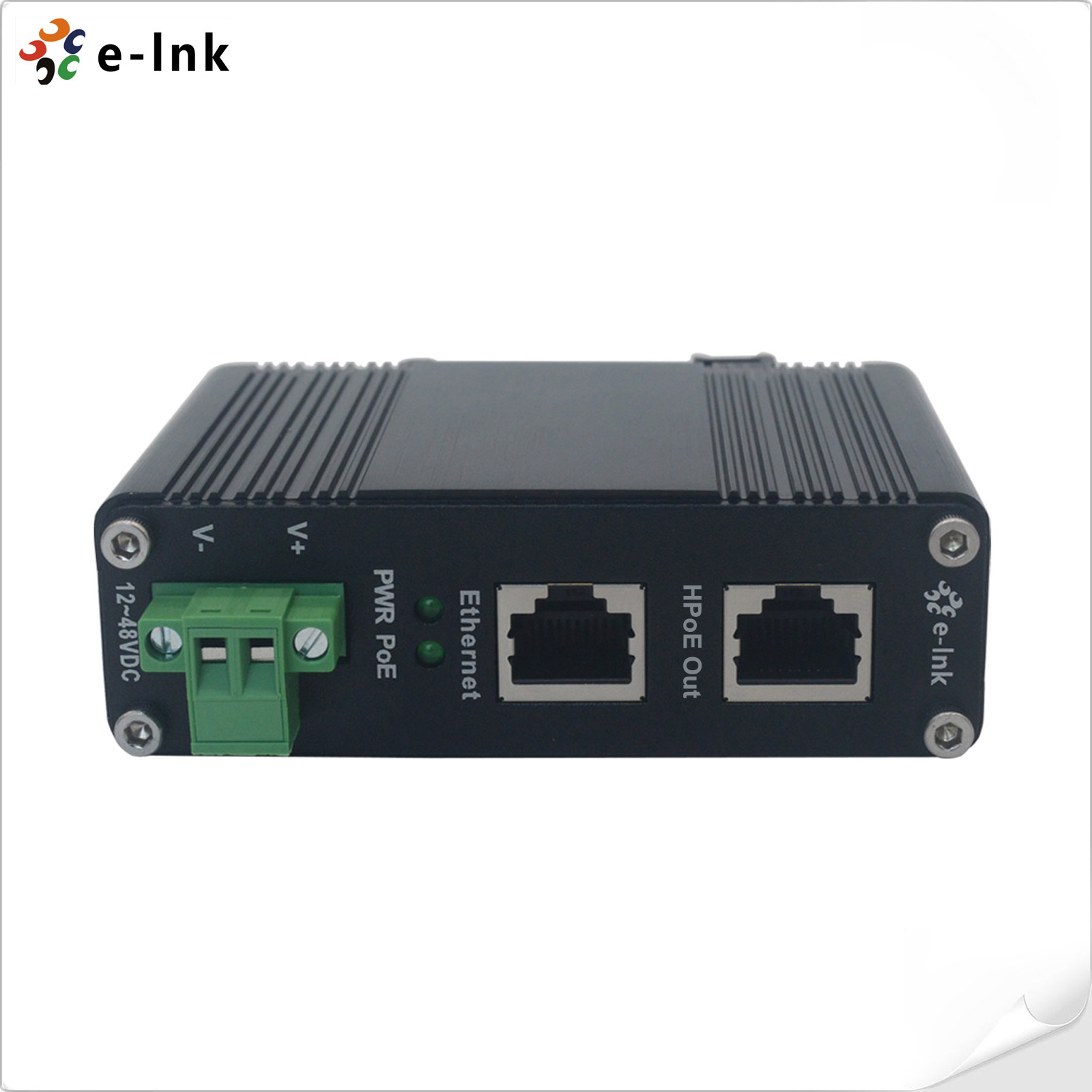

12~48V DC Power Input Industrial Gigabit 60W PoE Injector Images
|
