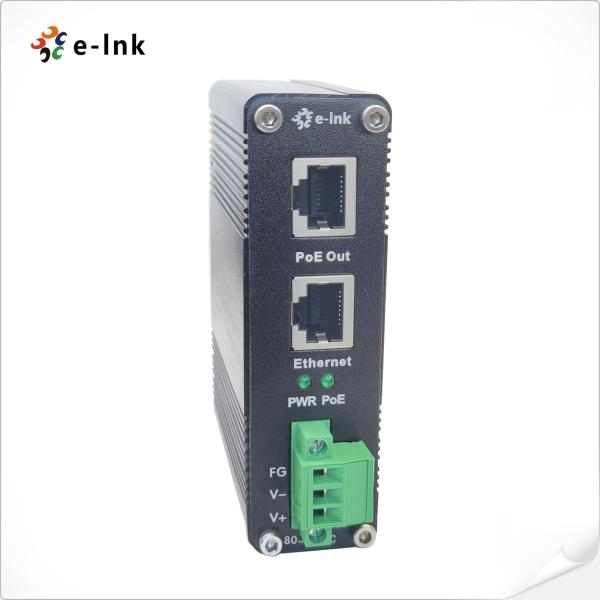

80~320V DC Power Input Industrial Gigabit PoE+ Injector

Brand Name : E-link

Model Number : LNK-INJ832

Certification : ROHS,FCC,CE

Place of Origin : China

MOQ : 1 pcs

Price : Negotiation

Payment Terms : L/C,T/T,Western Union,MoneyGram,Paypal

Supply Ability : 1000 pcs/month

Delivery Time : 3-12 working days

Packaging Details : InjectorStandard Export Package

Keywords : Industrial Gigabit PoE+ Injector

Input Power : 80~320VDC (Terminal Block)

Power consumption : 36W Max.

Operating humidity : 5% to 95% non-condensing

Operating Temperature : -40°C to 80°C (-40°F to 176°F)

MTBF : >200,000hrs

Contact Now

80~320V DC Power Input Industrial Gigabit PoE+ Injector

80~320V DC Power Input Industrial Gigabit PoE+ Injector Advantages

► 80~320VDC wide-range input voltage

► Supports 10/100/1000Base-T (X) for PoE+ OUT and Data IN

► IEEE 802.3af/at compliant, supports a full 30 watt output

► Provides slim size with IP40 metal mechanism

► Support DIN-Rail & Wall-mount installation.

► Extensive LED indicators for PoE diagnostics

► Environmentally Hardened -40°C to 80°C (-40°F to 176°F) operating temperature

80~320V DC Power Input Industrial Gigabit PoE+ Injector Overview

The LNK-INJ832 product is a Hardened Gigabit High Power PoE Injector allows you to connect the IEEE 802.3 af/at PoE device such as camera and access point with a non PoE LAN switch within the distance of 100m.

Both the Ethernet port (to switch) and the PoE Out port (to PoE device) support 10/100/1000Base-T and are compliant with IEEE 802.3ab. The PoE Out port is also compliant with IEEE 802.3at.

LNK-INJ832 provides an integrated power solution with a wide range voltage of 80~320VDC for high availability applications.

80~320V DC Power Input Industrial Gigabit PoE+ Injector Technical Indexes

Ethernet

Standards:

IEEE802.3af Power over Ethernet

IEEE802.3at Power over Ethernet

Processing Type:

Forward

Half-duplex, Full-duplex

Forward Filter Rate:

1,488,000pps (1000Mbps)

Cabling:

10/100/1000Base-T: Cat5 or above

Maximum Distance:

Cat5 UTP up to 100m

Connector:

2x RJ45

PoE (Power over Ethernet)

Standard:

IEEE802.3af/at

Port:

RJ45

Power Pin Assignment

4/5(+), 7/8(-)

Max. Power per Port:

30W Max per port (Alternative B Mode)

LED Indicators:

Power:

Power Status

PoE:

PoE Status

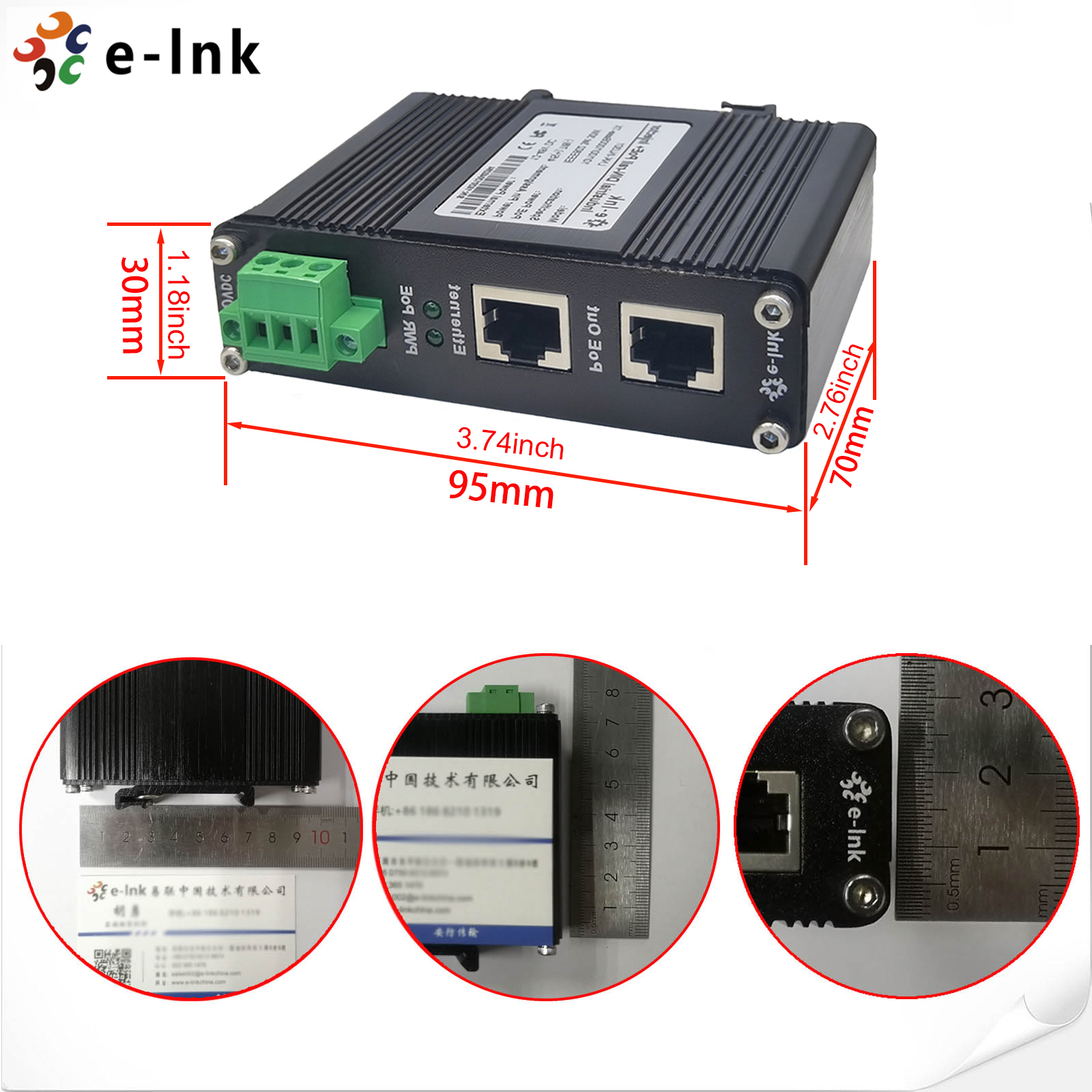

Dimensions (WxDxH):

95 x 70 x 30 mm

Weight:

0.25Kg

Casing:

Aluminum Case

Mounting Options:

DIN-Rail / Wall-mount


80~320V DC Power Input Industrial Gigabit PoE+ Injectorordering information

Model

Description

LNK-INJ832

80~320VDC Power Input Industrial Gigabit PoE+ Injector

Mounting Options

► Default DIN-Rail Bracket installed; Wall Mount Bracket is included.

Power Options

► Power Supply is to be purchased separately
