EN50155 Industrial 1-port 10/100/1000 PoE Injector with 30W output, M12 connector
EN50155 Industrial 1-port 10/100/1000 PoE Injector with 30W output, M12 connector Advantages
► 12~48VDC Power Input
► Fully compliant with IEEE802.3af/at
► Support 10/100/1000Base-TX for power and data output
► Support DIN-Rail & Wall-mount installation
► Use M12 connectors to ensure tight and robust connections
► Extensive LED indicators for PoE diagnostics
► Environmentally Hardened -40°C to 80°C (-40°F to 176°F) operating temperature
EN50155 Industrial 1-port 10/100/1000 PoE Injector with 30W output, M12 connector Overview

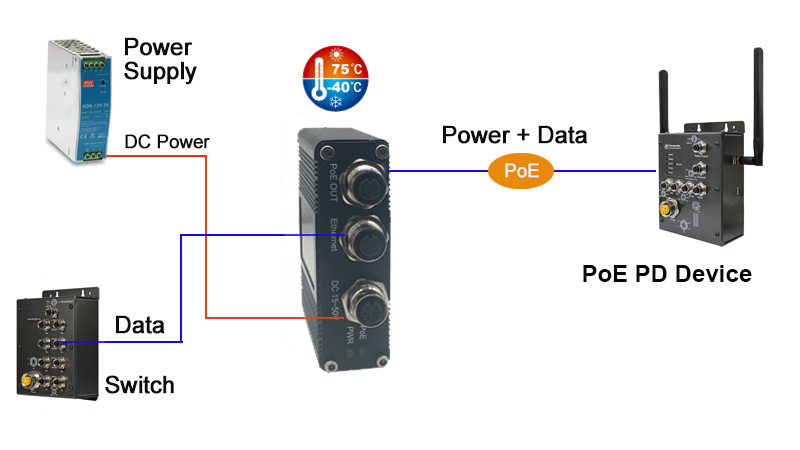

E-link EN50155 compliant PoE Injectors are designed for industrial applications, such as rolling stock, vehicle, and railway applications. The PoE Injector is an advanced IEEE802.3at compliant device with Intelligent Detection that provides 1-port 10/100/1000 Base-T(X) PoE output which is compliant with EN50155. It is specifically designed for the toughest industrial environments. The EN50155 PoE Injector uses M12 connectors to ensure tight, robust connections, and guarantee reliable operation during environmental disturbances, such as vibration and shock. The device does not turn on power until it detects a valid PoE signature from the PoE devices attached downstream in the network. This provides protection against damage to non-PoE compliant devices which may be connected to the Ethernet cable.
LNK-INJ301-M12 provides an integrated power solution with a wide range voltage of 12~48VDC for high availability applications.
EN50155 Industrial 1-port 10/100/1000 PoE Injector with 30W output, M12 connector Technical Indexes
| PoE (Power over Ethernet) |
| Standard: | IEEE802.3af/at |
| Port: | M12 connector (8-pin female M12 A-coding) |
| Max. Power per Port: | 30W Max |
| LED Indicators: |
| Power: | Power Status |
| PoE: | PoE Status |
| Dimensions (WxDxH): | 95 x 70 x 30 mm |
| Weight: | 0.25Kg |
| Casing: | Aluminum Case |
| Mounting Options: | DIN-Rail / Wall-mount |
| Regulatory Approvals |
| ISO9001 |
| FCC part 15, Class A, EN50155 |
| EN55022:2006+A1: 2007 Class A |
| Surge Protection: |
| RJ45: 1KV |
| Power: 500V |
| ESD: 4KV/8KV |
EN50155 Industrial 1-port 10/100/1000 PoE Injector with 30W output, M12 connector ordering information
| Model | Description |
| LNK-INJ301-M12 | EN50155 Industrial 1-port 10/100/1000M M12 PoE Injector 12~48VDC Power Input |
| Mounting Options | ► Default DIN-Rail Bracket installed; Wall Mount Bracket is included. |
| Power Options | ► Power Supply is to be purchased separately |
|
|
