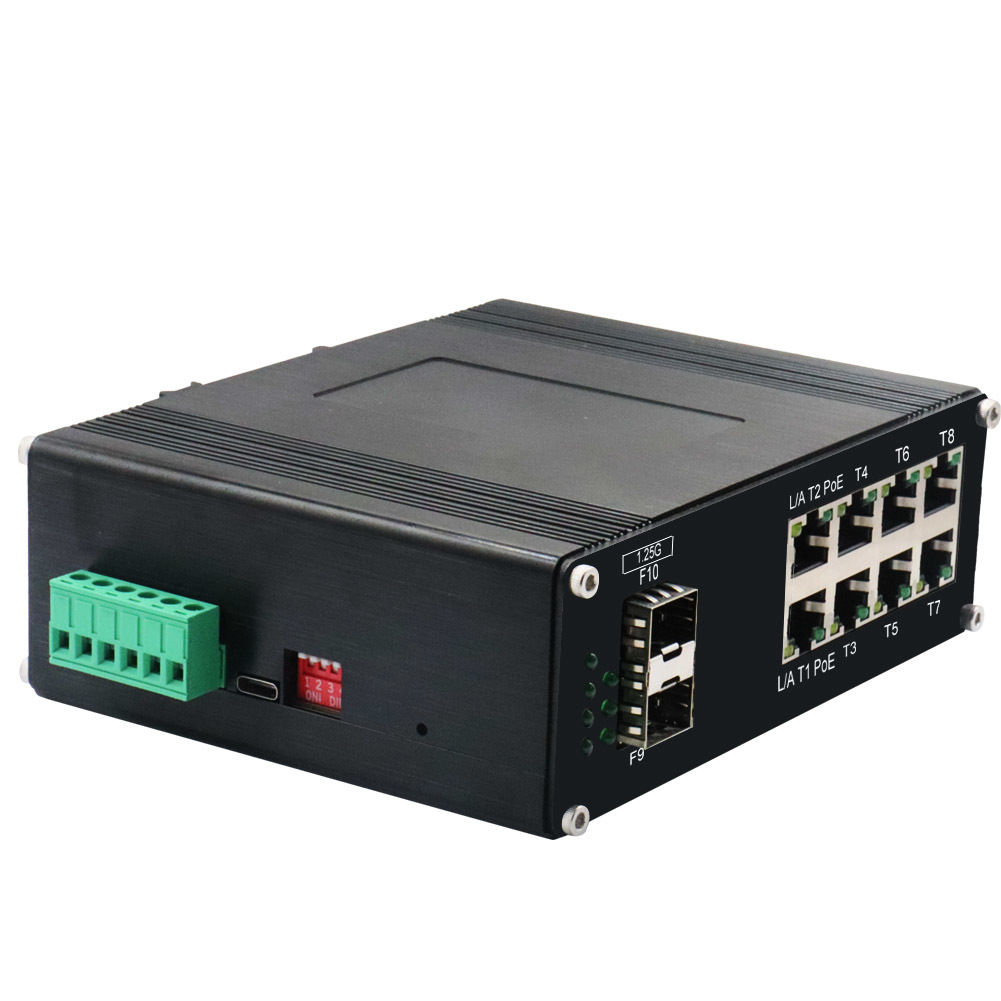

Industrial L2+ 8-Port 10/100/1000T 802.3at PoE + 2-Port 1000X SFP Managed Ethernet Switch
Advantage
► Support 8x10/100/1000Base-T + 2x1000Base-X SFP
► 10/100/1000Mbps RJ45 Port supports Full/Half-duplex, Auto-negotiation, Auto MDI/MDIX
► IEEE802.3af/at compliant
► DIP Switch supports one-key VLAN, one-key Ring Management, PoE Reset and 250m PoE Network
► Support connecting USB-C port for easy management, without the need to access the RS232 serial port at all
► 9K Bytes Jumbo Frame
Overview
ETH-IMC208MP series is the L2+ managed 8-port 10/100/1000Base-T 802.3at PoE + 2-port 1000Base-X SFP hardened
Ethernet switch. The Switch has 8 TP ports and 2 fiber ports. The TP (RJ45) supports 10/100/1000Base-T(X), Full/Half
duplex mode, and auto MDI/MDI-X connection; 1000Base-X SFP port supports 1 or 2 core Single-mode or Multi-mode fiber.
With its reliable design and ease of use, the product is a great choice for integrating networks consisting of network devices
such as IP cameras and wireless access points between remote locations.
Technical Indexes
| Ethernet |
| Standards: | IEEE802.3 10BASE-T |
| | IEEE802.3u 100BASE-TX/FX |
| | IEEE802.3ab 1000BASE-T |
| | IEEE802.3z 1000BASE-X |
| | IEEE802.3ae 10GBase-R |
| | IEEE802.3p QoS |
| | IEEE802.1d Spanning Tree |
| Forward & Filtering Rate: | 14,880pps (10Mbps) |
| | 148,800pps (100Mbps) |
| | 1,488,000pps (1000Mbps) |
| | 1,488,000,000pps (10000Mbps) |
| Packet Buffer Memory: | 12M bits |
| Processing Type: | Store-and-Forward |
| Backplane bandwidth | 110Gbps |
| Max Packet Length: | 9K Bytes Jumbo Frame |
| Address Table Size: | 8K MAC Addresses |
| Interface |
| Connector: | 8 x RJ45 |
| RS485: | 1 x RS485 (Optional) |
| Optical Port: | 2 x 1000Base-X SFP |
| USB-C: | 1 x USB-C (for Management) |
| RS485 Serial Interface (Optional) |
| Physical interface | Industrial standard 3-pin screw terminal |
| Data type | 1Ch RS485 Bi-Direction |
| RS-485 signals | Data +, Data-, GND |
| Serial port line distance (copper) | 1000 meters |
| Baud rate | 0 ~ 800kbps |
| PoE (Power over Ethernet) |
| Standard: | IEEE 802.3at Power over Ethernet Plus |
| | IEEE 802.3af Power over Ethernet |
| Port: | RJ45 |
| Power Pin Assignment | 4/5(+), 7/8(-) |
| PoE Budget: | Up to 240-watt PoE budget |

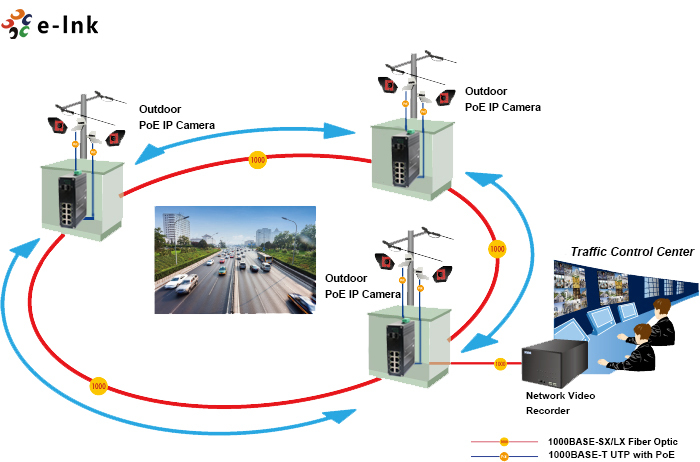

Application
Ordering Information
| Model | Description |
| ETH-IMC208MP | Industrial L2+ 8-Port 10/100/1000T 802.3at PoE + 2-Port 1000X SFP Managed Ethernet Switch |
| SFP Options | ► SFP option. Please select your SFP on our SFP Options Page |
| ► SFP module is to be purchased separately. |
| Mounting Options | ► Default DIN-Rail Bracket installed |
| Power Options | ► DIN-Rail Power Supply. Open Wire for Terminal Block. |
| ► Power Supply is to be purchased separately. |
