12~48VDC Power Input Industrial Gigabit PoE+ Injector

Brand Name : E-link

Model Number : LNK-INJ301

Certification : ISO9001, CE, FCC, RoHS

Place of Origin : China

MOQ : 1pcs

Price : Negotiated

Payment Terms : T/T,PayPal

Supply Ability : 1000pcs/mouth

Delivery Time : 5-12working days

Packaging Details : standard export package

Input Power : 12~48V DC Redundant Power

Cabling : 10/100/1000/2.5G Base-T Cat6A Or Above

PoE Port : 1 x 10/100Mbps RJ45

Keyword : PoE Power Supply

Mounting Type : DIN-Rail Mount

Poe Pinout : 1/2(+), 3/6(-)

Contact Now

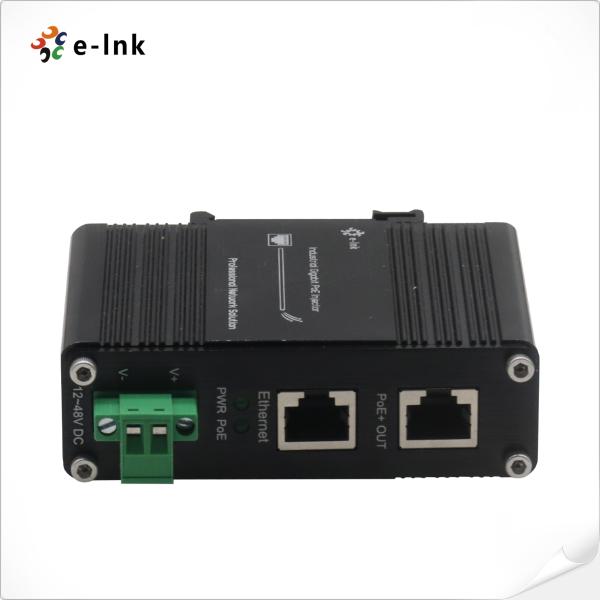

12~48VDC Power Input Industrial Gigabit PoE+ Injector

Advantage

► 12~48VDC Power Input

► 1 RJ45 Ethernet Data Input Port + 1 RJ45 Power Over Ethernet Output Port (Data + Power)

► Support IEEE802.3at Power over Ethernet (PoE+) Power Sourcing Equipment

► Support 10/100/1000Base-TX

► Support DIN-Rail & Wall-mount installation.

► Extensive LED indicators for PoE diagnostics

► Environmentally Hardened -40°C to 80°C (-40°F to 176°F) operating temperature

Overview

The LNK-INJ301 product is a Hardened Gigabit High Power PoE Injector allows you to connect the

IEEE 802.3 af/at PoE device such as camera and access point with a non PoE LAN switch within the

distance of 100m. Both the Ethernet port (to switch) and the PoE Out port (to PoE device) support

10/100/1000Base-T and are compliant with IEEE 802.3ab. The PoE Out port is also compliant with

IEEE 802.3 at.LNK-INJ301 provides an integrated power solution with a wide range voltage of

12~48VDC for high availability applications.


12~48VDC Power Input Industrial Gigabit PoE+ Injector

Technical Indexes

Ethernet

Standards:

IEEE802.3af Power over Ethernet

IEEE802.3at Power over Ethernet

Processing Type:

Forward

Half-duplex, Full-duplex

Forward Filter Rate:

1,488,000pps (1000Mbps)

Cabling:

10/100/1000Base-T: Cat5 or above

Maximum Distance:

Cat5 UTP up to 100m

Connector:

2x RJ45

Environmental

Operating Temperature:

-40°C to 80°C (-40°F to 176°F)

Storage Temperature:

-40°C to 85°C (-40°F to 185°F)

Relative Humidity:

5% to 95% non-condensing

MTBF:

>200,000hrs

Electrical and Mechanical

Input Power:

12~48VDC (Terminal Block)

Power Consumption:

36W Max.

PoE (Power over Ethernet)

Standard:

IEEE802.3af/at

Port:

RJ45

Power Pin Assignment

4/5(+), 7/8(-)

Max. Power per Port:

30W Max per port (Alternative B Mode)

LED Indicators:

Power:

Power Status

PoE:

PoE Status

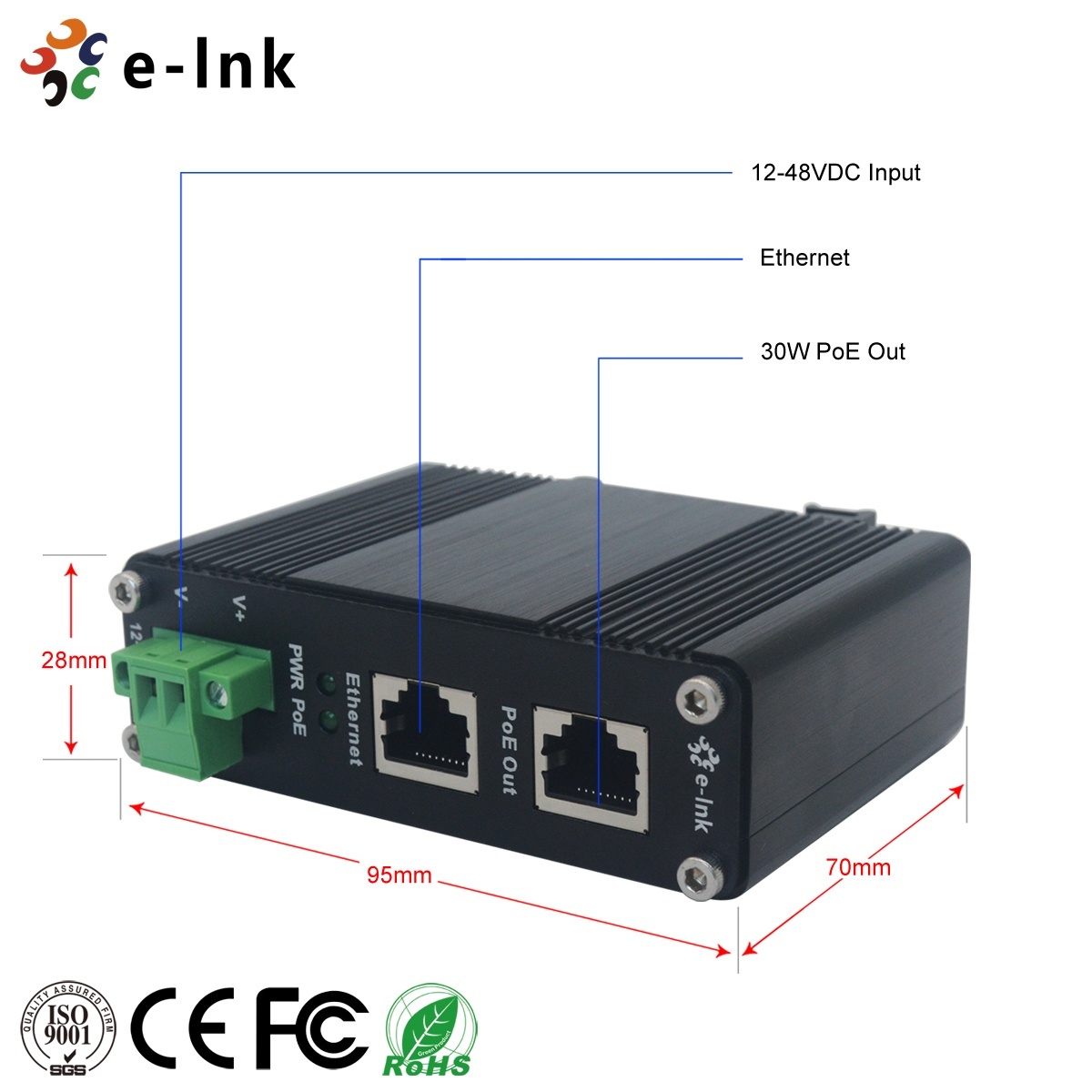

Dimensions (WxDxH):

95 x 70 x 30 mm

Weight:

0.25Kg

Casing:

Aluminum Case

Mounting Options:

DIN-Rail / Wall-mount

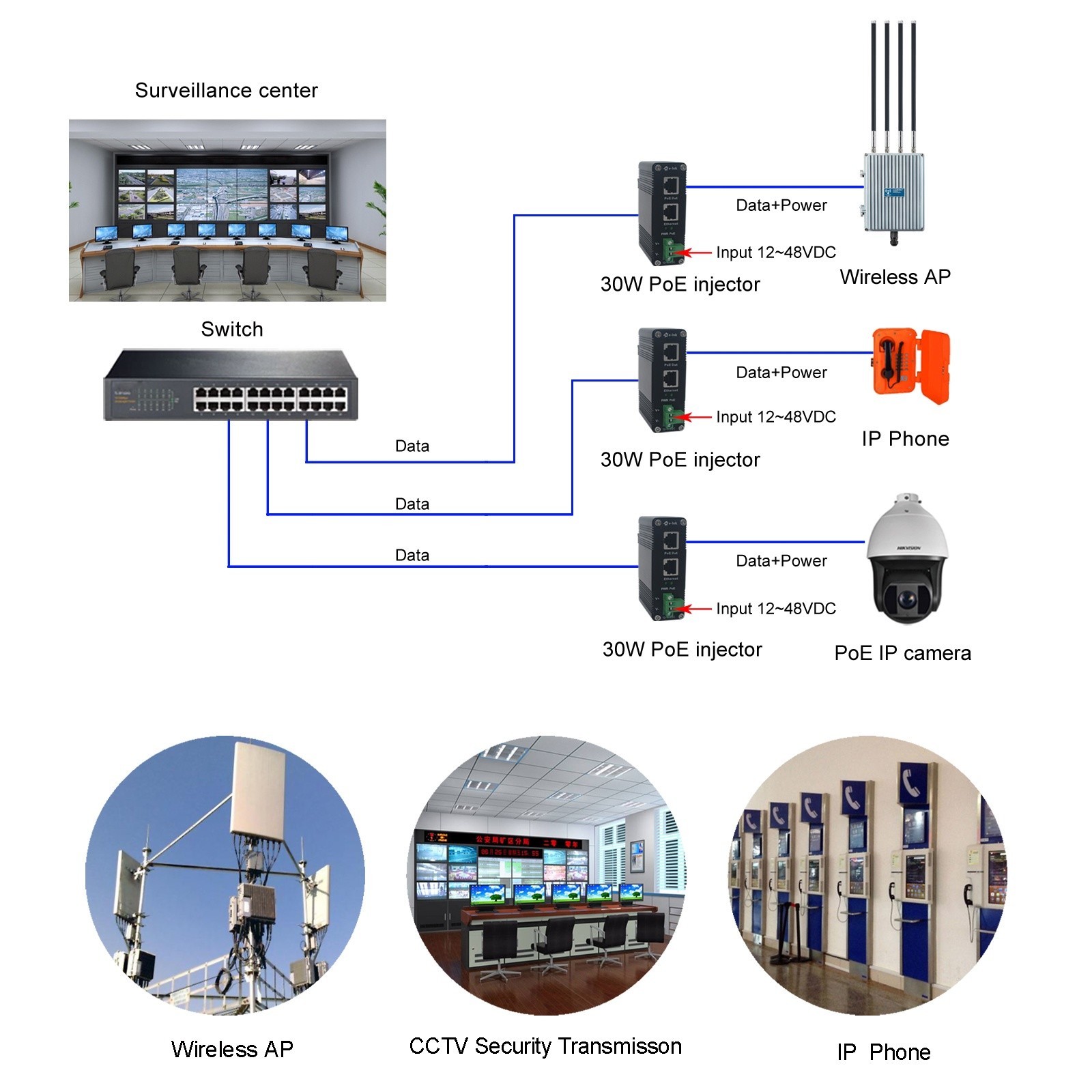

Application

12~48VDC Power Input Industrial Gigabit PoE+ Injector

Ordering Information

Model

Description

LNK-INJ301

12~48VDC Power Input Industrial Gigabit PoE+ Injector

Mounting Options

► Default DIN-Rail Bracket installed; Wall Mount Bracket is included.

Power Options

► Power Supply is to be purchased separately
