Multi-functional 4K 60Hz HDMI KVM Fiber Extender Support HDMI video resolution up to 4096*2160P@60Hz

Name: Multifunctional 4K 60Hz HDMI KVM Fiber Extender Support HDMI video resolution up to 40962160P60Hz
Brand: E-link
Price: 1 USD

Multi-functional 4K 60Hz HDMI KVM Fiber Extender Support HDMI video resolution up to 4096*2160P@60Hz Manufactures

Brand Name : E-link

Model Number : LNK-4KH-1D1U1E1A1R

Certification : Iso9001, CE, ROHS, FCC

Place of Origin : China

MOQ : 1pair

Price : negotiate

Payment Terms : T/T, Western Union, MoneyGram, PayPal

Supply Ability : 100PCS/Month

Delivery Time : 3-5 working days

Packaging Details : HDMI Fiber Extender Standard Carton Packaging

Audio Interface : 3.5mm Audio Interface

Fiber type : MMF or SMF

Power supply : DC 12V/1A

Fiber Interface : SFP Modules Included, LC or SC

Operating Temperature : -25℃ ~ +55℃

Dimension (LxWxH) : 148*115*28mm

Contact Now

Multi-functional 4K 60Hz HDMI KVM Fiber Extender

Model:LNK-4KH-1D1U1E1A1R

Overview

The LNK-4KH-1D1U1E1A1R Fiber optic extender provides extension of HDMI signals long distances over one fiber optic cable, it supports high resolution up to 4K60Hz HDMI, and with KVM, Audio, RS232 or RS485, 10/100M TCP/IP, IR, EDID function. The extender can use for a wide range of applications requiring long distance transmission of high resolution with high quality by its good stability and powerful security.

Features

► Support HDMI video resolution up to 4096*2160P@60Hz

► Supports video resolutions up to 4K2K@50/60Hz with 4:4:4 chromatic sampling

► Complies with HDMI 2.0b, HDCP 2.2, and DVI 1.0 standards

► Support HDMI video loop out

► Support KVM

► Support RS232 or RS485

► Support 10/100M TCP/IP

► Support Bidi IR

► Support DIP Switch with Audio Separation and EDID function

Technical Indexes

Parameter		Description
Transmitter Interfaces	Standards	1 x HDMI 2.0 Input (4K@60Hz) 1 x HDMI 2.0 Loop-out (4K@60Hz) 1 x Audio Input 1 x SFP 1 x RS232/RS485 2 x IR 1 x RJ45(10/100M, TCP/ IP) 1 x USB-B
Receiver Interfaces	Standards	2 x HDMI 2.0 Output (4K@60Hz) 1 x Audio Output 1 x SFP 1 × RS232/RS485 2 × IR 1 x RJ45(10/100M, TCP/ IP) 2 x USB-A
Video Resolution	HDMI	SMPTE:720p\|1080p12160p VESA:800x600\|1024x768\|1280x720\|1280x800\| 1280x960\|1280x1024\|1400x1050\|1600x1200\| 1920x10801920x1200\|2048x1152\|2560x1600\| 3840x1080\|3840x2160\|4096x2160
Video Resolution	Refresh Rate	23.98/24/25/29.97/30/50/59.94/60Hz
Supported Standards	HDMI	1.3,1.4,2.0
Supported Standards	DVI	1.0
Audio	Interface	3.5mm Audio Interface
Audio	Signal type	Operate via DIP switch, Up for HDMI Internal Audio Down for External Audio
KVM	Interface	TX: 1 x USB-B RX: 2 x USB-A
KVM	latency	Minimum latency
RS232/RS485	Interface	Industrial terminal
	Signal direction	RS232 default, RS485 optional
	Baud rate	600~115200bps, 8bit, 1 stop bit, no check.
	Data bits	8
USB-C	Function	Connect PC to check device info, upgrade software and customize resolution
TCP/IP	Interface	RJ45
TCP/IP	Data Rate	10/100Mbps
Fiber	Interface	SFP Modules Included, LC or SC
	Fiber type	MMF or SMF
	Transmission distance	MMF 330M or SMF 20/40/60/80KM
Other	Power supply	DC 12V/1A
	Power dissipation	MAX 10W
	Temperature	Operating: -25℃ ~ +55℃ Storage: -40℃ ~ +85℃
	Humidity	20% ~ 90%
	Weight	1kg
	Dimension (LxWxH)	14811528mm
	The warranty	1-year warranty
	Work Time	7x24 Hours

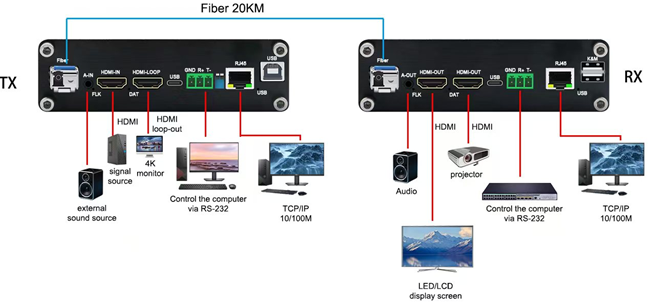

Application

Multi-functional 4K 60Hz HDMI KVM Fiber Extender Support HDMI video resolution up to 4096*2160P@60Hz

Ordering lnformation

Model	Description
LNK-4KH-1D1U1E1A1R	Multifunctional 4K60Hz HDMI Fiber Extender, with KVM, Audio, RS232 or RS485, 10/100M TCP/IP, IR, EDID function, MMF 330M or SMF 20/40/60/80KM, LC or SC.
