L2+ 8-Port 10/100/1000T 802.3at PoE + 2-Port 100/1000X SFP Managed Switch
Advantage
► 8-Port 10/100/1000BASE-T RJ45 copper with IEEE 802.3at/af Power over Ethernet Injector function
► 2-Port 100/1000BASE-X mini-GBIC/SFP
► RJ45 console interface for basic management and setup
► Bandwidth management based on port input and output
► SNMP V1/V2/V3 management
► Support loop protection, automatic recovery
Overview
TS-M308GP-2SFP Layer 2 Managed Gigabit Switch provides 8 10/100/1000BASE-T ports featuring
36-watt 802.3at PoE+, and 2 extra 100/1000BASE-X SFP fiber slots. Each of the eight Gigabit ports
provides 36 watts of power, with a total power budget of up to 250 watts for the different types of PoE
applications being employed. It provides a quick, safe and cost-effective Power over Ethernet network
solution to IP security surveillance for small businesses and enterprises.
Technical Indexes
| Physical Port |
| RJ45 port and speed | 8x10/100/1000Base-TX 802.3at PoE |
| Fiber port and speed | 2x100/1000Base-FX SFP (Dual Mode, Auto Detection) |
| Parameters |
| Ethernet standards | IEEE 802.3 IEEE 802.3u 100BASE-TX IEEE 802.3ab1000BASE-T IEEE 802.3x IEEE 802.3z 1000BASE-X IEEE 802.3af/at IEEE 802.3ad IEEE 802.3q, IEEE 802.3q/p IEEE 802.1w, IEEE 802.1d, IEEE 802.1S STP (Spanning Tree Protocol) RSTP/MSTP(Rapid Spanning Tree Protocol) ERPS ring network protocol |
| Packet buffer | 4Mbits |
| MAC address table | 8K |
| Transmission mode | Store and Forward (full/half duplex mode) |
| Exchange property | Delay time: < 7μs
Backplane bandwidth: 20Gbps |
| PoE |
| PoE Standard | 8x IEEE 802.3af /IEEE 802.3at PoE |
| Power budget | Max. PoE output power budget 30W |
| LED Indicator |
| Power | Connect-always |
| RJ45 | Link/Act: connect-always; Data exchange-twinkle Speed light: 100Mbps-always; 10Mbps-twinkle |
| Fiber | Link/Act: connect-always; Data exchange-twinkle |
| Power Information |
| Power | Built-in power AC 100~240V 50/60Hz MAX Current 5.2A MAX Power 250W |
Application
Ordering Information
| Model | Description |
| TS-M308GP-2SFP | L2+ 8-Port 10/100/1000T 802.3at PoE + 2-Port 100/1000X SFP Managed Switch, total power budget of up to 250 watts |
| Mounting Options | ► Desktop or Rack Mounting Installation |
| SFP Options | ► SFP option. Please select your SFP on our SFP Options Page |
| ► SFP module is to be purchased separately. |
|
|

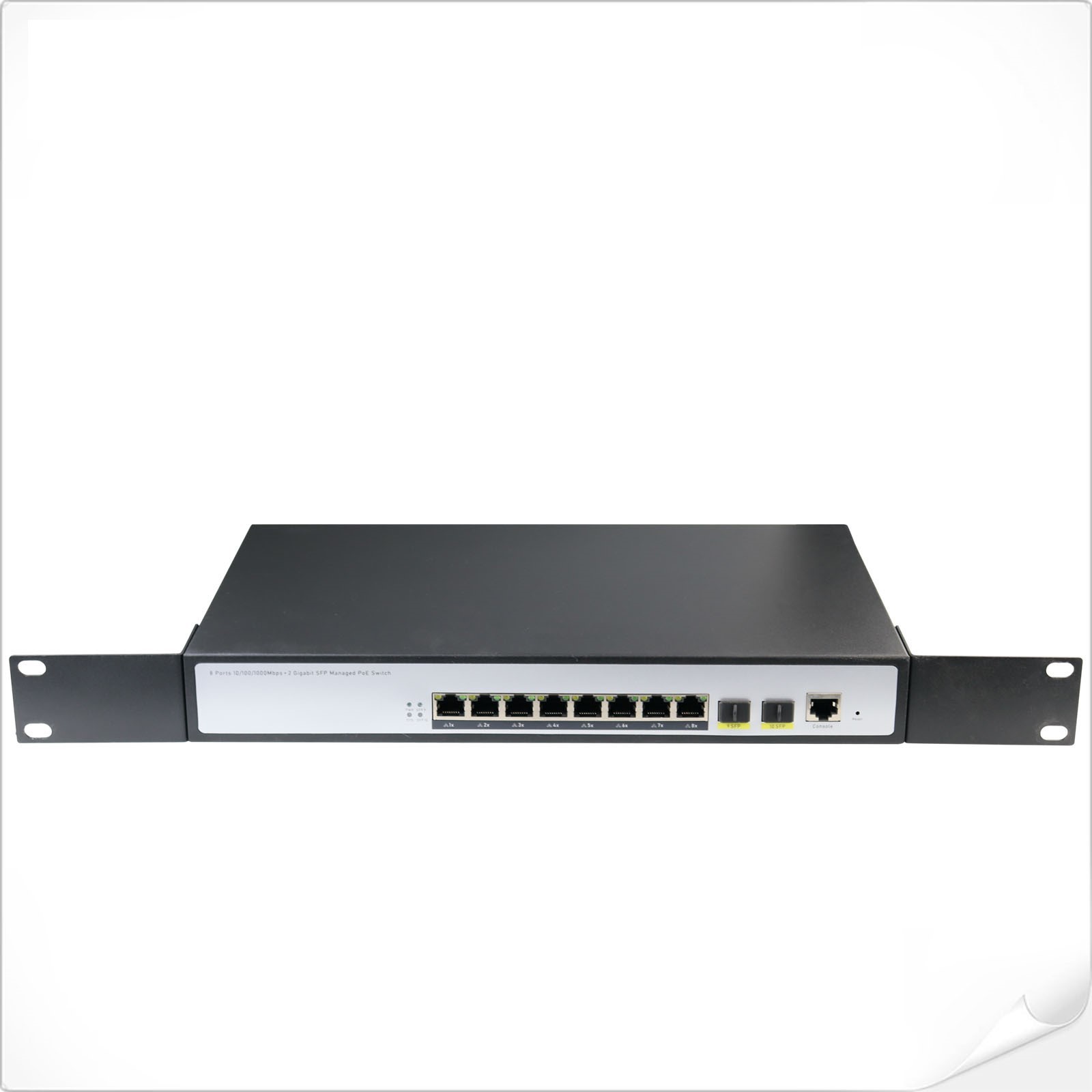

L2+ 8-Port 10/100/1000T 802.3at PoE + 2-Port 100/1000X SFP Managed Switch Images
|
