3G-SDI CWDM 1270~1610nm 40km Digital Video SFP Optical Transceiver (MSA)

Name: 3GSDI CWDM 12701610nm 40km Digital Video SFP Optical Transceiver MSA
Brand: E-link
Price: 1 USD

3G-SDI CWDM 1270~1610nm 40km Digital Video SFP Optical Transceiver (MSA) Manufactures

Brand Name : E-link

Model Number : LNK-CWDM-SFP3G

Certification : CE

Place of Origin : China

MOQ : 1pcs

Price : negotiation

Payment Terms : L/C,T/T,Western Union,MoneyGram,PayPal

Supply Ability : 100000PCS/Month

Delivery Time : 7-10 working days

Packaging Details : Industrial PoE Switch Standard Carton Packaging

Dimensions (LxWxH) : 80 x 40 x 20 (mm)

Operating Temperature : 0°C to 70°C (32°F to 158°F)

Max. Distance : 40 km

Weight : 0.025Kg

Part Number : LNK-CWDM-SFP3G-XX40

Contact Now

3G-SDI CWDM 1270~1610nm 40km Digital Video SFP Optical Transceiver (MSA)

Product Advantages

► SMPTE 297-2006 Compatible Features

► Speed from 50 Mbps to 2.97 Gbps

► Distance up to 40km for 3G-SDI

► Support Video Pathological Patterns for SD-SDI, HD-SDI and 3G-SDI

► 18 Wavelength CWDM DFB Transmitter

► Hot-plug gable SFP footprint

► SFP MSA compliant

► Digital Diagnostic functions available through the I2C interface

► Single +3.3V power supply

► Low Power Consumption

► Operating case temperature: 0 to +70°C

► Ohs compliant and Lead-Free

Technical Indexes

Part Number	LNK-CWDM-SFP3G-XX40
Form Factor	Video SFP Transceiver
Data Rate	3 Gb/s
Wavelength	1270~1610nm
Fiber Type	SMF
Max. Distance	40 km
Optical Components	DFB/PIN
Transmitter Power	-2 ~3 dBm
Extinction Ratio	>6 dB
Receiver Sensitivity	< -20 dBm
Receiver Overload	>-3 dBm
Connector	Duplex LC
Digital Diagnostic Monitoring (DDM)	Support as default
Weight	0.025Kg
Operating Temperature	0°C to 70°C (32°F to 158°F)

Overview

E-link LNK-CWDM-SFP3G-XX40 is high performance, cost-effective 3G-SDI CWDM optical transceiver modules for long reach video transmission application over single mode fiber (SMF). It provides the data rates from 50Mbps to 2.97Gbps and is specifically designed for robust performance in the presence of SDI pathological patterns for SMPTE 259M, SMPTE 344M, SMPTE 292M, and SMPTE 424M serial rates.

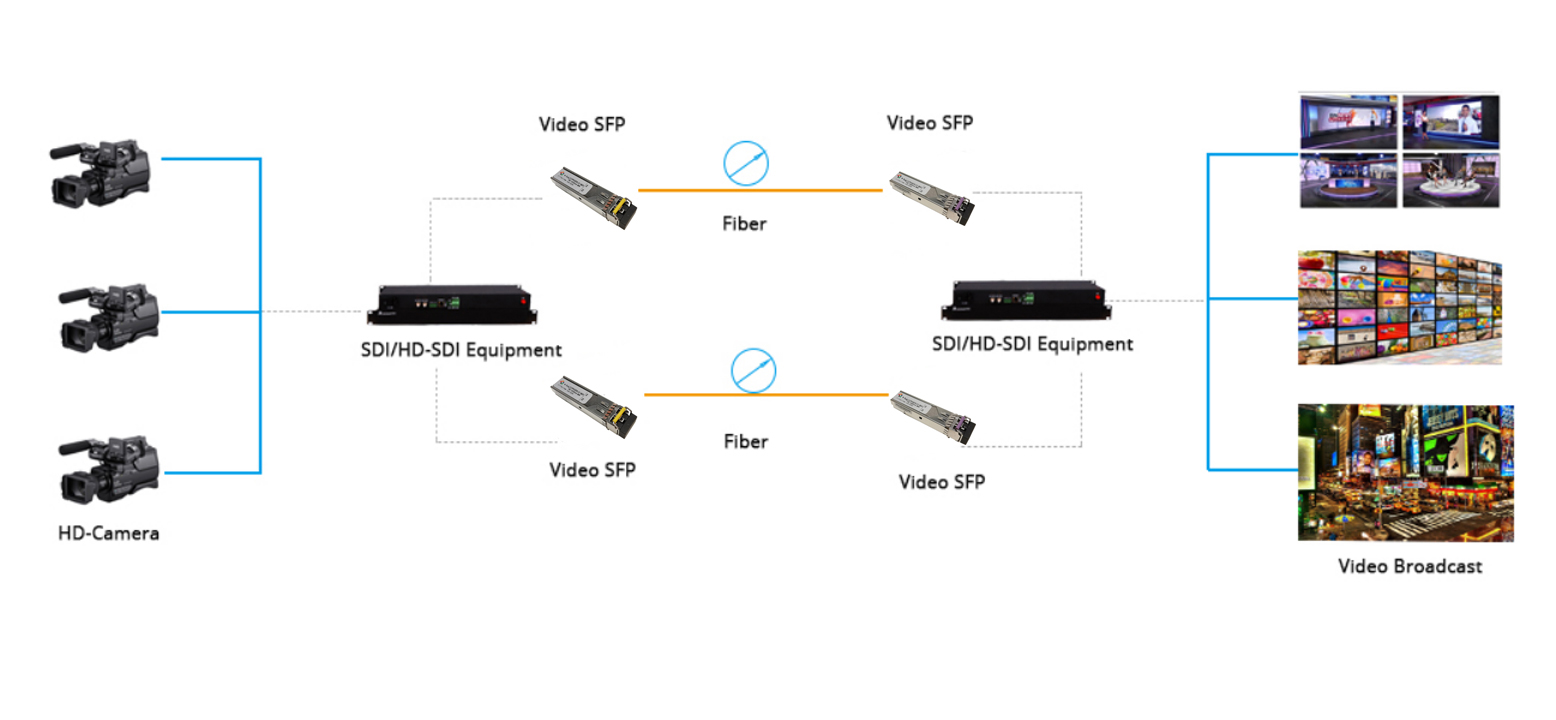

Application

3G-SDI CWDM 1270~1610nm 40km Digital Video SFP Optical Transceiver (MSA)

Ordering Information

Model	Description
LNK-CWDM-SFP3G-2740	3Gb/s SDI CWDM SFP Video Optical Transceiver, 1270nm, 40km, LC, DDMI, MSA
LNK-CWDM-SFP3G-2940	3Gb/s SDI CWDM SFP Video Optical Transceiver, 1290nm, 40km, LC, DDMI, MSA
LNK-CWDM-SFP3G-3140	3Gb/s SDI CWDM SFP Video Optical Transceiver, 1310nm, 40km, LC, DDMI, MSA
LNK-CWDM-SFP3G-3340	3Gb/s SDI CWDM SFP Video Optical Transceiver, 1330nm, 40km, LC, DDMI, MSA
LNK-CWDM-SFP3G-3540	3Gb/s SDI CWDM SFP Video Optical Transceiver, 1350nm, 40km, LC, DDMI, MSA
LNK-CWDM-SFP3G-3740	3Gb/s SDI CWDM SFP Video Optical Transceiver, 1370nm, 40km, LC, DDMI, MSA
LNK-CWDM-SFP3G-3940	3Gb/s SDI CWDM SFP Video Optical Transceiver, 1390nm, 40km, LC, DDMI, MSA
LNK-CWDM-SFP3G-4140	3Gb/s SDI CWDM SFP Video Optical Transceiver, 1410nm, 40km, LC, DDMI, MSA
LNK-CWDM-SFP3G-4340	3Gb/s SDI CWDM SFP Video Optical Transceiver, 1430nm, 40km, LC, DDMI, MSA
LNK-CWDM-SFP3G-4540	3Gb/s SDI CWDM SFP Video Optical Transceiver, 1450nm, 40km, LC, DDMI, MSA
LNK-CWDM-SFP3G-4740	3Gb/s SDI CWDM SFP Video Optical Transceiver, 1470nm, 40km, LC, DDMI, MSA
LNK-CWDM-SFP3G-4940	3Gb/s SDI CWDM SFP Video Optical Transceiver, 1490nm, 40km, LC, DDMI, MSA
LNK-CWDM-SFP3G-5140	3Gb/s SDI CWDM SFP Video Optical Transceiver, 1510nm, 40km, LC, DDMI, MSA
LNK-CWDM-SFP3G-5340	3Gb/s SDI CWDM SFP Video Optical Transceiver, 1530nm, 40km, LC, DDMI, MSA
LNK-CWDM-SFP3G-5540	3Gb/s SDI CWDM SFP Video Optical Transceiver, 1550nm, 40km, LC, DDMI, MSA
LNK-CWDM-SFP3G-5740	3Gb/s SDI CWDM SFP Video Optical Transceiver, 1570nm, 40km, LC, DDMI, MSA
LNK-CWDM-SFP3G-5940	3Gb/s SDI CWDM SFP Video Optical Transceiver, 1590nm, 40km, LC, DDMI, MSA
LNK-CWDM-SFP3G-6140	3Gb/s SDI CWDM SFP Video Optical Transceiver, 1610nm, 40km, LC, DDMI, MSA
