Mini 12G-SDI to Fiber Converter with Tally and RS485
Product Advantages
► Each SDI channel includes 8-channel audio embedded
► Automatic cable equalization to ensure signal integrity
► Supports ST-2082-1(12G), ST-2081-1(6G), ST-424(3G), ST-292(HD) and ST-259(SD)
► Integrated Reclocker Locks to SMPTE Rates of 11.88Gbps, 5.94Gbps, 2.97Gbps, 1.485Gbps or Divide-by-1.001 Subrates and 270 Mbps
► Directly compatible with 12G/6G/3G-SDI camera systems
► Long transmission capability at least 10 km (6.2miles), up to 80 km
Technical Indexes
| Formats | Supports ST-2082-1(12G), ST-2081-1(6G), ST-424(3G), ST-292(HD) And ST-259(SD) |
| Compatible | Compatible with DVB-ASI and AES10 (MADI) |
| Input | 1 x 12G-SDI on BNC |
| Output | 1 x LC optical fiber |
| 1 x 12G-SDI loop-out on BNC |
| Supported Resolution | HDTV 4K*2K, 1080P, 1080I, 720P |
| Resolution range | 3840*2160@60Hz |
| Input cable specification | ≤70m@12G SDI Belden 1694A |
| Output cable specification | ≤70m@12G SDI Belden 1694A |
| Data type | Backward Tally |
| Data type | Backward RS485 |
| Optical transmission bandwidth | 270MHz～12GHz |
| Power | 5-15 VDC |
| Power Consumption | 2 W (Max.) |
| Dimensions (LxWxH) | 80 x 40 x 20 (mm) |
| Storage Temperature | -40℃～80℃ |
| Operating Temperature | -40℃～85℃ |
Overview
LNK-M12G-1V1T1D Series Mini-type 12G-SDI Fiber Converter supports 1Ch 12G Video (audio embedded), 1Ch Tally signal and 1Ch Backward RS485 transmitted via fiber optical cable, and monitor the signal locally over a 12G loop output. E-link 12G Video over Fiber Converters includes one transmitter and one receiver for HDTV 4K*2K(3840*2160@60Hz), 1080P,1080I, 720P.

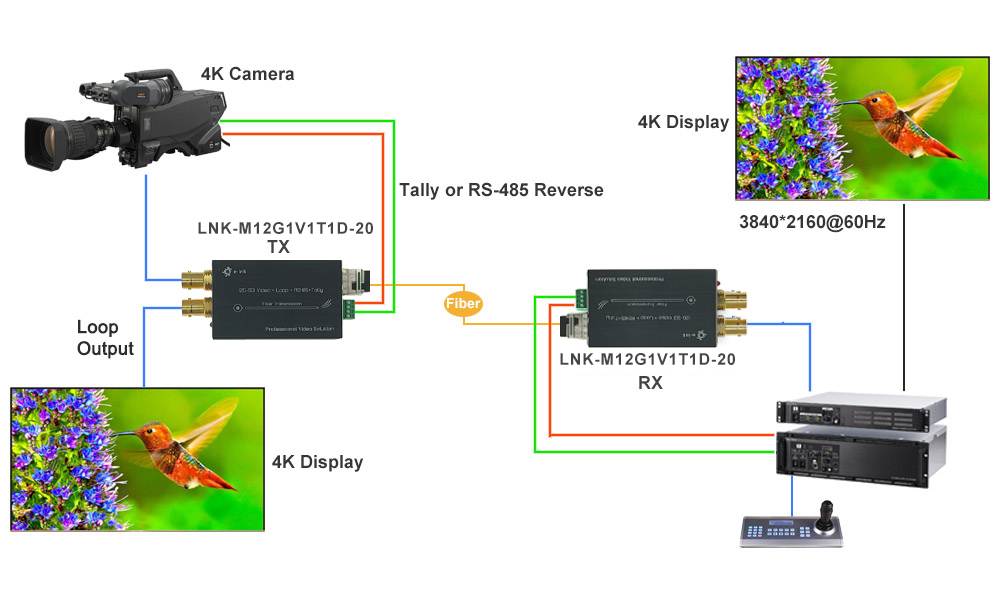

Application
| Model | Description |
| LNK-M12G-1V1T1D-20 | Mini-type 12G-SDI to Fiber Converter with Tally, Reverse RS485 and loop out, SMF, LC Fiber Connector 20KM, including Transmitter and Receiver, used by pairs |
|
|
