Mini Bi-directional HD/3G-SDI to Fiber Converter
Product Advantages
► Each channel includes 4-channel audio embedded;
► Automatic cable equalization, used for all rate below 3.2 Gb/s (Belden 1694A);
► Automatic reclocking 270Mbit/s - 1.48Gbit/s - 3Gbit/s
► Directly compatible with HD-SDI camera systems
► Long transmission capability up to 80 km
► Hot swap and hot plug;
► Handle all Pathological patterns, fully digital non-compression broadcast level transmission;
► LED Status Indication to monitor the working conditions;
Technical Indexes
Fiber Optical interface:
| Fiber interface | simplex LC |
| Transmission distance | 550m-120Km( depend on SFP transceiver) |
| Wavelength | 1310 nm /1550nm(depend on SFP transceiver) |
Video
Ethernet
| Port | 10/100 Base-T, RJ-45 connector |
| Work mode | Full duplex/half duplex |
| Data Rate | 10 Mbps & 100 Mbps Ethernet (Auto Adaptive) |
Power Supply
| Power adaptor | AC 100-240V to DC 5V 2A |
| Power consumption | <3W |
| Dimension Size | 166*28*105MM |
| Shipping weight | 1.1KG/pair |
| (include external power adaptors & package box) |
Environmental
| Working Temperature | -40℃～ +80℃ |
| Storage Temperature | -40℃～ +85℃ |
| Working Humidity | 0~95% |
| MTBF | ≥100000 hours |
Overview
LNK-M3G-BI20 Series Mini-type 3G/HD-SDI Fiber Converter supports 1-Channel Bi-directional 3G/HD-SDI Video (audio embedded) via fiber optical cable. E-link 3G/HD-SDI Video over Fiber Converters includes one transmitter and one receiver for 1080P 3G/HD-SDI signal. Handle all Pathological patterns, fully digital non-compression broadcast level transmission. It’s widely used in security system, video conference, broadcasting and live Events etc.

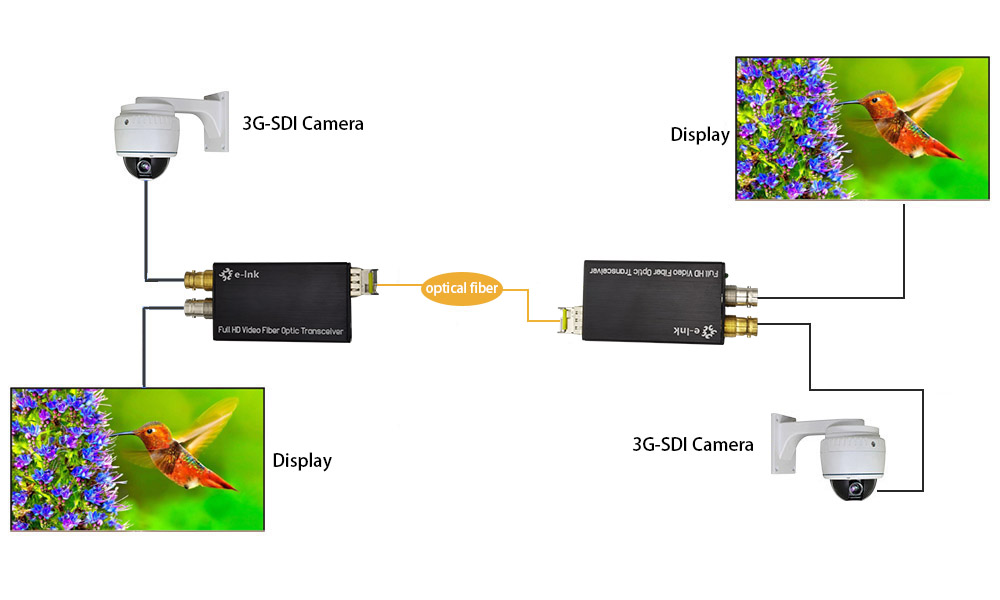

Application
Orderinng Information
| Model | Description |
| LN K-MHD-BIMM | Mini-type Bi-directional HD-SDI to Fiber Converter, MMF, LC Fiber Connector 500 meters, including Transmitter and Receiver, used by pairs |
| LNK-MHD-BI20 | Mini-type Bi-directional HD-SDI to Fiber Converter, SMF, LC Fiber Connector 20KM, including Transmitter and Receiver, used by pairs |
| LNK-MHD-BI40 | Mini-type Bi-directional HD-SDI to Fiber Converter, SMF, LC Fiber Connector 40KM, including Transmitter and Receiver, used by pairs |
|
|

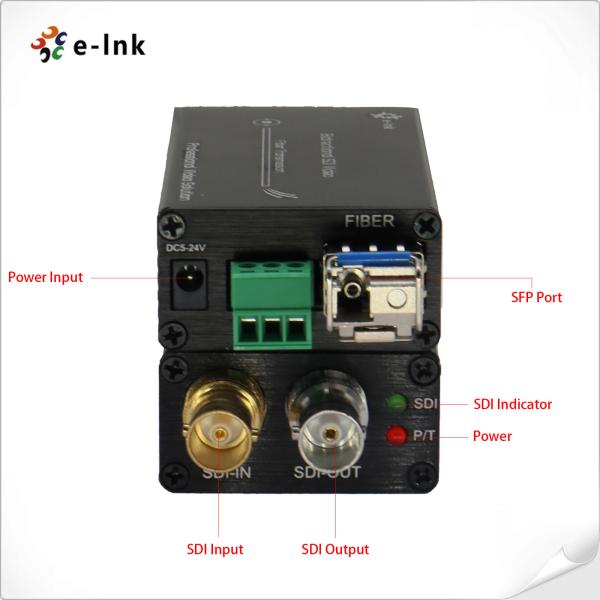

Mini Bi-directional HD/3G-SDI to Fiber Converter Images
|
