Industrial 1-Port 802.3at PoE+ to 4-Port 802.3af/at Gigabit PoE Extender
Industrial 1-Port 802.3at PoE+ to 4-Port 802.3af/at Gigabit PoE Extender Advantages
► 10/100/1000Mbps Ethernet Ports
► 1 RJ-45 PoE/PD + 4 RJ-45 PoE/PSE
► IP40-rated aluminum case
► Can be Powered by IEEE 802.3at 30W Power Sourcing Equipment
► Can Power IEEE 802.3af PoE, IEEE 802.3at Powered Devices
► Extends an additional 100m for PoE network. Daisy chain support connection up to 3 PoE Extenders for a total PoE+ network extension of 400m (1,312 ft.)
► Support DIN-Rail & Wall-mount installation
► Environmentally Hardened -40°C to 80°C (-40°F to 176°F) operating temperature
Industrial 1-Port 802.3at PoE+ to 4-Port 802.3af/at Gigabit PoE Extender Overview
LNK-IPE104-30 is an industrial 1-Port 802.3at PoE+ to 4-Port 802.3af/at Gigabit PoE Extender designed especially for the point to multipoint PoE application. The LNK-IPE104-30 can obtain a maximum of 30-watt PoE power from 802.3at PoE+ input port and supplies a maximum of 25-watt PoE power budget for 4 PoE output ports, extending both the reach of Gigabit Ethernet Data and IEEE 802.3at Power over Ethernet over the standard 100m (328 ft.) Cat. 5/5e/6 UTP cable to 200m where up to 4 powered devices (PDs) can be powered at the same time. The LNK-IPE104-30 provides a simple solution for adding PoE ports without running more cabling and achieves more flexible network applications without requiring an external power adapter.
Industrial 1-Port 802.3at PoE+ to 4-Port 802.3af/at Gigabit PoE Extender Technical Indexes
| Ethernet Port |
| PoE Input Port | 10/100/1000Base-TX RJ45, IEEE 802.3at PoE Input Input Power 50~57V DC, Max 30W |
| PoE Output Port | 1*10/100/1000Base-TX RJ45, IEEE 802.3af/at PoE Output Output Power: Max 25.5W in total, 25.5W@ 101m, 20W@ 200m |
| Cascade connection | Support 3 grade |
| Power over Ethernet |
| PoE Standard | IEEE 802.3af Power over Ethernet IEEE 802.3at Power over Ethernet Plus |
| PoE Power Supply Type | Mid-span and End-span |
| PoE Pin Assignment | 1/2(+), 3/6(-),4/5(+), 7/8(-) |
Industrial 1-Port 802.3at PoE+ to 4-Port 802.3af/at Gigabit PoE Extender ordering information
| Model | Description |
| LNK-IPE104-30 | Industrial 1-Port 802.3at PoE+ to 4-Port 802.3af/at Gigabit PoE Extender |
| Mounting Options | ► Default DIN-Rail Bracket installed; Wall Mount Bracket is included. |
|
|

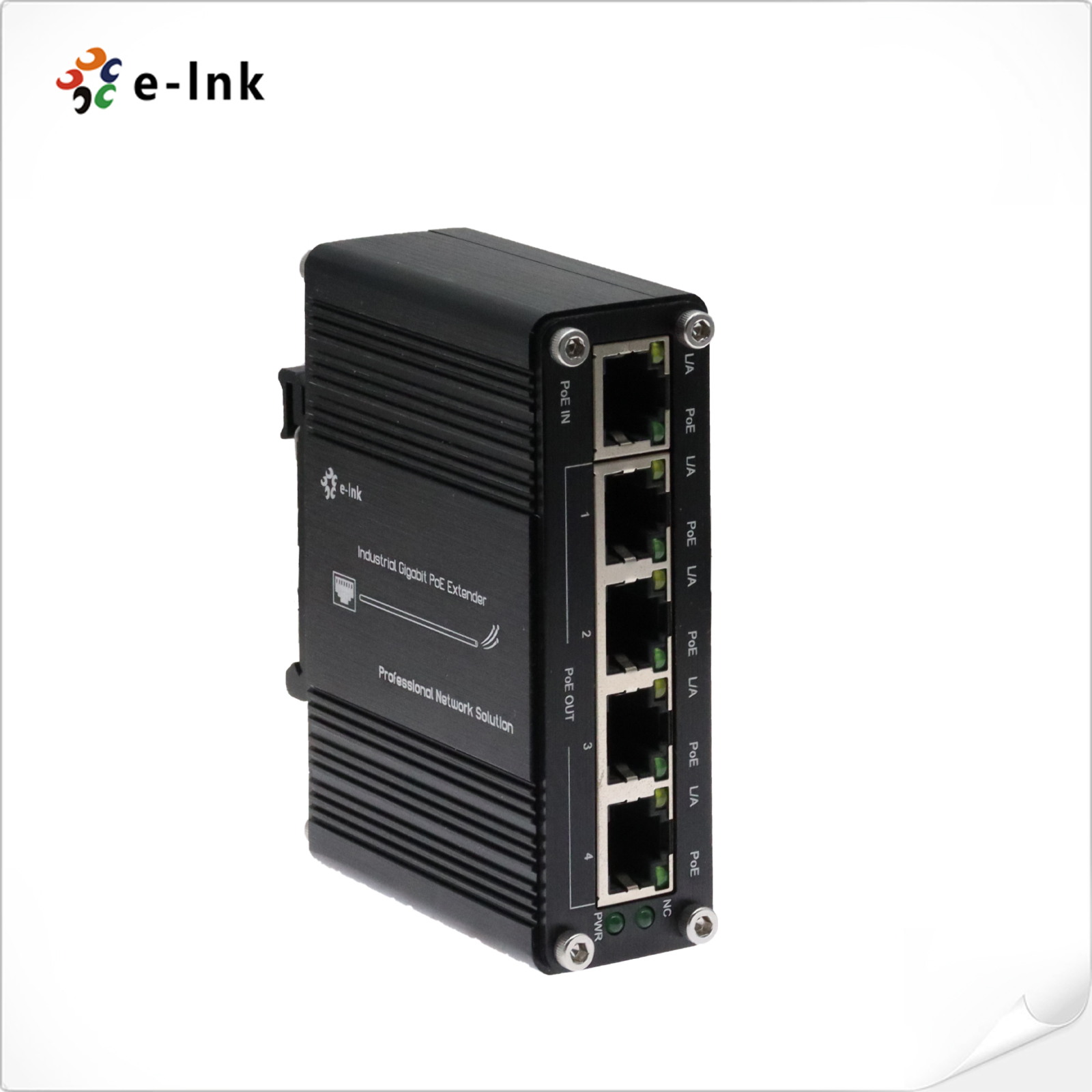

Industrial 1-Port 802.3at PoE+ to 4-Port 802.3af/at Gigabit PoE Extender Images
|
