Industrial 2.5G 95W 802.3bt PoE++ Injector (12~48VDC)
Industrial 2.5G 95W 802.3bt PoE++ Injector (12~48VDC) Advantages
► 1 RJ45 Ethernet Data Input Port + 1 RJ45 Power over Ethernet Output Port (Data + Power)
► Support 95W LTPoE++ Power Sourcing Equipment
► Complies with IEEE 802.3at/bt PoE end-span/mid-span PSE
► Support 10/100/1000/2.5G Base-TX
► Extensive LED indicators for PoE diagnostics
► 12~48V DC wide range power input with power booster function
► Up to 95-watt PoE budget (48VDC), 95-watt PoE budget (24VDC), 60-watt PoE budget (12VDC)
► Supports DIN-Rail and Wall-mount installation
► Environmentally Hardened -40°C to 80°C (-40°F to 176°F) operating temperature
Industrial 2.5G 95W 802.3bt PoE++ Injector (12~48VDC) Overview
The LNK-INJ401-90 product is an Industrial hardened 2.5G single-port PoE+ IEEE 802.3bt / LTPoE++ 95W 10/100/1000/2.5G Base-TX PoE Injector with 12~48V DC Input and Voltage Booster. It allows you to connect the PoE device such as camera and access point with a non PoE LAN switch within the distance of 100m. Both the Ethernet port (to switch) and the PoE Out port (to PoE device) support 10/100/1000/2.5G Base-T and are compliant with IEEE 802.3ab. It provides 95W PoE output.
Industrial 2.5G 95W 802.3bt PoE++ Injector (12~48VDC) Technical Indexes
| Ethernet |
| Standards: | 10/100/1000/2.5G BASE-T Ethernet |
| Processing Type: | Forward |
| | Half-duplex, Full-duplex |
| Forward Filter Rate: | 3,720,000pps (2.5Gbps) |
| Cabling: | 10/100/1000/2.5G BASE-T: CAT6 or above |
| Maximum Distance: | CAT6A UTP up to 100m |
| Connector: | 2x RJ45 |
| Power over Ethernet: |
| Standard: | IEEE 802.3bt 4-pair Power over Ethernet |
| | IEEE 802.3at Power over Ethernet Plus |
| | IEEE 802.3af Power over Ethernet |
| Port: | RJ45 |
| Power Pin Assignment | Data provide over pairs 1,2TX and 3,6RX Power over spare pairs 1,2,4,5(+) and 3,6,7,8(-) |
| PoE Budget: | Up to 95-watt PoE budget (48VDC) Up to 95-watt PoE budget (24VDC) Up to 60-watt PoE budget (12VDC) |
Industrial 2.5G 95W 802.3bt PoE++ Injector (12~48VDC) ordering information
| Model | Description |
| LNK-INJ401-90 | 2.5G Hardened 1-port Ethernet Input + 1-port 95W PoE++ Output Injector with 12~48V DC wide range power input |
| Mounting Options | ► Default DIN-Rail Bracket installed; Wall Mount Bracket is included. |
| Power Options | ► 120W/2.5A 48VDC Power Supply. Open Wire for Terminal Block |
| ► Power Supply is to be purchased separately. |
Product Tags:
|
|

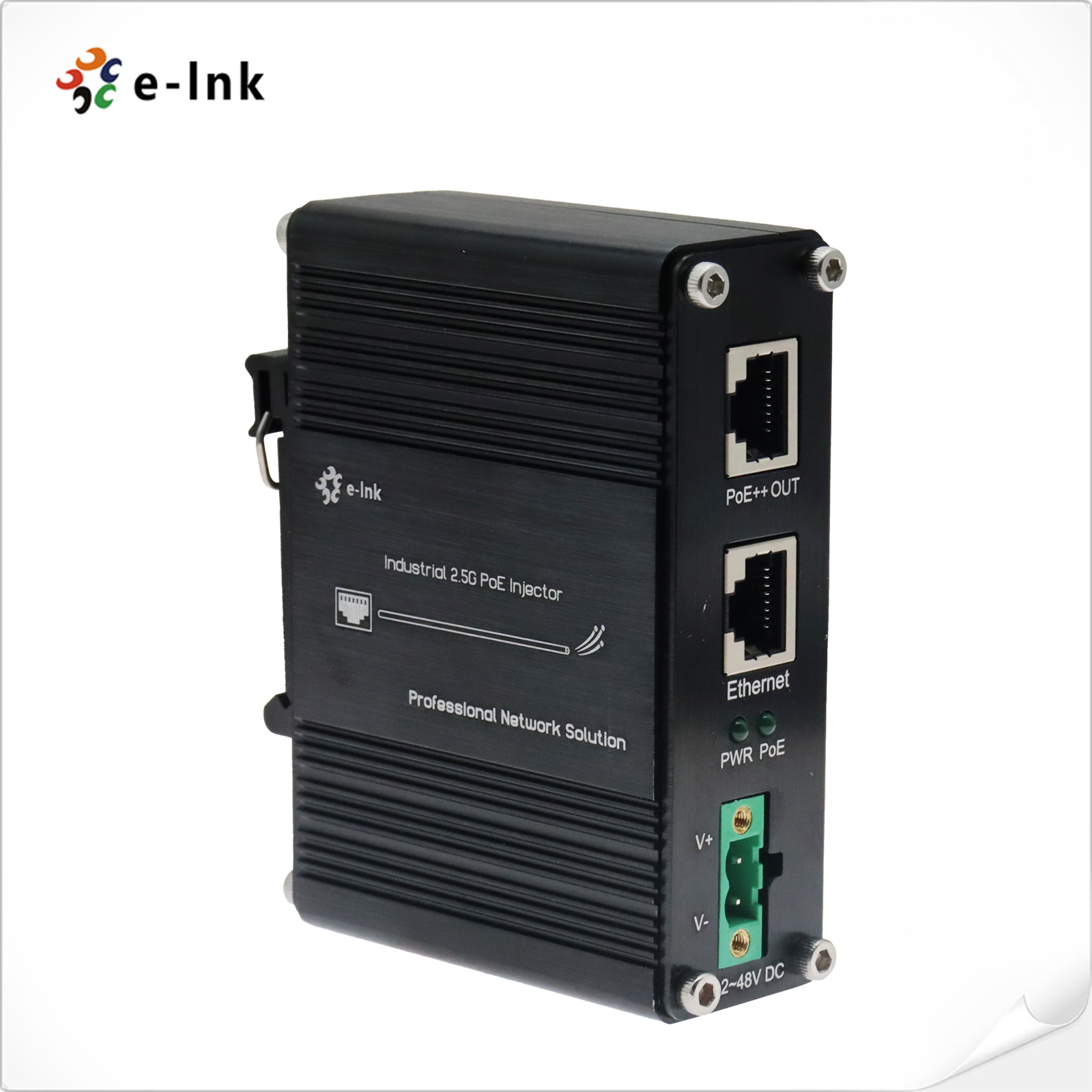

Industrial 2.5G 95W 802.3bt PoE++ Injector (12~48VDC) Images
|
