12G-SDI to Fiber Converter with Gigabit Ethernet and 2Ch Backward RS485

Brand Name : E-link

Model Number : LNK-12GSDI-1V2R1GE

Certification : CE

Place of Origin : China

MOQ : 1pcs

Price : negotiation

Payment Terms : L/C,T/T,Western Union,MoneyGram,PayPal

Supply Ability : 100000PCS/Month

Delivery Time : 7-10 working days

Packaging Details : Industrial PoE Switch Standard Carton Packaging

Operating Temperature : -10℃～70℃

Dimensions (LxWxH) : 117 x 80 x 24 (mm)

Formats : Supports ST-2082-1(12G), ST-2081-1(6G), ST-424(3G), ST-292(HD) And ST-259(SD)

Data type : 2Ch Backward RS485

Power : 12 VDC

Contact Now

12G-SDI to Fiber Converter with Gigabit Ethernet and 2Ch Backward RS485

Product Advantages

► Each SDI channel includes 8-channel audio embedded

► Automatic cable equalization to ensure signal integrity

► Supports ST-2082-1(12G), ST-2081-1(6G), ST-424(3G), ST-292(HD) and ST-259(SD)

► Integrated Reclocker Locks to SMPTE Rates of 11.88Gbps, 5.94Gbps, 2.97Gbps, 1.485Gbps or Divide-by-1.001 Subrates and 270 Mbps

► Directly compatible with 12G/6G/3G-SDI camera systems

► Long transmission capability up to 80 km

Technical Indexes

Formats

Supports ST-2082-1(12G), ST-2081-1(6G), ST-424(3G), ST-292(HD) And ST-259(SD)

Compatible

Compatible With DVB-ASI and AES10 (MADI)

Input

1 x 12G-SDI on BNC

Output

2 x FC optical fiber

1 x 12G-SDI loop-out on BNC

Supported Resolution

HDTV 4K*2K, 1080P, 1080I, 720P

Resolution range

3840*2160@60Hz

Input cable specification

≤70m@12G SDI Belden 1694A


Output cable specification

≤60m@12G SDI Belden 1694A

Ethernet

10/100/1000Mbps

Data type

2Ch Backward RS485

Optical transmission bandwidth

270MHz～12GHz

Power

12 VDC

Power Consumption

6 W (Max.)

Dimensions (LxWxH)

117 x 80 x 24 (mm)

Operating Temperature

-10℃～70℃

Storage Temperature

-40℃～85℃

Overview

LNK-12GSDI-1V2R1GE Series 12G-SDI Fiber Converter supports 1Ch 12G Video (audio embedded) &1Ch Gigabit Ethernet&2Ch Backward RS485 transmitted via fiber optical cable, and monitor the signal locally over a 12G loop output. E-link 12G Video over Fiber Converters includes one transmitter and one receiver for HDTV 4K*2K(3840*2160@60Hz), 1080P,1080I, 720P.

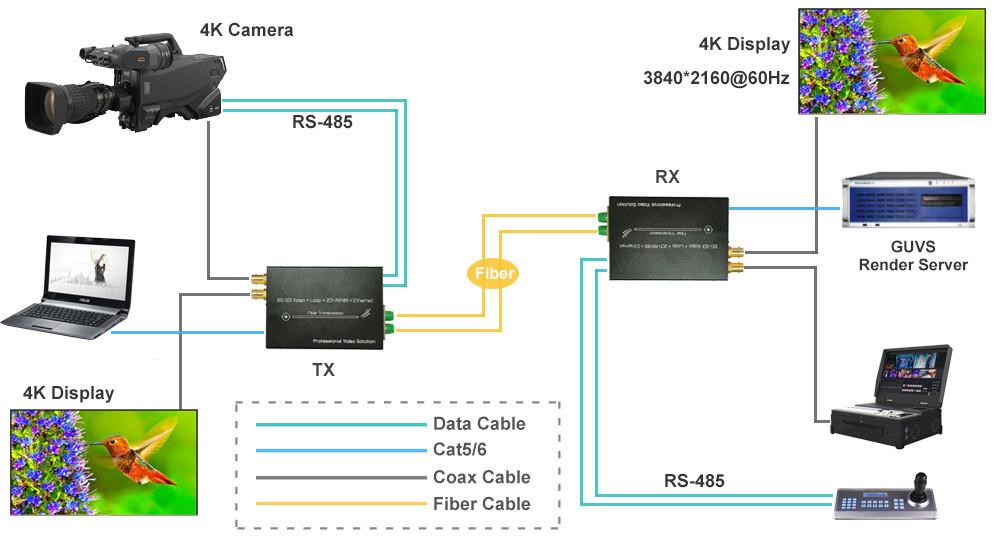

Application

12G-SDI to Fiber Converter with Gigabit Ethernet and 2Ch Backward RS485
