8Ch Gigabit PoE + 6Ch Forward 3G-SDI + 2Ch Backward 3G-SDI Fiber Optic Extender
Product Advantages
► 8Ch Gigabit PoE + 6Ch Forward 3G-SDI + 2Ch Backward 3G-SDI over Single Fiber
► Compatible with 3G-SDI, HD-SDI, SD-SDI, DVB-AST
► Bandwidth range from 19.4Mb/s to 2.97Gb/s
► SMPTE 424M (2.97Gb/s) clock recovery
► Support all popular standards for digital video transport such as SMPTE 424M, SMPTE 292M, and SMPTE 259M, SMPTE 297M working at 3G-SDI, HD-SDI, SD-SDI, ASI respectively
Technical Indexes
| Fiber Optical interface |
| Fiber interface | Simplex LC |
| Transmission distance | 20Km |
| Wavelength | 1310nm/1550nm |
| Video |
| Video interface | BNC |
| Video input/output impedance | 75Ω |
| Video input/output voltage | Typical:1Vpp, Min 0.5Vpp, Max 1.5Vpp |
| Video Bits Rate | Max 3.2Gb/s |
| Differential gain (10%～90% APL) | <1% |
| Video SDI standard | 270Mbps (SD-SDI), 1.485Gbps/M(HD-SDI) |
| SMPTE425M3Gb/s Mapping(3G-SDI) |
| SMPTE424M 3Gb/s serial interface(3G-SDI) |
| Video Input | 6 Channel 3G-SDI |
| Electrical |
| Power Input | 200VAC to 240VAC |
| Power consumption | <15W |
| Mechanical |
| Size | 19” 2U Rack |
| Weight | 11.5KG/pair |
| Casing | Metal Case |
| Mounting Options | Rack-mount |
| Environmental |
| Working Temperature | -20℃～+70℃ |
| Storage Temperature | -40℃～+80℃ |
| Working Humidity | 0~95% |
Overview
LNK-3GSDI-6FV2BV8GP supports 8Ch Gigabit PoE + 6Ch Forward 3G-SDI + 2Ch Backward 3G-SDI over single fiber transmission. It offers the digital transmission of fully uncompressed SDI (270Mbps), HD-SDI (1.485Gbps), 3G-SDI(2.97Gbps) by single fiber over broadcast quality. The 8 POE ports meet 802.3af / 802.3at standard with 10/100/1000M Ethernet. The network provides a seamless connection, and the PoE power port can automatically detect and power the powered devices that comply with the IEEE802.3af / IEEE802.3at standards. The non-POE device intelligently detects no power and only transmits data.

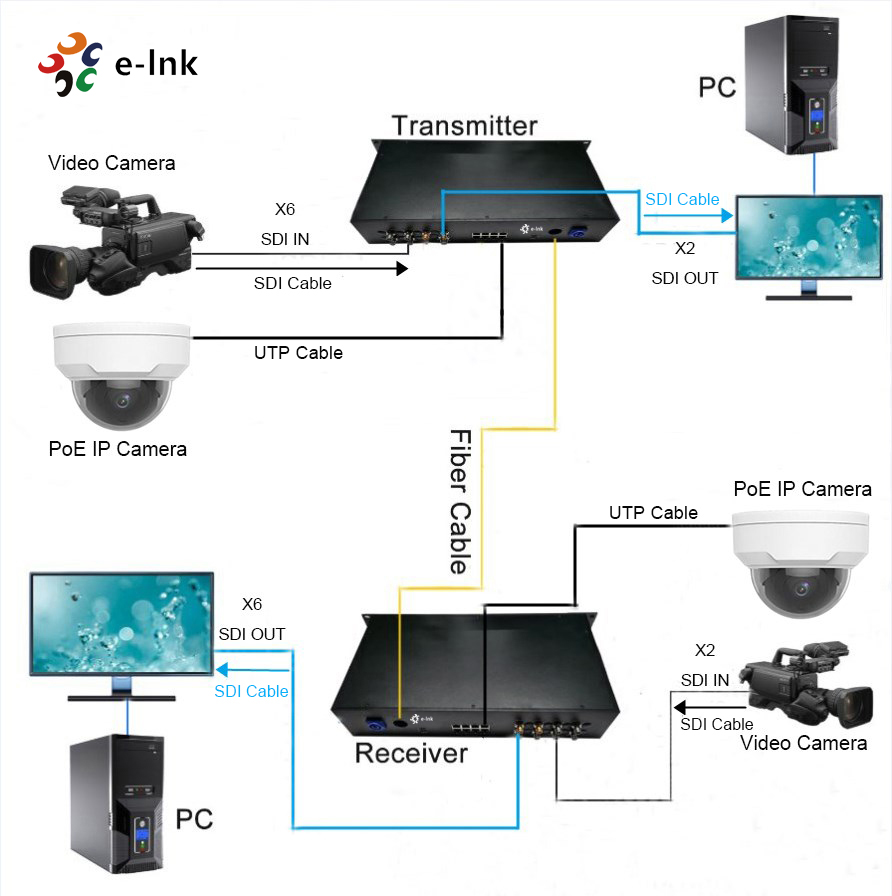

Application
| Model | Description |
| LNK-3GSDI-6FV2BV8GP | 8Ch Gigabit PoE + 6Ch Forward 3G-SDI + 2Ch Backward 3G-SDI Fiber Optic Extender, Single Mode, Singel Fiber, 20KM, 19” 2U rack mount |
