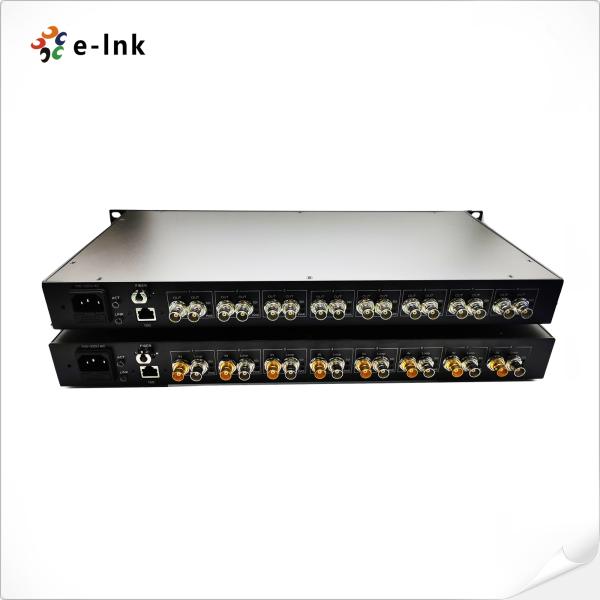

8Ch 3G-SDI + 1Ch 10G Ethernet over Fiber Extender
Product Advantages
► 8Ch 3G-SDI/ASI video with embedded audio and 10G Ethernet over one fiber
► Compatible with HD-SDI, SD-SDI, DVB-AST
► Bandwidth range from 19.4Mb/s to 2.97Gb/s
► SMPTE 424M (2.97Gb/s) clock recovery
► Support all popular standards for digital video transport such as SMPTE 424M, SMPTE 292M, and SMPTE 259M, SMPTE 297M working at 3G-SDI, HD-SDI, SD-SDI, ASI respectively
► Built-in CWDM system, SFP modules for each path
► Support automatic cable equalization based on the data rate detected
► LED status indicators monitor the critical parameters
Technical Indexes
| Fiber Optical interface |
| Fiber interface | Simplex LC |
| Transmission distance | 20Km |
| Wavelength | 1310nm/1550nm |
| Video |
| Video interface | BNC |
| Video input/output impedance | 75Ω |
| Video input/output voltage | Typical:1Vpp, Min 0.5Vpp, Max 1.5Vpp |
| Video Bits Rate | Max 3.2Gb/s |
| Differential gain (10%～90% APL) | <1% |
| Video Input | 8 Channel with Loop Out on TX |
| Video Output | 8 Channel with Loop Out on RX |
| Ethernet |
| Interface | 1 x 10G/5G/2.5G/1G/100BASE-T RJ45 |
| Working mode | Auto-negotiation by default |
| Electrical |
| Power Input | 100VAC to 220VAC |
| Power consumption | <12W |
| Mechanical |
| Dimensions (LxWxH) | 483 x 270 x 45mm (19inch 1U) |
| Weight | 8KG/pair |
| Casing | Metal Case |
| Mounting Options | Rack-mount |
| Environmental |
| Working Temperature | -20℃～+70℃ |
| Storage Temperature | -40℃～+80℃ |
| Working Humidity | 0~95% |
| MTBF | ≥100000 hours |
Overview
E-link LNK-3G8V10GE 3G-SDI & Ethernet fiber extender provides transmission of one 3G-SDI channel with 10G Ethernet IP channels over single mode optical cables. This SDI and IP to optical fiber converter enables high optical performance and brilliant HD video processing in real time. IP interfaces can dramatically increase scalability and compatibility with all modern high-end networking systems.
Application
Ordering Information
| Model | Description |
| LNK-3G8V10GE | 8Ch 3G-SDI Fiber Converter with 10G Ethernet and loop out, SMF, LC Fiber Connector 20KM, including Transmitter and Receiver, used by pairs |
