1Ch BIDI 3G-SDI Video + 2Ch Backward Analog Audio + 1Ch BIDI RS422 + 1Ch 100M Ethernet + 1Ch Backward Tally + 1Ch Backward Analog Tri-level Sync over Fiber Extender
Product Advantages
► 1Ch BIDI 3G-SDI Video + 2Ch Backward Analog Audio + 1Ch BIDI RS422 + 1Ch 100M Ethernet + 1Ch Backward Tally + 1Ch Backward Analog Tri-level Syn over one fiber
► Compatible with HD-SDI, SD-SDI, DVB-AST
► Bandwidth range from 19.4Mb/s to 2.97Gb/s
► SMPTE 424M (2.97Gb/s) clock recovery
► Support all popular standards for digital video transport such as SMPTE 424M, SMPTE 292M, and SMPTE 259M, SMPTE 297M working at 3G-SDI, HD-SDI, SD-SDI, ASI respectively
► Built-in CWDM system, SFP modules for each path
► Support automatic cable equalization based on the data rate detected
► LED status indicators monitor the critical parameters
Technical Indexes
| Fiber Optical interface |
| Fiber interface | Simplex LC |
| Transmission distance | 20Km |
| Wavelength | 1310nm/1490nm//1550nm |
| Ethernet |
| Standards | IEEE 802.3 10Base-T IEEE 802.3u 100BASE-TX IEEE 802.3x full-duplex flow control |
| Interface | 1 x 10/100BASE-TX RJ45 |
| Working mode | Auto-negotiation by default |
| Electrical |
| Power Input | DC12V 1A |
| Power consumption | <6W |
| LED Indicator |
| PWR | Power Supply |
| SDI 1~8 | 3G-SDI Signal |
| ACT | RJ45 Ethernet Signal |
| LINK | Link Status |
| Mechanical |
| Dimensions (LxWxH) | 85 x 70 x 30mm |
| Weight | 1.1KG/pair |
| Casing | Aluminum Case |
| Mounting Options | Wall-mount or Desktop |
| Environmental |
| Working Temperature | -20℃～+70℃ |
| Storage Temperature | -40℃～+80℃ |
| Working Humidity | 0~95% |
| MTBF | ≥100000 hours |
Overview
E-link LNK-3G2V2BA2D1E1T1S 3G-SDI fiber extender provides transmission of 1Ch BIDI 3G-SDI Video, 2Ch Backward Analog Audio, 1Ch BIDI RS422, 1Ch 100M Ethernet, 1Ch Backward Tally and 1Ch Backward Analog Tri-level Sync over Fiber Converter, including 1 transmitter & 1 receiver, used by pairs over single mode optical cables. This 3G-SDI optical fiber converter enables high optical performance and brilliant HD video processing in real time. IP interfaces can dramatically increase scalability and compatibility with all modern high-end networking systems.

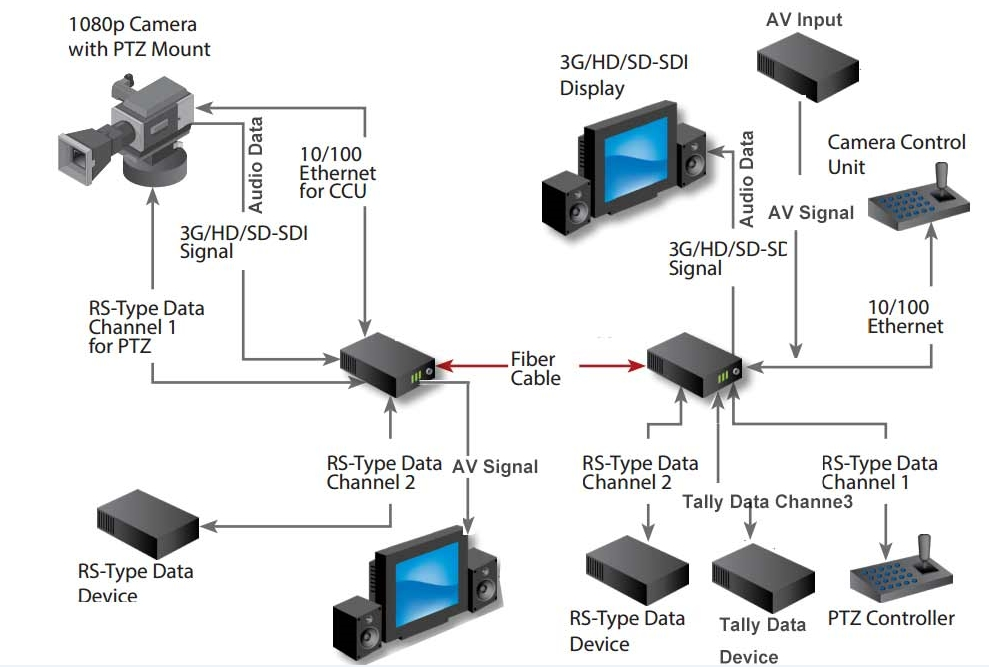

Application
· EFP (Electronic Field Production)
· Remote OB Van/Truck Video Feeds
· Broadcast Studio Camera Feeds
· Long-haul Signal Transport
· TV station/video conference
· Lecture Hall Projector Connectivity
· Medical/Surgical Room Broadcast
· Building to Building video conference calling
· Small corporate campus video links
| Model | Description |
| LNK-3G2V2BA2D1E1T1S | 1Ch BIDI 3G-SDI Video + 2Ch Backward Analog Audio + 1Ch BIDI RS422 + 1Ch 100M Ethernet + 1Ch Backward Tally + 1Ch Backward Analog Tri-level Sync over Fiber Converter, SMF, LC, 20KM, including 1 transmitter & 1 receiver, used by pairs |
|
|
