16G + 2SFP Unmanaged PoE Switch with PoE+
Product Advantages
· Supply power to 5 classes Ethernet wireless access point (AP) and network surveillance cameras (PoE)
· Port1 to Port16 compatible with IEEE802.3at standard power Supply (Maximum power of each port is 25.5W)
· 16x 10/100 /1000Mbps automatic adjustment RJ45 PoE ports, 2x 1000Mbps SFP fiber uplink ports
· Meets the standards of the IEEE 802.3at/ IEEE 802.3 10i and IEEE 802.3u/IEEE 802.3x standard
· The packet forwarding speed of the wire-speed port is 1.488Mbps
· Network port has lighting-proof function (AC power port: differential mode +/-2kV, common mode +/-4kV)
· All ports support wire-speed switching, frame size within the range of 64 to 1536 can achieve wire-speed
Technical Indexes
| Product Name | 16G + 2SFP PoE Switch with 16 Gigabit PoE Ports 25.5W |
| Model | LNK-2016GP-SFP |
| Connector Type | 16x 10/100/1000M copper cable RJ45 ports(all ports support MDI/MDIX) + 2x 1000M SFP ports |
| Network Medium | 10BASE-T: Cat3,4,5 UTP(≤100 meters); 100BASE-TX: Cat5 or later UTP(≤100 meters); 1000BASE-TX: Cat5 or later UTP(≤100 meters); |
| Performance Specifications | Backplane Bandwidth: 52Gbps Network Delay: less than 20 microsecond Packet Buffer: 96KB Address Database: 8K MTBF: 190,000 hours (about 21 years) |
| PoE Description | IEEE 802.3at, each port power is 25.5W; Port1 to Port16 support PoE power; |
| PoE Power | IEEE802.3at standard, each port power is 25.5W, total power is 440W |
| Network Protocols | IEEE 802.3i 10BASET; IEEE 802.3u 100BASETX; IEEE 802.3x Flow Control; IEEE 802.3at |
| LED Indicator Status | Power, Network, PoE working status |
| Power Input | AC 100-240V, 50/60HZ input |
| Dimension | Dimension (LxWxH): 440 x 275 x 44.5mm |
| PoE Ports | 16 ports support PoE |
| PoE Port Power | 25.5W per PoE port, |
| PoE Standard | IEEE 802.3at |
| Working Environment | Operating Temperature: -20 ° ~ 55 ° C; Storage Temperature: -40 ° ~ 75 ° C; Humidity: 10% ~ 90%, non-condensing; Storage Humidity: 10% ~ 95%, non-condensing; Working Altitude: 3000 m (10,000 ft); Storage Altitude: 3,000 m (10,000 ft) |
| Certification | CE mark, commercial FCC Part 15 Class B VCCI Class B EN 55022 (CISPR 22), Class B |
| Transmission Distance | Depend on SFP Modules |
| Warranty | 1 Year Warranty, Life-time Maintenance |
Overview
LNK-2016GP-SFP (16G + 2SFP) PoE Switch provide fast connection to servers or the backplane of the Gigabit speed. It features with PoE (Power Over Ethernet) function through different power levels of PoE power supply, that is it can supply the 48V DC power to the PD remote devices (e.g. IP Phone, WLAN AP, Security, Bluetooth AP etc.) via a network cable, in order that realizing the power supply for remote PD devices. As the power supply PSE (Power Sourcing Equipment) side device, which supports the standard IEEE802.3at power standard and single-port power is 25.5W.
Application
Ordering Information
| Model | Description |
| LNK-2016GP-SFP | 16G + 2SFP Unmanaged PoE Switch with PoE+, port1 to port16 supports POE IEEE 802.3at international standard, each port power is 25.5W, the total power is 440W |
|
|

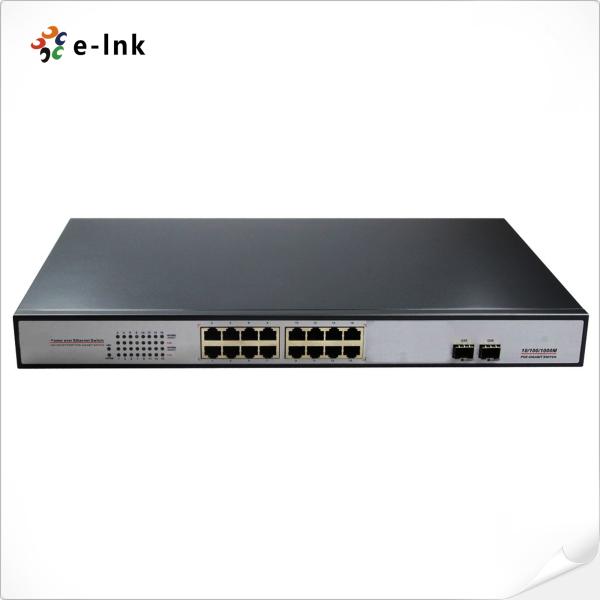

16G + 2SFP Unmanaged PoE Switch with PoE+ Images
|
