Mini Industrial 8-Port 10/100/1000T 802.3at PoE + 2-Port 10/100/1000T Compact Ethernet Switch

Mini Industrial 8-Port 10/100/1000T 802.3at PoE + 2-Port 10/100/1000T Compact Ethernet Switch

Advantages

► 10 10/100/1000BASE-T Gigabit Ethernet RJ45 copper ports

► Up to 8 ports of IEEE 802.3af/at devices powered

► Up to 240-watt PoE budget

► 12~48V DC redundant power with reverse polarity protection

► Supports 802.3x Flow control

► Complies with IEEE 802.3az Energy Efficient Ethernet (EEE)

► Supports DIN-Rail installation

► Industry standard design, dustproof and close design IP40, rugged high-strength metal case

► -40°C to 80°C (-40°F to 176°F) operating temperature

Overview

The LNK-IMC010GPB is the mini Compact Industrial 8-Port 10/100/1000T 802.3at PoE + 2-Port 10/100/1000T Ethernet Switch and is specially designed to be installed in a narrow environment. It provides up to 240-watt 802.3at PoE+ output capability and wire-speed Gigabit performance even in the harsh industrial environment. With 8 x 10/100/1000BASE-T ports featuring IEEE 802.3at PoE+ and 2 x 10/100/1000BASE-T RJ45 copper interface for uplink connection. The power system of the LNK-IMC010GPB supports 12~48V DC power input for power redundancy and operational flexibility. It comes with a total power budget of up to 240 watts for different kinds of PoE applications and operating temperature ranging from -40 to 80 degrees C in a rugged IP40 metal housing.

Complying with the IEEE 802.3at Power over Ethernet Plus technology, the LNK-IMC010GPB provides up to 30 watts of PoE output power to allow users to flexibly deploy standard and high powered devices simultaneously with no need of software configuration.

With the IP40 industrial metal case, the LNK-IMC010GPB provides a high level of immunity against electromagnetic interference and heavy electrical surges which are usually found on plant floors or in curb-side traffic control cabinets without air conditioning. It features a ventilated construction in which a cooling fan is not necessary, thereby making its operation noiseless. Being able to operate under the temperature range from -40 to 80 degrees C, the LNK-IMC010GPB can be placed in almost any difficult environment.

.

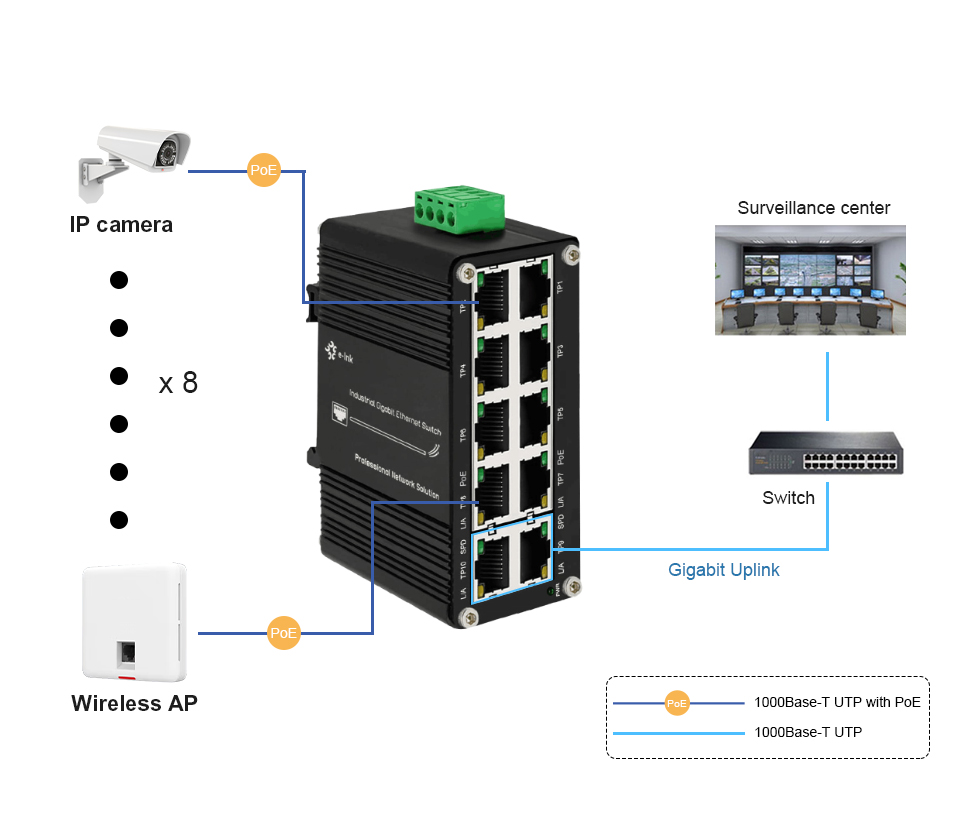

Application

Ordering Information

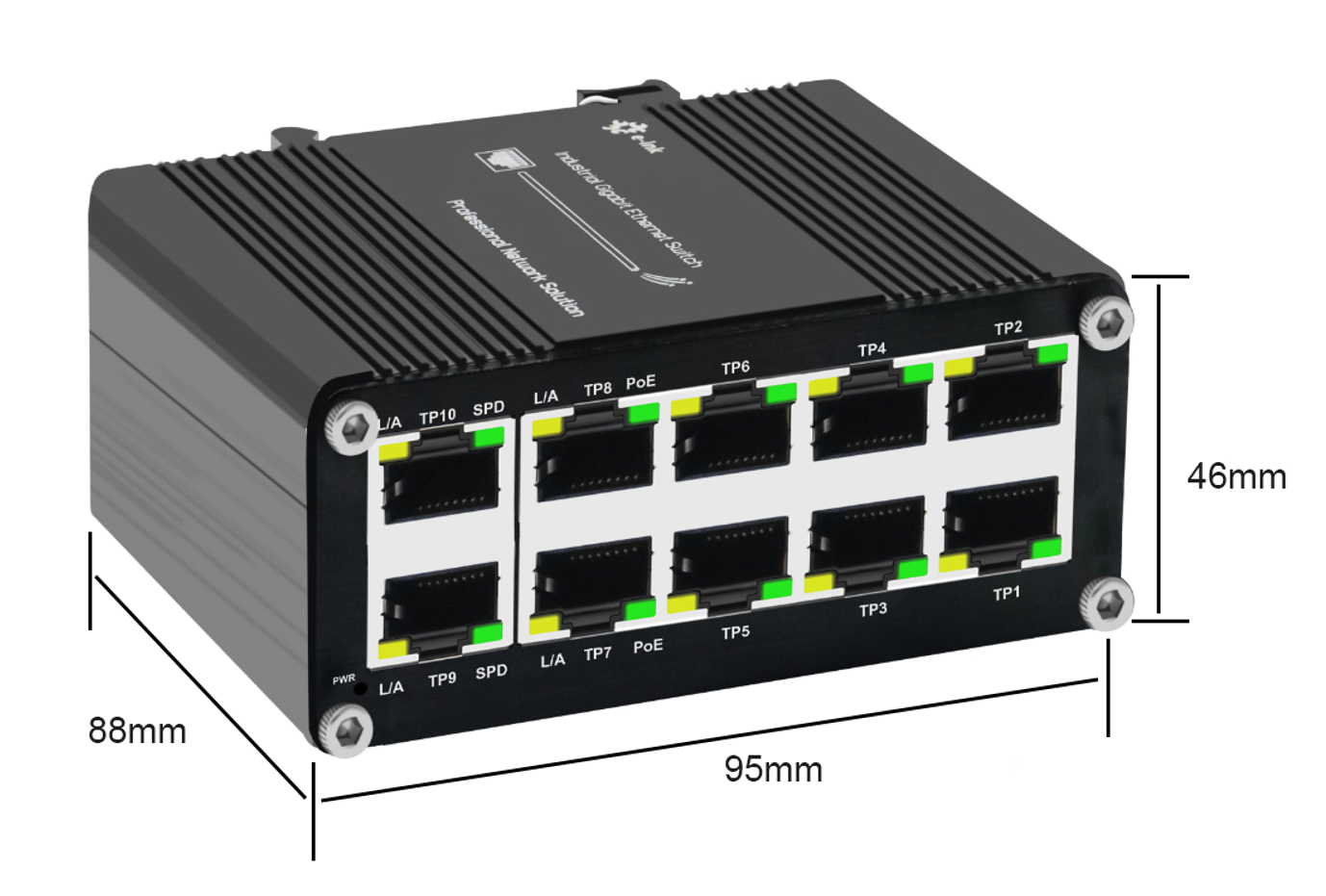

Dimension & Size

Compact Ethernet Switch

802.3at PoE Ethernet Switch

8-Port PoE Ethernet Switch

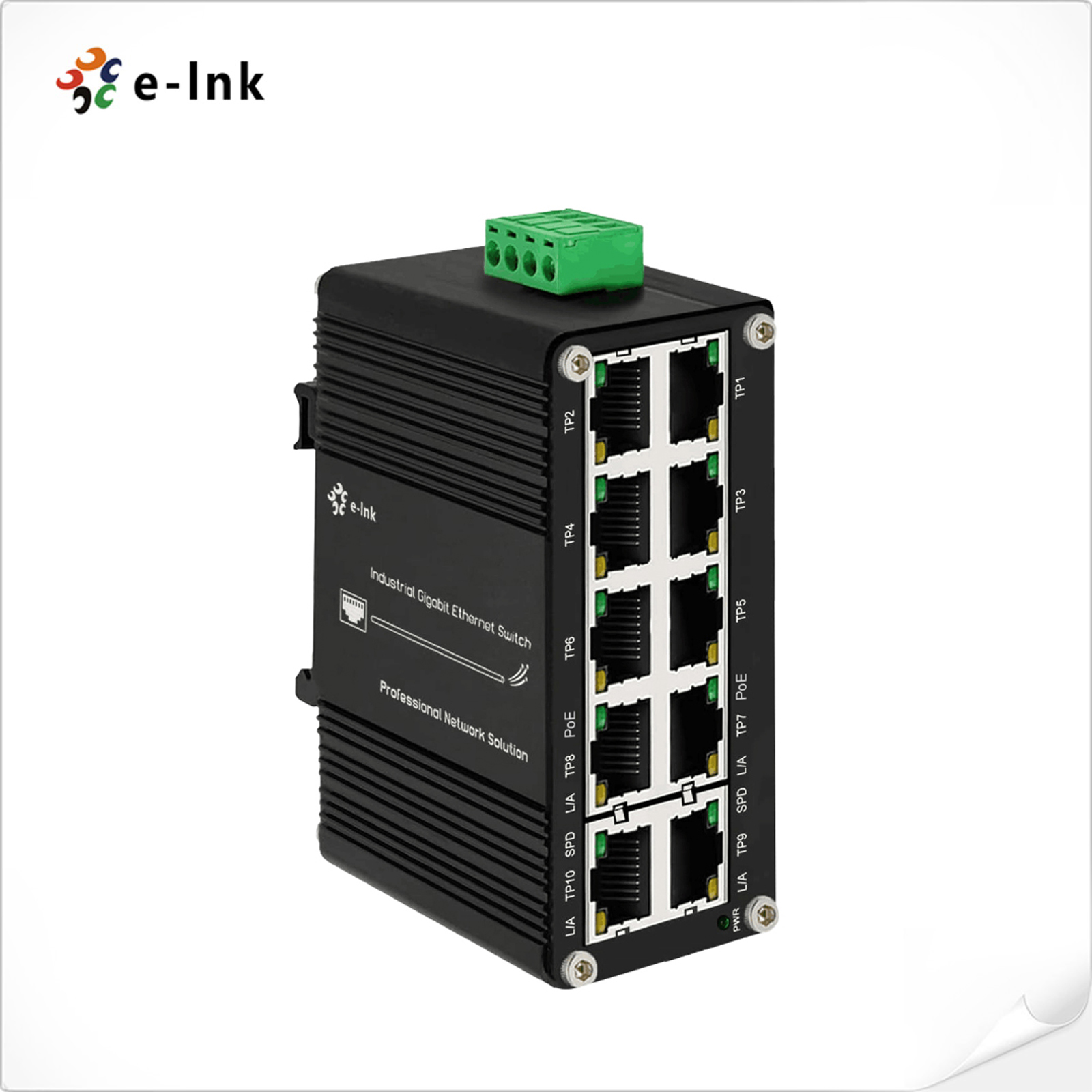

Mini Industrial 8-Port 10/100/1000T 802.3at PoE + 2-Port 10/100/1000T Compact Ethernet Switch Images
