L3 Managed PoE Switch: 24-Port 10/100/1000Base-T PoE+ with 4x10G SFP+ ports

Brand Name : E-link

Model Number : LNK-M4024GP

Certification : CE, FCC, Rohs

Place of Origin : China

MOQ : 1pcs

Price : negotiation

Payment Terms : L/C,T/T,Western Union,MoneyGram,PayPal

Supply Ability : 100000PCS/Month

Delivery Time : 7-10 working days

Packaging Details : Industrial PoE Switch Standard Carton Packaging

Contact Now

L3 Managed PoE Switch: 24-Port 10/100/1000Base-T PoE+ with 4x10G SFP+ ports

Product Advantages

24*10/100/1000M PoE RJ45 ports + 4*10G SFP+ ports

Managed features provide easier manageability, robust security and QoS

Support spanning tree STP, RSTP and MSTP.

Jumbo frames support up to 9.6K kilobytes

Support enhanced management through WEB, CLI,TELNET, SNMP

Support cable diagnosis

24 ports support PoE. Compliant with both IEEE802.3af/at. Allow PoE configuration for each PoE port

Technical Indexes

Model

LNK4024GP Series

Ports

24*10/100/1000M PoE RJ45 ports

4*10G SFP+ ports

Management port

1x Console port

Reset key

1x Reset key, for restore default settings

Switching Capacity

598G

PoE Feature

IEEE802.3af/at

Support PoE management, PoE schedule, Information of PoE status.

Packet Forwarding Rate

95Mpps @ 64byts

Operating temperature

-20~+55°C

Input voltage

AC: 110240V/5060Hz

Total power consumption

LNK-L4024GPF: 400W

LNK-L4024GPT: 600W

Protocol & Standard

IEEE 802.3,10BASE-T Ethernet;

IEEE 802.3u, fast Ethernet Standard;

IEEE 802.3ab, gigabit Ethernet Standard;

IEEE 802.3z, gigabit Ethernet Fiber Standard;(AOC fiber cable)

IEEE 802.3ae,10G Ethernet Standard;

IEEE 802.3x, full-duplex Ethernet data link layer flow control;

MAC

32K

supports automatic updates, two-way learning;

SRAM Buffer

32Mb

Route Function

Max support 144 IPv4/IPv6 static routes or default routes

ARP

Max support 256 dynamic ARP

DHCP

DHCP Client, DHCP Snooping

VLAN

Support up to 4K VLAN;

Support port-based VLAN;

L3 Managed PoE Switch: 24-Port 10/100/1000Base-T PoE+ with 4x10G SFP+ ports

Support 802.1Q tag-based VLAN;

Spanning Tree

STP, RSTP, MSTP

Port

Aggregation (TRUNK)

Support 4x 10G ports aggregation, support 32x Gigabit ports aggregation

Support 16x groups aggregation

Port Mirroring

Support multiple to single Port mirroring, no limit for quantity of mirroring source

ports

Port Isolation

Support downstream ports isolated from each other, while opening

communication with upstream ports

Port Flow Control

Support half-duplex back pressure based control;

Support full-duplex PAUSE frame based control;

Port Speed Limit

Support port-based input/output bandwidth management

Storm Control

Prevents traffic on a LAN from being disrupted by a broadcast, multicast, or

unicast storm on a port

Support port storm threshold setting

Security Features

Hardware support port-based IP+MAC Binding; Hardware support port-based ARP inspection detection;

QOS

SP (Strict Priority);

WFQ (Weighted Fair Queuing);

WRR (Weighted Round Robin);

Head Of Line;

Best-Effort Service;

First come first served;

802.1p;

Cos/Tos, QOS;

Differentiated Service;

Network Cable

Line Sequence

Support Auto-MDIX, automatic Identification straight-through cable and crossover

cable

cable diagnosis

Support cable diagnosis, Cable quality (differential pair impedance 85ohm ~ 125ohm), cable length, a short-circuit line

Negotiation Mode

Support port auto-negotiation function (auto-negotiation transmission rate and

duplex mode)

L3 Managed PoE Switch: 24-Port 10/100/1000Base-T PoE+ with 4x10G SFP+ portsSystem Maintenance

Support configuration file upload/download;

Support update packet upload;

Support WEB reset;

Reset by pressing key;

Support system log save/output;

Network Management

Support WEB management ;

Support CLI management ;



Overview

This 10G L3 PoE switch uses top-rated 10G network switching chip, multiple layers PCB design, as well as self-developed switch software system. With combination of hardware and software, it improves product quality from forwarding stability, packet processing speed, and other work capability.

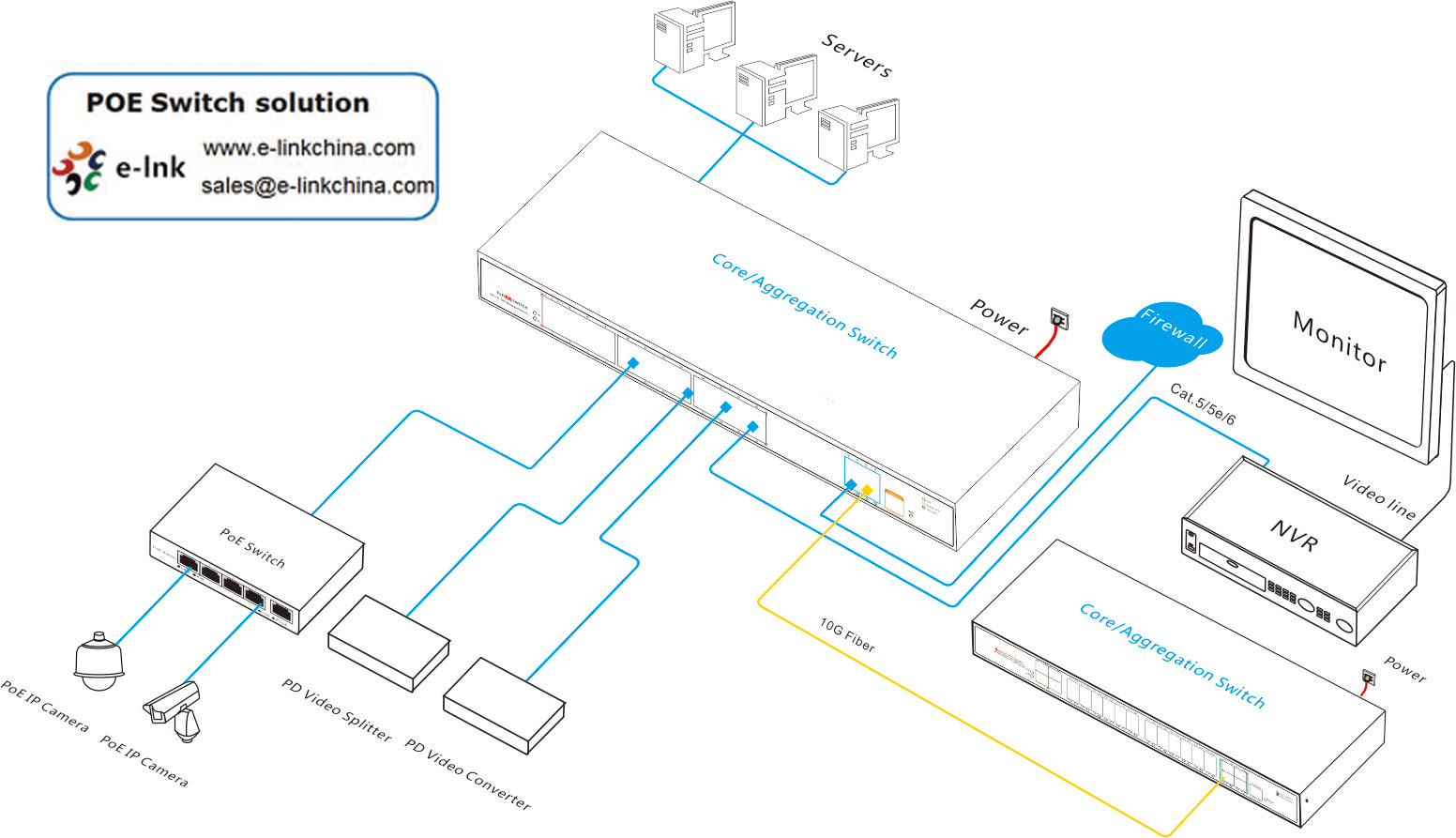

Application

L3 Managed PoE Switch: 24-Port 10/100/1000Base-T PoE+ with 4x10G SFP+ ports

Ordering Information

Model

Description

LNK-L4024GPF

28-Port 10G L3 Managed PoE Switch, 24*10/100/1000M PoE RJ45 ports + 4*10G SFP+ ports, port 1-24 supports PoE, IEEE 802.3af PoE standard, 15.4W per PoE port and can be customized by Web management software. Total input power is 400W

LNK-L4024GPT

28-Port 10G L3 Managed PoE Switch, 24*10/100/1000M PoE RJ45 ports + 4*10G SFP+ ports, port 1-24 supports PoE, IEEE 802.3at PoE+ standard, 25.5W per PoE port and can be customized by Web management software. Total input power is 600W

SFP Options

► SFP option. Please select your SFP on our SFP Options Page

► SFP module is to be purchased separately.

Mounting Options

Rack-mount
