8-port 10/100BASE-T PoE and 2-port 100BASE-T Uplink Ethernet Switch
Product Advantages
· 8*10/100M RJ45 POE port+2*10/100M RJ45 uplink port
· Support IEEE802.3, IEEE802.3U, IEEE802.3af/at
· Ethernet port support 10/100M and POE function
· Flow control: Full-duplex:IEEE802.3x,Half-duplex:Back pressure
· Support port auto MDI/MDIX
· With storing-and-forwarding mode
· All port support line switching and jumbo frame
· Zero configuration features, automatically provided to the adaptive device
· Panel lights to monitor the working status and help failure analysis
· With DIP switch Extend mode to support 250 meters long distance transmission (Cat.6 cable)
· Support fixed VLAN
Technical Indexes
| Product name | 10-Port 10/100 Ethernet Switch with 8 PoE ports |
| Model | LNK-208 Series |
| Port | 8x 10/100M RJ-45 POE port, 2x10/100M RJ-45 uplink port |
| Network protocol | Support IEEE802.3, IEEE802.3u, IEEE802.3x,IEEE802.3af/at |
| DIP switch | Extend ON: 250 meters transmission OFF: 100 meters |
| Network media | 10Base-T: Cat3 or later UTP/STP(≤100m) 10Base-T: Cat6 or later UTP/STP(≤250m) 100Base-TX: Cat5 or later UTP/STP(≤100m) |
| Performance | Bandwidth: 2Gbps(non-blocking) Packet forwarding rate: 0.1488M pps/port Cache: 448K MAC address table: 1K |
| Forwarding mode | Storing and forwarding |
| Power supply | Input: AC110-260V Output: 52V2.88A |
| Power | 150W |
| LED indicator | Green light: Network Red light: POE SW light: 1. ON: VLAN open,100 meters transmission 2. Flashing: VLAN open,250 meters transmission 3. OFF: VLAN close,100 meters transmission 4. Flashing: VLAN close,250 meters transmission |
| Working environment | Working temperature: -20℃ to 55℃ Storage temperature: -40℃ to 80℃ Working humidity: 10% to 90%RH no condensing Storage humidity: 5% to 90%RH no condensing |
| Certification | CE Mark ,commercial; CE/LVD EN60950, RoHS, FCC |
| Radiation | CE mark, commercial; FCC Part 15 Class B; VCCI Class B; EN 55022 (CISPR 22), Class B |
| Physical structure | Product size(L×W×H): 220*160*35mm Product weight: 0.92kg Packing weight: 1.16kg |
| Packaging list | 1. Switch: 1 SET 2. Power Cord: 1 PCS 3. Manual: 1PCS 4. Certificate: 1PCS 5. Warranty card: 1PCS |
| MTBF | 100000 hours |
| Warranty | 2 years |
Overview
LNK-208 Series PoE Switch is equipped with 8-port 10/100BASE-TX PoE and 2-port 100Base-T uplink. LNK-208 Series PoE switch can automatically detect and supply power with those IEEE 802.3af/at compliant Powered Devices (PDs). With DIP switch Extend mode to support 250 meters long distance transmission (Cat.6 cable).

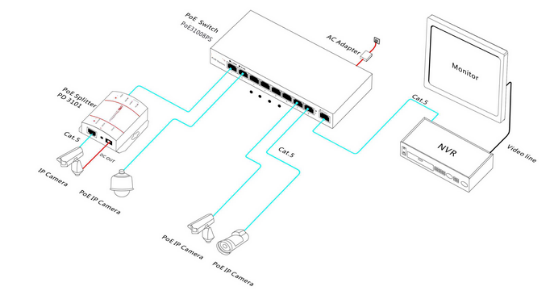

Application
Ordering Information
| Model | Description |
| LNK-208 | 8x10/100M RJ45 PoE ports + 2x10/100M RJ45 uplink ports PoE Switch,
IEEE802.3af / IEEE802.3at PoE standard,
AC110-260V Power Input |
|
|
