16*10/100M PoE + 2*10/100/1000M Uplink RJ45 + 1*1000M Uplink SFP Ethernet Switch
Product Advantages
► 16*10/100M PoE Ports + 2*Gigabit Ethernet Uplink Ports + 1* Gigabit SFP Uplink Port
► Support IEEE802.3, IEEE802.3u, IEEE802.3x, IEEE802.3af/at, store and forward
► Compatible with IEEE802.3at (30W) and IEEE802.3af (15.4w)
► Ethernet port supports 10/100M adaptive and POE functions
► Flow control mode: full-duplex adopts IEEE 802.3x standard, half-duplex adopts Back pressure standard
► Support port auto flip (Auto MDI/MDIX)
► All ports support wire-speed switching
► Automatically supplied to adaptive devices
Technical Indexes
| Product name | 16*10/100M PoE + 2*10/100/1000M Uplink RJ45 + 1*1000M Uplink SFP Ethernet Switch |
| Model | LNK-1612P-SFP Series |
| Port | 16*10/100M PoE Ports + 2*Gigabit Ethernet Uplink Ports + 1*Gigabit SFP Uplink Port |
| Network protocol | Support IEEE802.3, IEEE802.3u, IEEE802.3x, IEEE802.3ab, IEEE802.3z |
| Network media | 10Base-T: Cat3 or later UTP/STP(≤100m) 10Base-T: Cat6 or later UTP/STP(≤250m) 100Base-TX: Cat5 or later UTP/STP(≤100m) 1000BASE-TX: Cat5 or more UTP (≤100m) |
| Optical (SFP) | Multimode Fiber: 850nm, 1310nm, Transmission Distance: 550m/2Km (depending on SFP module) Single-Mode Fiber: 1310nm, 1550nm, Transmission Distance: 20/40/60/80/100/120km (depending on SFP module) |
| Performance | Bandwidth: 9.2Gbps (non-blocking) Packet forwarding rate: 6.8Mpps Packet Buffer Memory: 1M MAC address table: 2K |
| Forwarding mode | Store-and-forward |
| Power supply | Power input: AC100-240V 50/60Hz, Output: 52V3.8A |
| Power Budget | 200W |
| Working environment | Working temperature:-20℃ to 55℃ Storage temperature:-40℃ to 80℃ Working humidity:10% to 90%RH no condensing Storage humidity:5% to 90%RH no condensing |
| Certification | CE Mark, commercial; CE/LVD EN60950, RoHS, FCC |
| Radiation | CE mark, commercial; FCC Part 15 Class B; VCCI Class B; EN 55022 (CISPR 22), Class B |
Overview
The LNK-1612P-SFP PoE Switch with 16 Port 10/100M PoE + 2 Port Gigabit Ethernet Uplink + 1 Port Gigabit SFP Uplink Port, it’s using high-quality high-speed network IC and the most stable POE chip, POE port meets 802.3af / 802.3at standard, this series of PoE Switch can be 10/100M Ethernet The network provides a seamless connection, and the PoE power port can automatically detect and power the powered devices that comply with the IEEE802.3af / IEEE802.3at standards. The non-POE device intelligently detects no power and only transmits data.

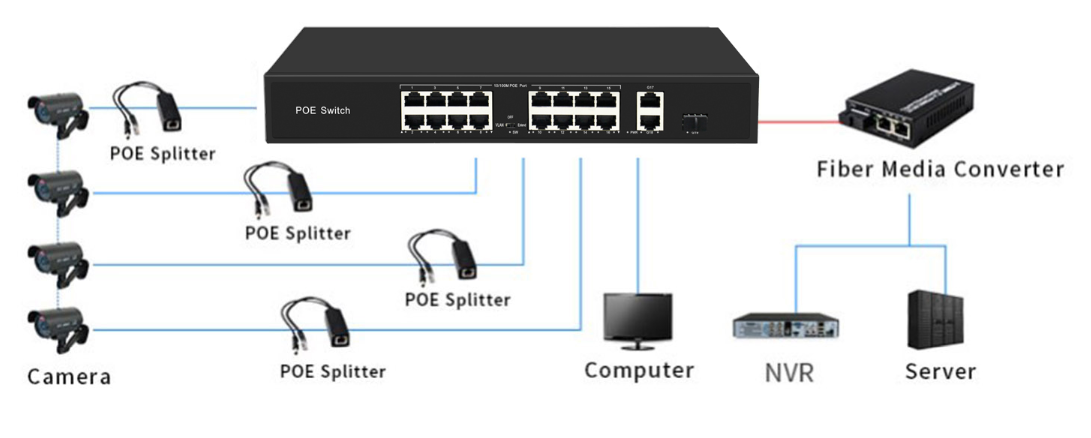

Application
Ordering Information
| Model | Description |
| LNK-1612P-SFP | 16*10/100M PoE Ports + 2*Gigabit Ethernet Uplink Ports + 1*Gigabit SFP Uplink Port, support PoE power supply function, compatible with both IEEE802.3af / IEEE802.3at standard. PoE Power Output: 15.4W / 30W each port. Total power budget 200Watts. 1U Rack Mount installation |
|
|
