10/100/1000Mbps PoE-PSE Fiber to Copper Ethernet Switch: 1 SFP + 4 PoE

Name: 101001000Mbps PoEPSE Fiber to Copper Ethernet Switch 1 SFP 4 PoE
Brand: E-link
Price: 1 USD

10/100/1000Mbps PoE-PSE Fiber to Copper Ethernet Switch: 1 SFP + 4 PoE Manufactures

Brand Name : E-link

Model Number : LNK-1400G-SFP

Certification : CE, FCC, Rohs

Place of Origin : China

MOQ : 1pcs

Price : negotiation

Payment Terms : L/C,T/T,Western Union,MoneyGram,PayPal

Supply Ability : 100000PCS/Month

Delivery Time : 7-10 working days

Packaging Details : Industrial PoE Switch Standard Carton Packaging

Dimension (LxWxH) : 158mm ×100mm ×27mm

Operating Temperature : 0℃~50℃

weight : 0.78 kg (Gross Weight)

Standard : IEEE802.3 (10BASE-T), IEEE802.3u 100BASE-TX/FX (Fast-Ethernet), IEEE802.3ab 1000Base-T, IEEE802.3x (Flow Control), IEEE802.1q, IEEE802.1p QoS, IEEE802.1d Spanning Tree, IEEE802.3af Power over Ethernet, IEEE802.3at Power over Ethernet

Contact Now

10/100/1000Mbps PoE-PSE Fiber to Copper Ethernet Switch: 1 SFP + 4 PoE

Product Advantages

· 1 x 1000BASE-X SFP fiber port

· 4 x 10/100/1000Base-TX port for data and power

· IEEE802.3af (15.4W) or IEEE802.3at PoE+(30W) compliant

· Internal 100-240VAC universal power supply

· Diagnostic and unit LEDs and PoE current indicator LEDs

Technical Indexes

Standard	IEEE802.3 (10BASE-T), IEEE802.3u 100BASE-TX/FX (Fast-Ethernet), IEEE802.3ab 1000Base-T, IEEE802.3x (Flow Control), IEEE802.1q, IEEE802.1p QoS, IEEE802.1d Spanning Tree, IEEE802.3af Power over Ethernet, IEEE802.3at Power over Ethernet
10/100BASE-T	STP or UTP Category 5/5e/6 cable (Max. 100m)
100BASE-FX	Depending on SFP
Conversion Mode / Delay Time	Store-and-Forward < 10us, straight-through<0.9us
Flow control	Full duplex-flow control, Half duplex-back pressure
RJ-45 Port	4 x Auto-MDI/MDIX
Optical Port	1 x SFP 1000Base-X
Input Voltage	AC100 ~ 240V / 50-60HZ to 48V via external adapter
Power Consumption	<2.5W (idle), 60W (full-load)
PoE Pin Assignment	4/5 (V+),7/8 (V-)
PoE Output Voltage	48V
MTBF	50,000 hours
BER	<1/1000000000
MAC Address Table	1K
Buffer Size	1M
Operation Temperature	0℃~50℃
Storage Temperature	-40℃~70℃
Storage Humidity	158mm ×100mm ×27mm
Dimensions and Weight	0.78 kg (Gross Weight)

Overview

The LNK-2412P-SFP PoE Switch with 24 Port 10/100M PoE + 2 Port Gigabit Ethernet Uplink + 1 Port Gigabit SFP Uplink Port, it’s using high-quality high-speed network IC and the most stable POE chip, POE port meets 802.3af / 802.3at standard, this series of PoE Switch can be 10/100M Ethernet The network provides a seamless connection, and the PoE power port can automatically detect and power the powered devices that comply with the IEEE802.3af / IEEE802.3at standards. The non-POE device intelligently detects no power and only transmits data.

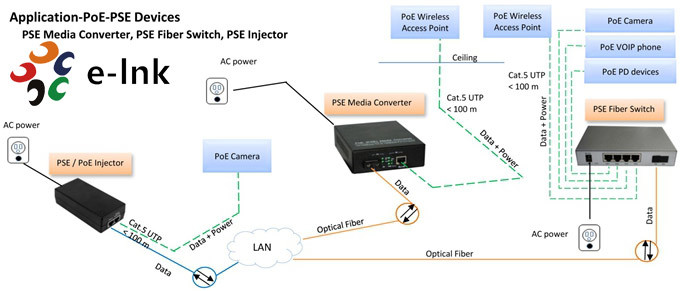

Application

10/100/1000Mbps PoE-PSE Fiber to Copper Ethernet Switch: 1 SFP + 4 PoE

Ordering Information

Model	Description
LNK-1400G-SFP	Unmanaged 10/100/1000Mbps Fiber to Copper Ethernet Switch: 1 SFP + 4 RJ45, not including SFP Modules; External Power Adapter
LNK-1400GP-SFP	Unmanaged 10/100/1000Mbps PoE-PSE Fiber to Copper Ethernet Switch: 1 SFP + 4 PoE, not including SFP Modules; DC48V, IEEE802.3at, PoE+ Power: 30W per PoE port, External Power Adapter

10/100/1000Mbps PoE-PSE Fiber to Copper Ethernet Switch: 1 SFP + 4 PoE Images
