Multi-functional 4K 60Hz HDMI KVM Fiber Extender
HDMI Fiber Extender Advantage
► Support HDMI video resolution up to 4096*2160P@60Hz
► Support HDMI video loop out
► Support KVM
► Support RS232 or RS485
► Support 10/100M TCP/IP
Overview
The LNK-4KH-1D1U1E1A1R Fiber optic extender provides extension of HDMI signals long distances
over one fiber optic cable, it supports high resolution up to 4K60Hz HDMI,and with KVM, Audio, RS232
or RS485, 10/100M TCP/IP, IR, EDID function. The extender can use for a wide range of applications
requiring long distance transmission of high resolution with high quality by its good stability and powerful
security.

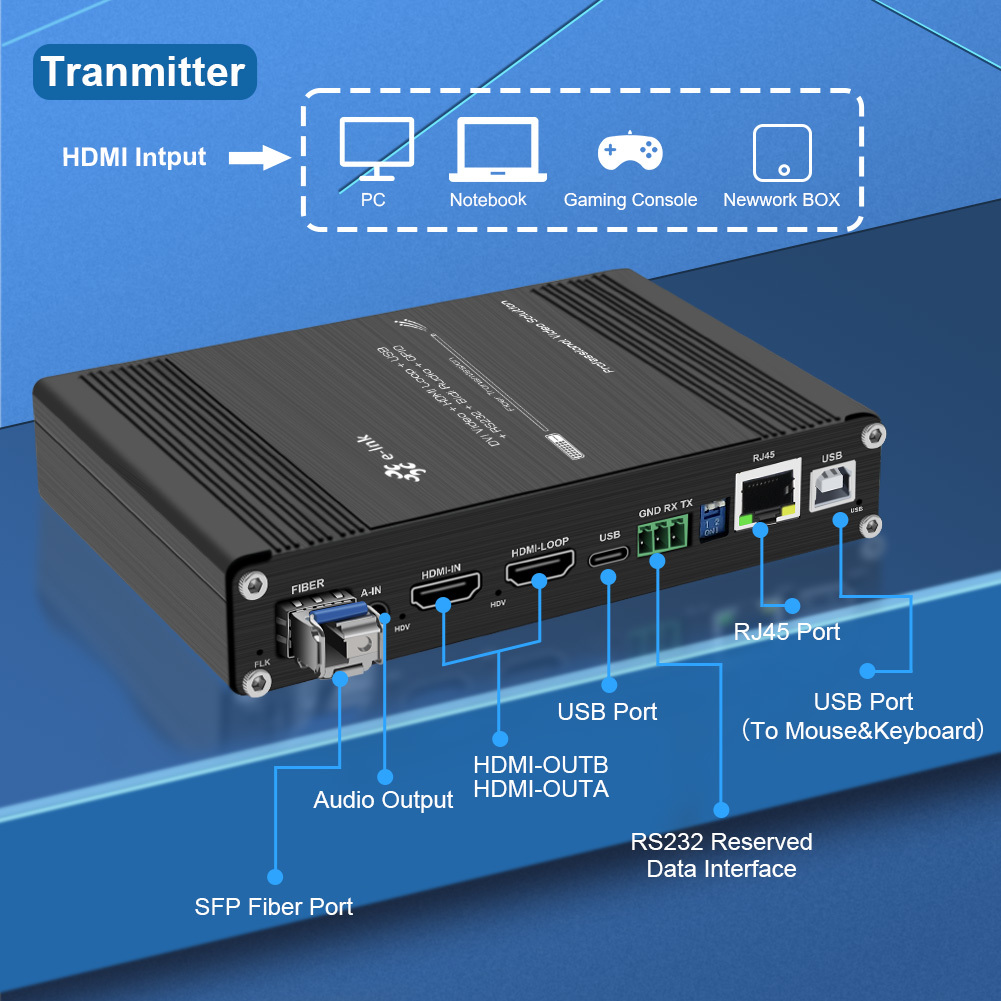

HDMI Fiber Extender Picture
Technical Indexes
|  Parameter
| Description |
| Transmitter Interfaces | Standards | 1 x HDMI 2.0 Input (4K@60Hz) 1 x HDMI 2.0 Loop-out (4K@60Hz) 1 x Audio Input 1 x SFP 1 x RS232/RS485 2 x IR 1 x RJ45(10/100M, TCP/ IP) 1 x USB-B |
| Receiver Interfaces | Standards | 2 x HDMI 2.0 Output (4K@60Hz) 1 x Audio Output 1 x SFP 1 × RS232/RS485 2 × IR 1 x RJ45(10/100M, TCP/ IP) 2 x USB-A |
| Video Resolution | HDMI | SMPTE:720p|1080p12160p VESA:800x600|1024x768|1280x720|1280x800| 1280x960|1280x1024|1400x1050|1600x1200| 1920x10801920x1200|2048x1152|2560x1600| 3840x1080|3840x2160|4096x2160 |
| | Refresh Rate | 23.98/24/25/29.97/30/50/59.94/60Hz |
| Supported Standards | HDMI | 1.3,1.4,2.0 |
| | DVI | 1.0 |
| Audio | Interface | 3.5mm Audio Interface |
| | Signal type | Operate via DIP switch, Up for HDMI Internal Audio Down for External Audio |
| KVM | Interface | TX: 1 x USB-B RX: 2 x USB-A |
| | latency | Minimum latency |

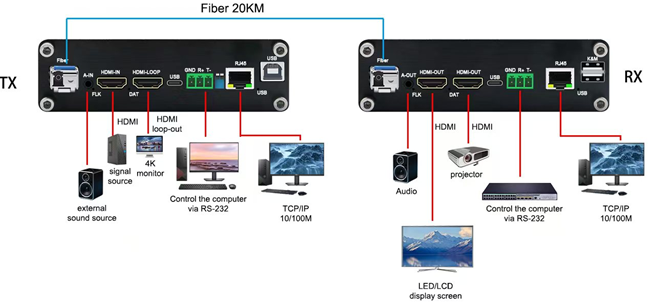

Application
Ordering Information
| Model | Description |
| LNK-4KH-1D1U1E1A1R | Multifunctional 4K60Hz HDMI Fiber Extender, with KVM, Audio, RS232 or RS485, 10/100M TCP/IP, IR, EDID function, MMF 330M or SMF 20/40/60/80KM, LC or SC. |
|
|
