Industrial 4-Port 10/100/1000T 802.3bt PoE + 1-Port 100/1000BASE-X Ethernet Switch

Product Categories
E-link China Technology Co.,LTD
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

Industrial 4-Port 10/100/1000T 802.3bt PoE + 1-Port 100/1000BASE-X Ethernet Switch

Brand Name : E-link

Model Number : LNK-IMC104GP90 Series

Certification : ISO9001

Place of Origin : China

MOQ : 1 pcs

Price : Negotiation

Payment Terms : L/C,T/T,Western Union,MoneyGram,Paypal

Supply Ability : 1000 pcs/month

Delivery Time : 3-12 working days

Packaging Details : Carton Packaging

Mounting Options : DIN-Rail / Wall-mount

Dimensions (WxDxH) : 150 x 115 x 30 mm

Operating Temperature : -40°C to 80°C (-40°F to 176°F)

Storage Temperature : -40°C to 85°C (-40°F to 185°F)

Input Power : 48~57VDC, Redundant Power (6-pin Terminal Block)

Power Consumption : 360W Max. (PoE in use)/5W Max.(PoE not in use)

Casing : Metal Case

Optical Port : 1 x 100/1000Base-FX (SFP, SC, FC, ST Optional)

Contact Now

Industrial 4-Port 10/100/1000T 802.3bt PoE + 1-Port 100/1000BASE-X Ethernet Switch



Advantages

► 4 10/100/1000Base-TX + 1 100/1000Base-X

► 10/100/1000Mbps RJ45 Port Supports Full/Half-duplex, Auto-negotiation, Auto MDI/MDIX

► Supports IEEE 802.3bt PoE++ (90W per port)

► SFP, SC, FC, ST Optional

► Supports 802.3x Flow Control

► IEEE 802.3az Energy Efficient Ethernet (EEE)

► Redundant Power Inputs

► Supports Wall-mount and DIN-Rail installation

► -40°C to 80°C (-40°F to 176°F) operating temperature


Overview

LNK-IMC104GP90 Series is a 4 ports 10/100/1000Base-TX + 1 port 100/1000Base-X Hardened PoE switch. The Switch provides 4 port PoE++ function for kinds of Powered Devices to receive power as well as data over the RJ-45 cable. The 100/1000Base-FX supports 1 or 2 core Single-mode or Multi-mode fiber. With its reliable design and ease of use, the product is a great choice for integrating networks consisting of network devices such as IP cameras and wireless access points between remote locations.



Industrial 4-Port 10/100/1000T 802.3bt PoE + 1-Port 100/1000BASE-X Ethernet Switch

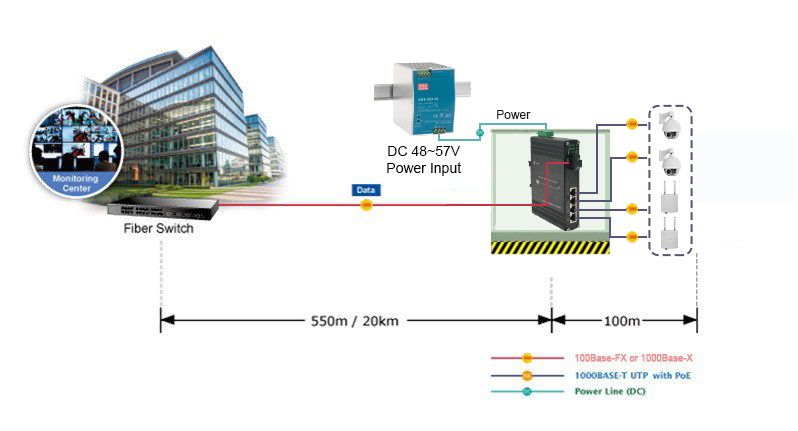

Application

Industrial 4-Port 10/100/1000T 802.3bt PoE + 1-Port 100/1000BASE-X Ethernet Switch



Ordering Information

Model

Description

LNK-IMC104GP90

Industrial Ethernet Switch: 4-Port 10/100/1000Base-TX (4-port PoE++) + 1-Port 100/1000Base-X Fiber, Multimode, Dual Fiber, SC, 550m

LNK-IMC104GP90-20

Industrial Ethernet Switch: 4-Port 10/100/1000Base-TX (4-port PoE++) + 1-Port 100/1000Base-X Fiber, Single Mode, Dual Fiber, SC, 20KM

LNK-IMC104GPS90-20

Industrial Ethernet Switch: 4-Port 10/100/1000Base-TX (4-port PoE++) + 1-Port 100/1000Base-X Fiber, Single Mode, Single Fiber, SC, 20KM

LNK-IMC104GPF90-20

Industrial Ethernet Switch: 4-Port 10/100/1000Base-TX (4-port PoE++) + 1-Port 100/1000Base-X Fiber, Single Mode, Single Fiber, FC, 20KM

LNK-IMC104GP90-SFP

Industrial Ethernet Switch: 4-Port 10/100/1000BASE-T (4-port PoE++) + 1-port 100/1000BASE SFP Ethernet Switch

SFP Options

► SFP option. Please select your SFP on our SFP Options Page

► SFP module is to be purchased separately.

Mounting Options

► Default DIN-Rail Bracket installed; Wall Mount Bracket is included.

Power Options

► 480W/10A 48VDC DIN-Rail Power Supply. Open Wire for Terminal Block.

► Power Supply is to be purchased separately.
