1200M HomePlug AV Powerline Adapter with PoE
Advantage
· High-Speed powerline adapter with Ethernet interface for fast data transfer over the existing household power supply
· The high-speed transfer rates of 1200Mbps even make it possible to transmit video in DVD quality
· No need new wires and use at any power socket with up to 500 meters
· Simple plug and easy to install fully compliant with IEEE802.3/802.3u,IEEE802.3at/af HomePlugAV/HomePlugAV2 standard
· Provide DC55V power for the PoE PD over CAT5e / CAT6
Overview
The LNK-1200MH-POE(S) Smart Link HomePlug AV2 1200Mbps Ethernet Adapter embarks on
a concept of No New Wires data communications, and it transforms your in-house powerline into
a networking infrastructure. It provides SmartLink Plus coupling to the Line-Neutral pair and the
Line-Ground pair of the AC mains. It successfully reduce "dead spot", increase throughput and
increase network coverage within a home. Surf the Internet and share data at the speed up to
1Gbps PHY rates through powerline, And Built-in PoE Injector to provide 55V/48V classification
power via CAT5E / CAT6.
Technical Indexes
| Parameter | Specification |
| Transfer rate (PHY): | 1200Mbps |
| Range: | up to 500m |
| Frequency Band | 2~68 MHz |
| Access-Method: | OFDM |
| Powerline Connector: | EU, UK, AU and US |
| Network Connector: | 1x RJ45 10/100Base-TX |
| Encoding: | 128Bit AES-Encryption with key management |
| LED-Displays: | PLC (PLC signal light) |
| | ACT |
| | PWR (power light) |
| | ETH (Ethernet light) |
| | PoE (POE light) |
| Power supply: | 100~240 VAC, 50/60 Hz |
| Power over Ethernet: | PoE function gets solved on the veins 4,5 (+) and 7,8(-), no data pairs, max. Output power 55VDC 30W/48VDC, 15.4W |
| Power consumption: | 3.9 watts without PoE terminal, 35 watts maximum |
| Supported Standards: | IEEE 802.3 IEEE 802.3x IEEE 802.3u IEEE 802.3af IEEE 802.3at Auto MDI / X HomePlug AV2 |
| Operating Systems: | Windows® XP32bit, Windows® Vista 32/64bit, Windows® 7 32/64bit, Linux®, Mac OS® X and all TCP/IP Operating Systems |

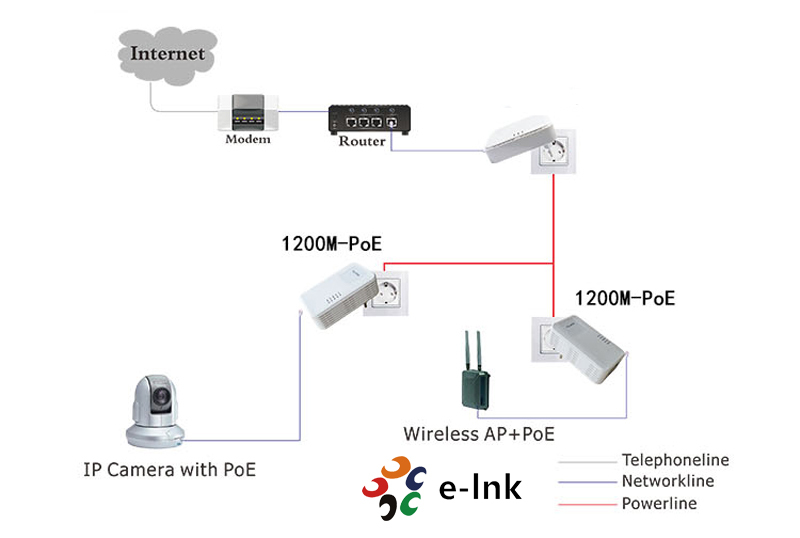

Application
