Passive PoE Kit (Passive PoE Splitter + Passive PoE Injector)

Brand Name : E-link

Model Number : LNK-POE-2P

Certification : CE, FCC, RoHS，ISO9001

Place of Origin : China

MOQ : 1pcs

Price : Negotiated

Payment Terms : T/T,PayPal

Supply Ability : 1000pcs/mouth

Delivery Time : 3-15working days

Packaging Details : standard export package

Case of material : PVC

Ethernet data rate : 10/100 Mbps

Ethernet cable connector : RJ-45

Operating Temperature : 0°C - 40°C (32°F - 104°F)

Storage temperature : -40°C - 70°C (-40°F - 158°F)

Product Weight (g) : 55g

Contact Now

Passive PoE Kit (Passive PoE Splitter + Passive PoE Injector)

Advantage

► Passive PoE Splitter + Passive PoE Injector

► Easy to install PoE Application for AP, CPE, IPCam, IP Phone

► Use the Power Supply from Powered Device

► Accept up to 57V Voltage Input

Overview

LNK-POE-2P is a passive Power over Ethernet kit, including one passive splitter and one passive injector.

It provides the most convenient and cost effective way for you to make PoE application, you do not worry

about how to find power outlet when using AP or IPCam. It uses the power adapter that comes with your

network device. There is no need for special PoE power adapter.

Technical Indexes

Interface

Data pin: 1,2,3,6

Power pin: 4, 5, 7, 8 (12~57V)

Case of material

PVC

Network cable

T IA/EIA 568 Cat. 5

Ethernet data rate

10/100 Mbps

Ethernet cable connector

RJ-45

Operating Temperature

0°C - 40°C (32°F - 104°F)

Storage temperature

-40°C - 70°C (-40°F - 158°F)

Operating Humidity

10% ~ 80% (non-condensing)

Storage Humidity

5% ~ 90% (non-condensing)

Product Weight (g)

55g

Dimensions

210 x 19 x 19 mm

( L x W x H (mm) )

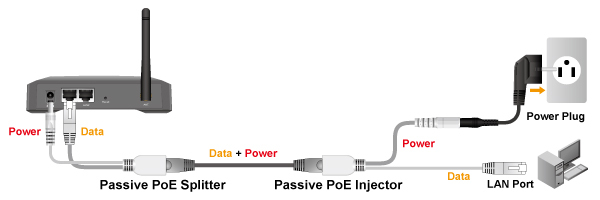

Application

Passive PoE Kit (Passive PoE Splitter + Passive PoE Injector)

Ordering Information

Passive PoE Kit (Passive PoE Splitter + Passive PoE Injector)Passive PoE Kit (Passive PoE Splitter + Passive PoE Injector)Passive PoE Kit (Passive PoE Splitter + Passive PoE Injector)Passive PoE Kit (Passive PoE Splitter + Passive PoE Injector)Passive PoE Kit (Passive PoE Splitter + Passive PoE Injector)

Item

Description

LNK-POE-2P

Passive PoE Kit: Passive PoE Splitter + Passive PoE Injector
