Industrial 10/100/1000Mbps 802.3bt PoE++ Splitter Output Voltage 5VDC
Advantage
► One RJ-45 PoE Port (Data & Power In)
► One RJ-45 Port (Data Out)
► Support IEEE802.3af/at/bt PoE++
► Support 10/100/1000Base-T
► Distance up to 100 meters
► Support DIN-Rail & Wall-mount installation
► Wide operating temperature -40 ~ 80°C
Overview
LNK-INS901-5V series is an Industrial Grade, Gigabit Ethernet, PoE Splitter, designed to deliver data,
via RJ-45 Ethernet connector, and electrical power, via screw terminal block, to non-PoE devices. This
device saves the high cost of running separate electrical service to edge devices.
The LNK-INS901-5V acts as PD equipment and can be powered by standard PoE IEEE802.3af/at/bt
PSE (Power Source Equipment) switches or work when paired with LNK-INJ-48-95W PoE Injectors.
The data transmission, up to Gigabit speeds, with power output voltages of 5VDC, run simultaneously
up to the Ethernet limit of 100 meters. Simple settings of the LNK-INS901-5V, make it a plug and play
device, requiring no tools or software configuration, and provides ease of use, with flexible installation
and high reliability.
Technical Indexes
| Power over Ethernet |
| PoE Standard: | IEEE 802.3af/at/bt Power over Ethernet |
| Number of devices that can be powered: | 1 (5VDC) (Vary on device’s power requirement; cannot be over 36 watts.) |
| Environmental |
| Operating Temperature: | -40°C to 80°C (-40°F to 176°F) |
| Storage Temperature: | -40°C to 85°C (-40°F to 185°F) |
| Relative Humidity: | 5% to 95% non-condensing |
| MTBF: | >200,000hrs |
| Electrical and Mechanical |
| Power Output: | 20W 5VDC (Terminal Block) |
| Power Consumption: | 25W Max. |
| LED Indicators: |
| PWR: | 5VDC Power OUT |
| POE: | PoE Power IN |
| Dimensions (WxDxH): | 95 x 70 x 30 mm |
| Weight: | 0.25Kg |
| Casing: | Aluminum Case |
| Mounting Options: | DIN-Rail / Wall-mount |

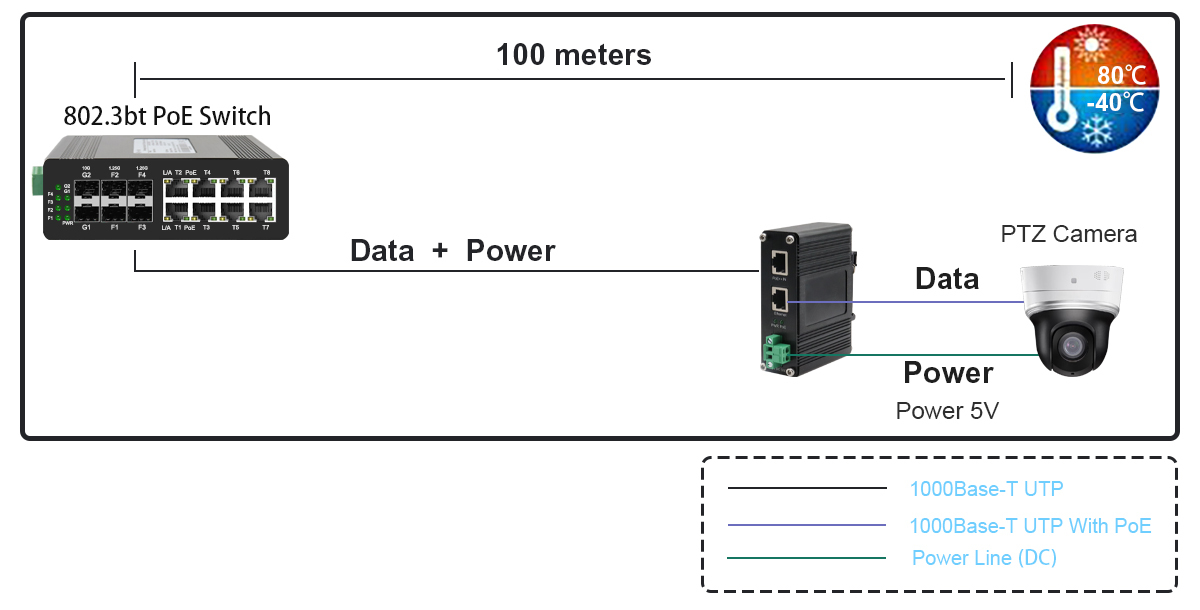

Application
Ordering Information
| Model | Description |
| LNK-INS901-5V | Industrial IEEE802.3bt Gigabit PoE Splitter Output Voltage 5VDC, maximum output of 20W at 5VDC, Support DIN-Rail mounting and Wall mounting installation, -40 to 80°C operating temperature |
| Mounting Options | ► Default DIN-Rail Bracket installed; Wall Mount Bracket is included. |
|
|
