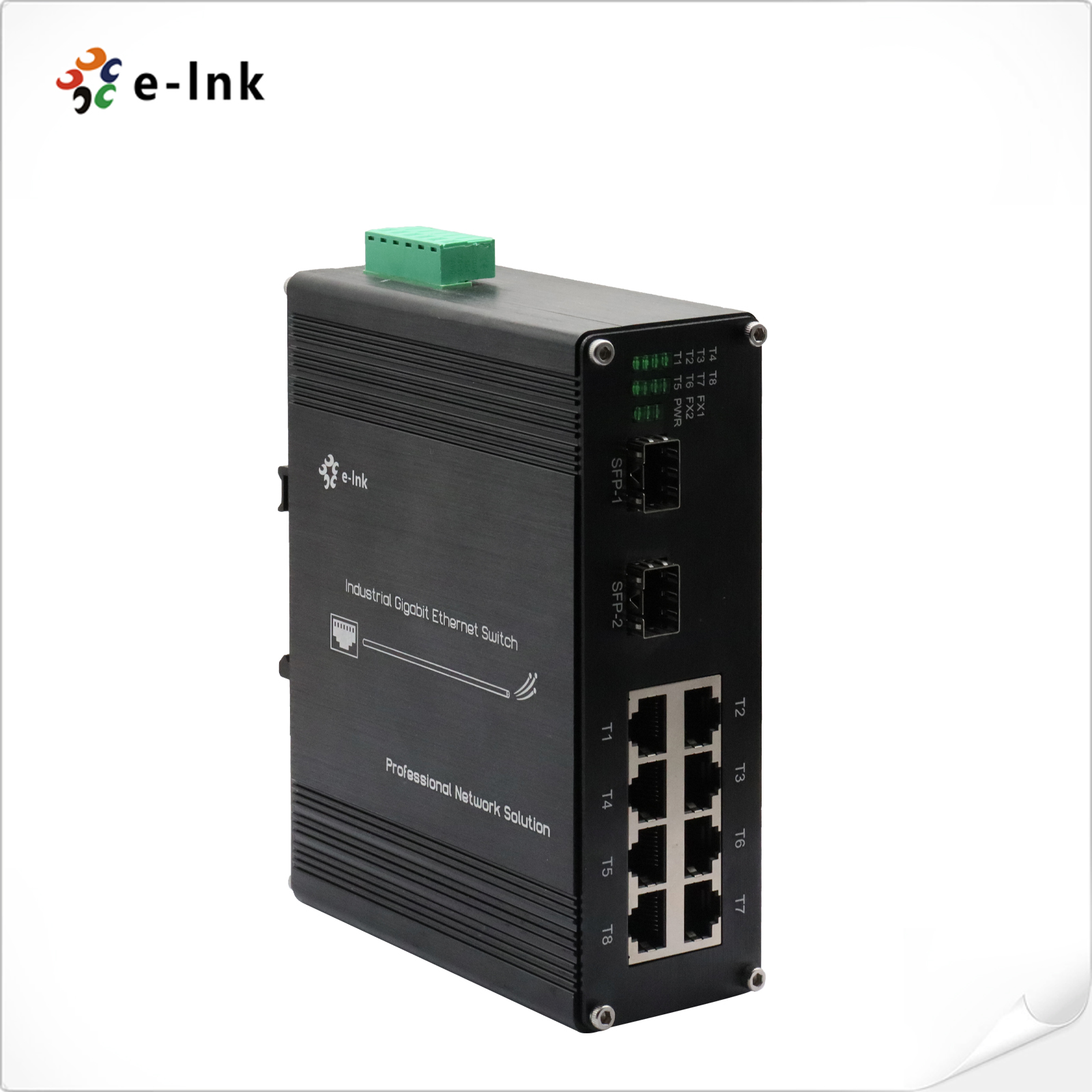

Industrial 8-Port 10/100/1000T 802.3bt PoE + 2-Port 100/1000BASE-X Ethernet Switch

Brand Name : E-link

Model Number : LNK-IMC208GP60 Series

Certification : ISO9001

Place of Origin : China

MOQ : 1 pcs

Price : Negotiation

Payment Terms : L/C,T/T,Western Union,MoneyGram,Paypal

Supply Ability : 1000 pcs/month

Delivery Time : 3-12 working days

Packaging Details : Carton Packaging

Mounting Options : DIN-Rail mount

Dimensions (WxDxH) : 150 x 115 x50 mm

Operating Temperature : -40°C to 80°C (-40°F to 176°F)

Storage Temperature : -40°C to 85°C (-40°F to 185°F)

Input Power : 48~57VDC, Redundant Power (6-pin Terminal Block)

Power Consumption : 360W Max. (PoE in use);5W Max. (PoE not in use)

Casing : Aluminum Case

Optical Port : 2 x 100/1000Base-FX (SFP, SC, FC, ST Optional)

Contact Now

Industrial 8-Port 10/100/1000T 802.3bt PoE + 2-Port 100/1000BASE-X Ethernet Switch



Advantages

► 8 10/100/1000Base-TX + 2 100/1000Base-FX

► 10/100/1000Mbps RJ45 Port Supports Full/Half-duplex, Auto-negotiation, Auto MDI/MDIX

► Supports IEEE 802.3bt PoE+ (60W per port)

► Total PoE Power Budget up to 360W maximum

► SFP, SC, FC, ST Optional

► Supports 802.3x Flow Control

► IEEE 802.3az Energy Efficient Ethernet (EEE)

► Redundant Power Inputs

► Supports DIN-Rail mount installation

► -40°C to 80°C (-40°F to 176°F) operating temperature.


Overview

LNK-IMC208GP60 Series is an 8 ports 10/100/1000Base-TX + 2 port 100/1000Base-FX Hardened PoE switch. The Switch provides 8 port PoE++ function for kinds of Powered Devices to receive power as well as data over the RJ-45 cable. The 100/1000Base-FX supports 1 or 2 core Single-mode or Multi-mode fiber. With its reliable design and ease of use, the product is a great choice for integrating networks consisting of network devices such as IP cameras and wireless access points between remote locations.



Industrial 8-Port 10/100/1000T 802.3bt PoE + 2-Port 100/1000BASE-X Ethernet Switch

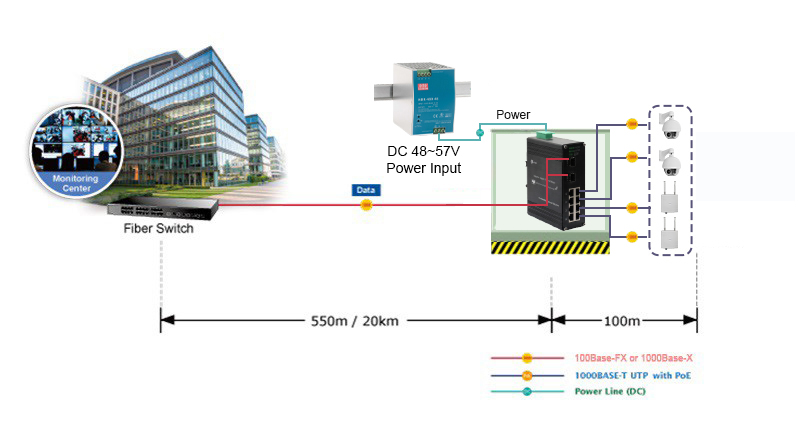

Application

Industrial 8-Port 10/100/1000T 802.3bt PoE + 2-Port 100/1000BASE-X Ethernet Switch



Ordering Information

Model

Description

LNK-IMC208GP60

Industrial Ethernet Switch: 8-Port 10/100/1000Base-TX (8-port PoE++) + 2-port 100/1000BASE-X Fiber, Multimode, Dual Fiber, SC, 550m

LNK-IMC208GP60-20

Industrial Ethernet Switch: 8-Port 10/100/1000Base-TX (8-port PoE++) + 2-port 100/1000BASE-X Fiber, Single Mode, Dual Fiber, SC, 20KM

LNK-IMC208GPS60-20

Industrial Ethernet Switch: 8-Port 10/100/1000Base-TX (8-port PoE++) + 2-port 100/1000BASE-X Fiber, Single Mode, Single Fiber, SC, 20KM

LNK-IMC208GPF60-20

Industrial Ethernet Switch: 8-Port 10/100/1000Base-TX (8-port PoE++) + 2-port 100/1000BASE-X Fiber, Single Mode, Single Fiber, FC, 20KM

LNK-IMC208GP60-SFP

Industrial 8-port 10/100/1000BASE-T (8-port PoE++) + 2-port 100/1000BASE SFP Ethernet Switch

SFP Options

► SFP option. Please select your SFP on our SFP Options Page

► SFP module is to be purchased separately.

Mounting Options

► Default DIN-Rail Bracket installed

Power Options

► 480W/10A 48VDC DIN-Rail Power Supply. Open Wire for Terminal Block.

► Power Supply is to be purchased separately.
