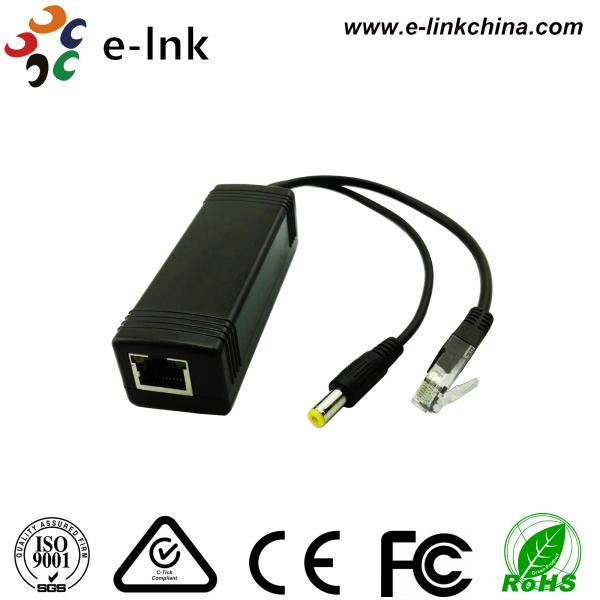

10/100/1000M 5V 3A PoE Splitter
Advantage
► DC output 5V 3A
► 52V: MAX transmission 150M (With full copper low resistance network lines)
► Comply to IEEE802.3af/at
► Power Input:DC38～56V
► Plug＆Play
► Built-in high performance chip and high specification circuit board
► Stable:AKros AS1138, with lightning protection
► RJ45 full shield por
► Full bridge design, non polarity input
Overview
LNK-SP15WG PoE splitter, Develop used for Ethernet power supply application scenarios,
device does not support POE input Situation; support “IEEE 802.3af” and “IEEE 802.3at”
POE power supply; DC output 5V 3A; The POE signal can be separated into network
signal and electric power.
PoE splitter, output voltage of 5V use with the power supply equipment, It helps to expand
wireless city, Security monitoring and other poe practical place, and is not restricted by layout
of power line.
Technical Indexes
| Model | LNK-SP15WG |
| DC out | 5V 3A |
| Power | 15W |
| distance | 10BASE-T: cat 5 UTP(≤100m) 100BASE-TX: cat 5 and above UTP(≤100m) 1000BASE-TX: cat 5 and above UTP(≤100m) |
| Port | 1 GE(10/100/1000M) POE input+1 Network+1 DC output |
| POE | IEEE POE++/IEEE 802.3af /IEEE802.3at, IEEE802.1af DTE Power via MDI |
| Network protocol | IEEE 802.3i 10BASET； IEEE 802.3u 100BASETX； IEEE 802.3ab 1000BASE-T IEEE 802.3x Flow Control |
| Environmental | Working Temperature:-20°～55°C Storage temperature:-40°～85°C Working Humidity: 10%～90% RH non-condensing Storage Humidity: 5%～90% RH non-condensing |
| Radiation | CE mark,commercial,FCC Part 15 Class B,RoHS |
| Product Size | 250mm*28mm*24mm |
| Weight | 0.2kg |

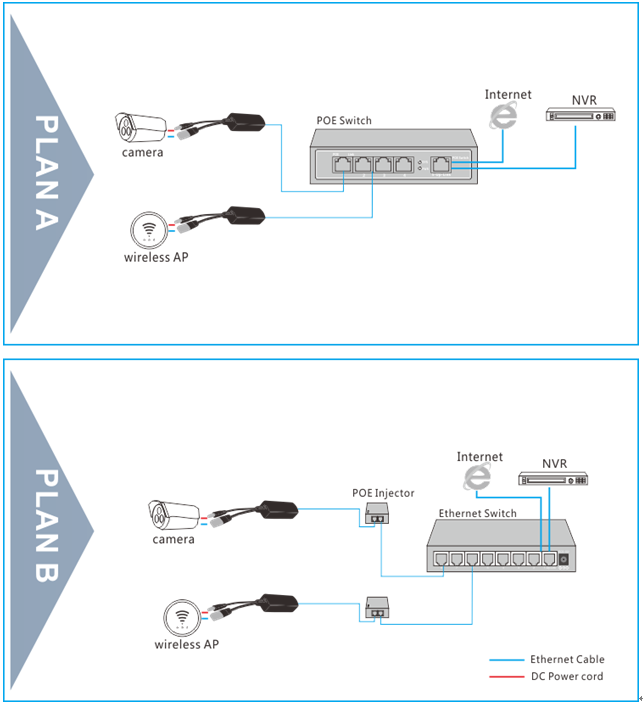

Application
Ordering Information
| Model | Description |
| LNK-SP15WG | PoE Splitter: 1x10/100/1000M POE input + 1xNetwork +1xDC output, MAX 15 watts, DC output 5V 3A |
