10/100M 24V 1A PoE Splitter

Name: 10100M 24V 1A PoE Splitter
Brand: E-link
Price: 1 USD

10/100M 24V 1A PoE Splitter Manufactures

Brand Name : E-link

Model Number : LNK-SP24W

Certification : ISO9001, CE, FCC, RoHS

Place of Origin : China

MOQ : 1pcs

Price : Negotiated

Payment Terms : T/T,PayPal

Supply Ability : 1000pcs/mouth

Delivery Time : 3-7working days

Packaging Details : standard export package

Keywords : PoE Power Splitter

DC out : 24V 1A

Power : 25W

Weight : 0.2kg

Working Temperature : -20°～55°C

Storage temperature : -40°～85°C

Contact Now

10/100M 24V 1A PoE Splitter

Advantage

· DC output 24V 1A

· 52V: MAX transmission 150M (With full copper low resistance network lines)

· Comply to IEEE802.3af/at

· Power Input:DC16～55V

· Plug＆Play

· Built-in high performance chip and high specification circuit board

· Stable:AKros AS1138, with lightning protection

· RJ45 full shield port

· Full bridge design, non polarity input

Overview

LNK-SP24W PoE splitter, Develop used for Ethernet power supply application scenarios,

device does not support POE input Situation; support “IEEE 802.3af” and “IEEE 802.3at”

POE power supply; DC output 24V 1A; The POE signal can be separated into network

signal and electric power.

Technical Indexes

Model	LNK-SP24W
DC out	24V 1A
Power	25W
distance	10BASE-T: cat 5 UTP(≤100m) 100BASE-TX: cat 5 and above UTP(≤100m)
Port	1 FE(10/100M) POE input+1 Network+1 DC output
POE	IEEE POE++/IEEE 802.3af /IEEE802.3at, IEEE802.1af DTE Power via MDI
Network protocol	IEEE 802.3i 10BASET； IEEE 802.3u 100BASETX； IEEE 802.3x Flow Control
Environmental	Working Temperature:-20°～55°C Storage temperature:-40°～85°C Working Humidity: 10%～90% RH non-condensing Storage Humidity: 5%～90% RH non-condensing
Radiation	CE mark,commercial,FCC Part 15 Class B,RoHS
Product Size	200mm22mm23mm
Weight	0.2kg

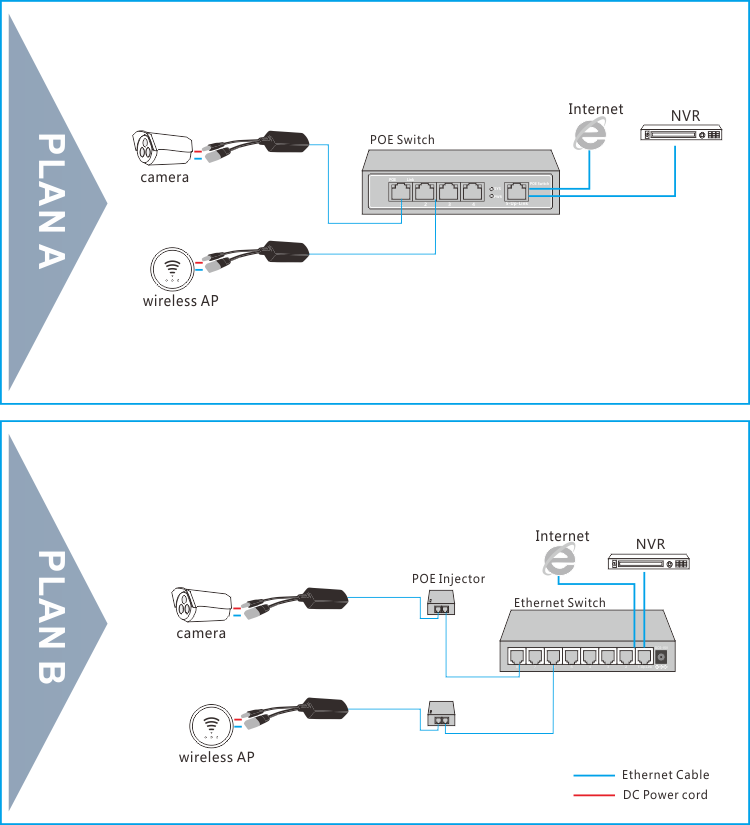

Application

10/100M 24V 1A PoE Splitter

Ordering Information

Model	Description
LNK-SP24W	PoE Splitter: 1x10/100M POE input + 1xNetwork +1xDC output, MAX 25 watts, DC output 24V 1A

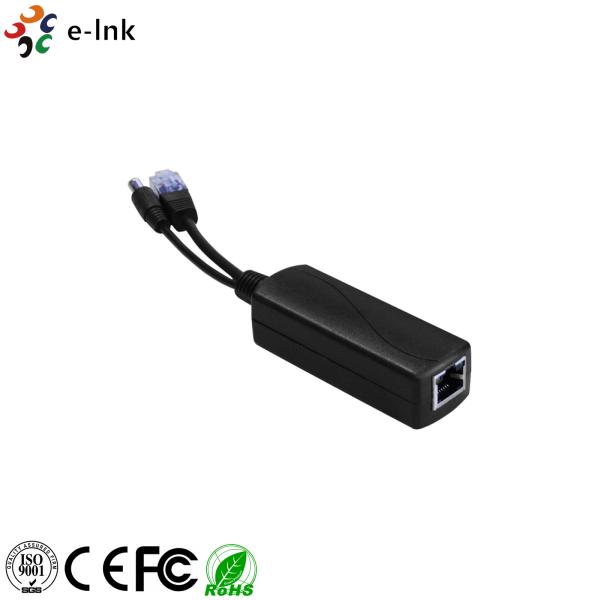

10/100M 24V 1A PoE Splitter Images
