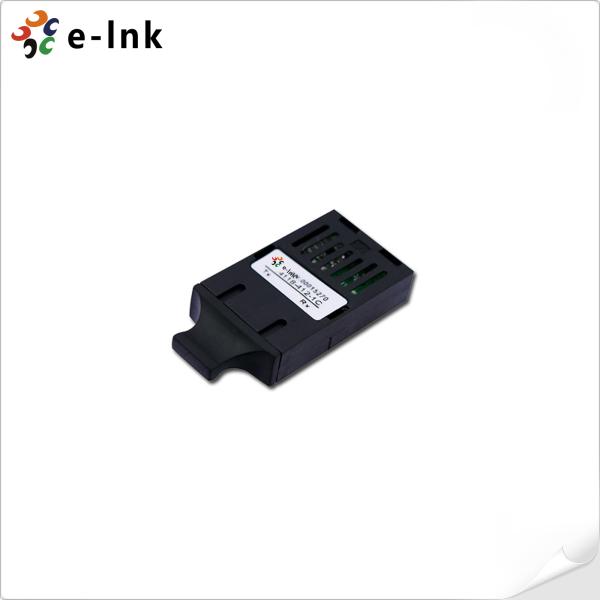

155M Single Fiber BIDI 1x9 Optical Transceiver

Name: 155M Single Fiber BIDI 1x9 Optical Transceiver
Brand: E-link
Price: 1 USD

155M Single Fiber BIDI 1x9 Optical Transceiver Manufactures

Brand Name : E-link

Model Number : LNK-BD9-155T3R5

Certification : CE, FCC, RoHS

Place of Origin : China

MOQ : 1pcs

Price : Negotiated

Payment Terms : T/T,PayPal

Supply Ability : 1000pcs/mouth

Delivery Time : 3-12working days

Packaging Details : standard export package

Product Type : SFP Fiber Transceivers

Working Temperature : 0~70℃

Supply Voltage : 0，3.6V

Data Rate : 1.25Gbps

Digital Diagnostic Monitoring : Yes

Contact Now

155M Single Fiber BIDI 1x9 Optical Transceiver

Advantage

l 155M Single Fiber BIDI 1x9 Optical Transceiver 1×9 package with SC connector

l 1310nm FP TX/1550nm PIN RX and
1550nm FP TX/1310nm PIN RX

l 20Km transmission with SMF

l +3.3V single power supply

l LVPECL compatible data input/output interface

l Low EMI and excellent ESD protection

l laser safety standard IEC-60825 compliant

l Compatible with RoHS

Overview

The 1×9 transceiver supports 155Mbps and 20km transmission distance with SMF.

The transceiver consists of two sections: The transmitter section incorporates a FP laser.

the receiver section consists of a PIN photodiode integrated with a trans-impedance preamplifier (TIA).

Application

· Ethernet

· Telecom

Ordering Information

Part Number	Product Description
LNK-BD9-155T3R5	155M Single Fiber BIDI 1x9 Optical Transceiver1310TX/1550RX, SC,20km, 0°C~+70°C
LNK-BD9-155T5R3	155M Single Fiber BIDI 1x9 Optical Transceiver1550TX/1310RX, SC,20km, 0°C~+70°C

155M Single Fiber BIDI 1x9 Optical Transceiver Images
