Unmanaged Industrial 8-port 10/100/1000BASE-T (PoE+) Ethernet Switch
Product Advantages
► 8x10/100/1000Base-TX with PoE+
► Support IEEE802.3at PoE(30W per port)
► RJ45 Port Supports 10/100/1000Mbps-Full/Half-duplex, Auto-negotiation, Auto MDI/MDIX
► Supports 802.3x Flow control
► IEEE 802.3az Energy Efficient Ethernet (EEE)
► Supports 16K MAC address
► 2M bits frame buffer memory
► Supports DIN-Rail and Wall-mount installation
► Redundant Power Inputs
► -40°C to 80°C (-40°F to 176°F) operating temperature
Overview
LNK-IMC008GP is an 8 ports 10/100/1000Base-TX Hardened Ethernet PoE switch. The Switch provides 8 port PoE+ function for kinds of Powered Devices to receive power as well as data over the RJ-45 cable. With its reliable design and ease of use, the product is a great choice for integrating networks consisting of network devices such as IP cameras and wireless access points between remote locations.
Technical Indexes
| Ethernet |
| Packet Buffer Memory: | 2M bits |
| Switch Fabric: | 16 Gbps |
| Max Packet Length: | 10K Bytes |
| Address Table Size: | 16K MAC Addresses |
| Interface |
| Connector: | 8 x RJ45 |
| Environmental |
| Operating Temperature: | -40°C to 80°C (-40°F to 176°F) |
| Storage Temperature: | -40°C to 85°C (-40°F to 185°F) |
| Relative Humidity: | 5% to 95% non-condensing |
| MTBF | > 200,000 hrs |
| Electrical and Mechanical |
| Input Power: | 48~57VDC, Redundant Power (6-pin Terminal Block) |
| Power Consumption: | 245W Max. (PoE in use) |
| 5W Max. (PoE not in use) |
| Standard: | IEEE802.3af/at |
| PoE: |
| Port: | RJ45 Port 1 ~ Port 8 |
| Max. Power per Port: | 30W Max per port (Alternative B Mode) |
| Protection: |
| Power Input Overload: | Automatic Resettable |
| Reverse Polarity: | Present |
| LED Indicators: |
| Power: | Power1, Power2 Status |
| PoE: | Per Port Status |
| Ethernet (Per Port): | Link/Activity |
| Dimensions (WxDxH): | 150 x 115 x 50 mm |
| Weight: | 0.6Kg |
| Casing: | Aluminum Case |
| Mounting Options: | DIN-Rail / Wall-mount |

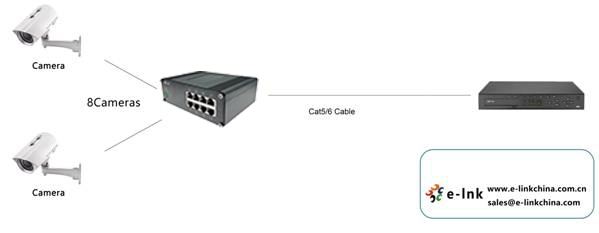

Application
Ordering Information
| Model | Description |
| LNK-IMC008GP | Industrial 8-port 10/100/1000BASE-T (8-port PoE+) Ethernet Switch |
| Mounting Options | ► Default DIN-Rail Bracket installed; Wall Mount Bracket is included. |
| Power Options | ► 240W/5A 48VDC DIN-Rail Power Supply. Open Wire for Terminal Block. |
| ► Power Supply is to be purchased separately. |
|
|

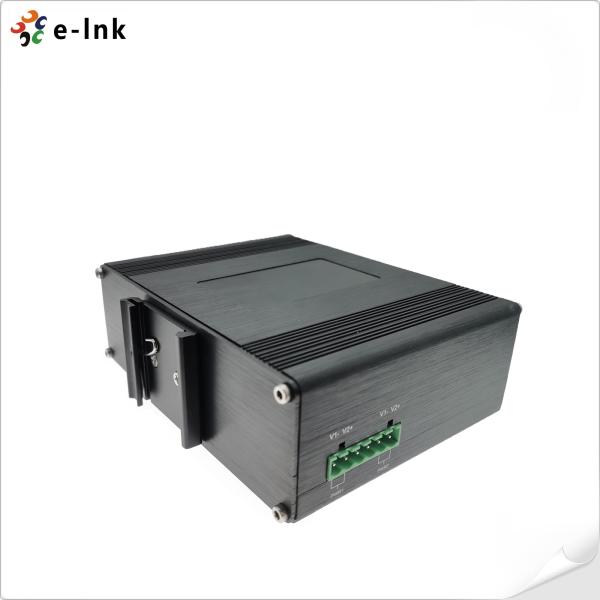

Unmanaged Industrial 8-port 10/100/1000BASE-T (PoE+) Ethernet Switch Images
|
