Industrial 6-Port 10/100T 802.3af/at PoE + 3-Port 100BASE-FX Ethernet Switch
Product Advantages
► 6 10/100Base-TX + 3 100Base-FX
► 10/100Mbps RJ45 Port Supports Full/Half-duplex, Auto-negotiation, Auto MDI/MDIX
► Supports IEEE 802.3af/at PoE+ (30W per port)
► SFP, SC, FC, ST Optional
► Supports 802.3x Flow control
► IEEE 802.3az Energy Efficient Ethernet (EEE)
► Redundant Power Inputs
► Supports DIN-Rail mounting installation
► -40°C to 80°C (-40°F to 176°F) operating temperature
Overview
LNK-IMC306P Series is 6 ports 10/100Base-TX + 3 port 100Base-FX Hardened PoE switch. The Switch provides 6 port PoE+ function for kinds of Powered Devices to receive power as well as data over the RJ-45 cable. The 100Base-FX supports 1 or 2 core Single-mode or Multi-mode fiber. With its reliable design and ease of use, the product is a great choice for integrating networks consisting of network devices such as IP cameras and wireless access points between remote locations.
Technical Indexes
| Ethernet |
| Standards: | IEEE802.3 10BASE-T |
| IEEE802.3u 100BASE-TX/FX |
| IEEE802.3x Flow Control |
| IEEE 802.3az Energy Efficient Ethernet (EEE) |
| IEEE802.3af Power over Ethernet |
| IEEE802.3at Power over Ethernet |
| Forward & Filtering Rate: | 14,880pps (10Mbps) |
| 148,800pps (100Mbps) |
| Packet Buffer Memory: | 512K bits |
| Processing Type: | Store-and-Forward |
| Address Table Size: | 1024 MAC Addresses |
| Interface |
| Connector: | 6 x RJ45 |
| Optical Port: | 3 x 100Base-FX (SFP, SC, FC, ST Optional) |
| Environmental |
| Operating Temperature: | -40°C to 80°C (-40°F to 176°F) |
| Storage Temperature: | -40°C to 85°C (-40°F to 185°F) |
| Relative Humidity: | 5% to 95% non-condensing |
| MTBF | > 200,000 hrs |
| Electrical and Mechanical |
| Input Power: | 48~57VDC, Redundant Power (6-pin Terminal Block) |
| Power Consumption: | 180W Max. (PoE in use) |
| 5W Max. (PoE not in use) |
| Standard: | IEEE802.3af/at |
| PoE: |
| Port: | RJ45 Port 1 ~ Port 6 |
| Max. Power per Port: | 30W Max per port (Alternative B Mode) |
| Protection: |
| Power Input Overload: | Automatic Resettable |
| Reverse Polarity: | Present |
| LED Indicators: |
| Power: | PWR Status |
| PoE: | Per Port Status |
| Ethernet (Per Port): | Link/Activity |
| Fiber: | FX1, FX2, FX3 |
| Dimensions (WxDxH): | 150 x 115 x 50 mm |
| Weight: | 0.6Kg |
| Casing: | Aluminum Case |
| Mounting Options: | DIN-Rail |

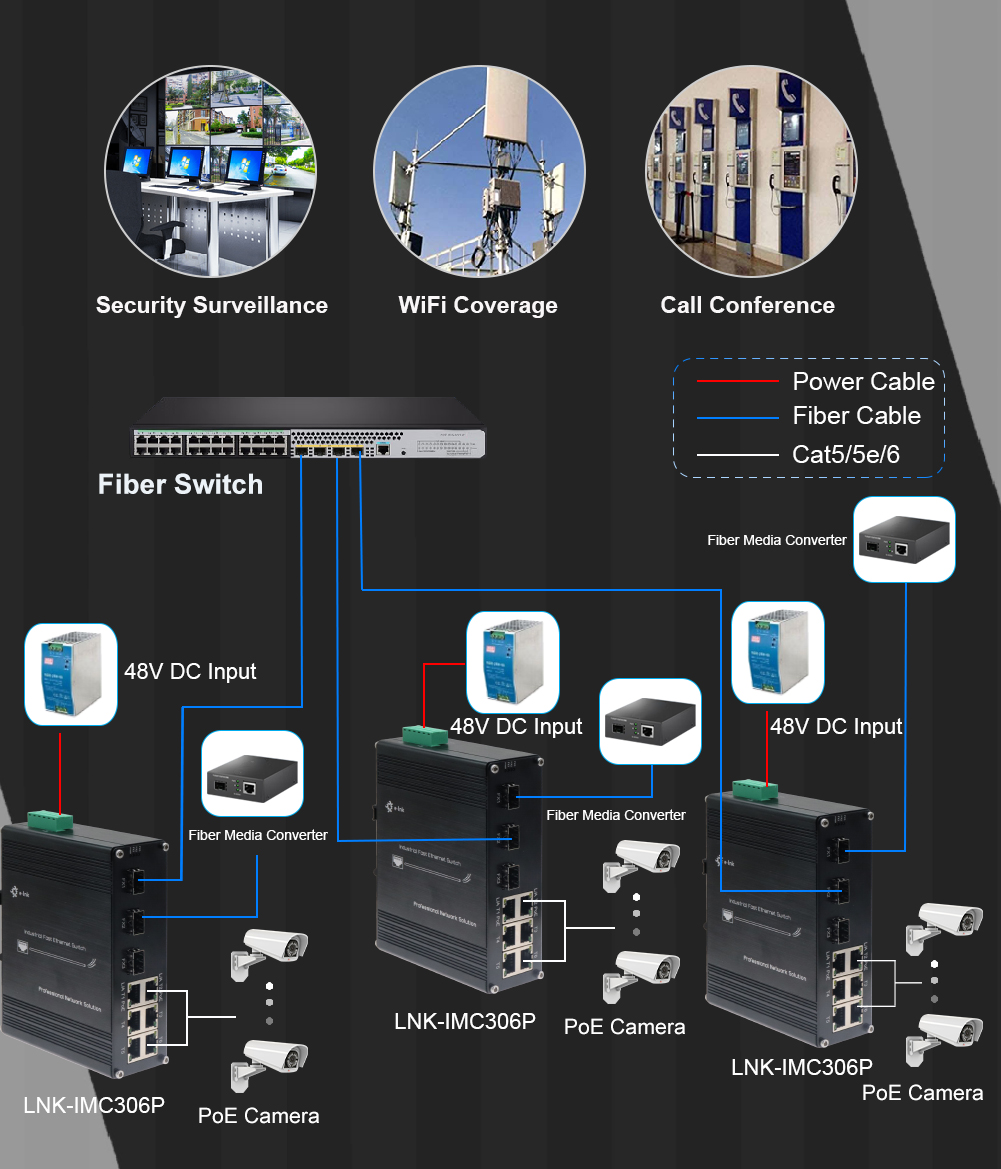

Application
Ordering Information
| Model | Description |
| LNK-IMC306P | Industrial Ethernet Switch: 6-Port 10/100Base-TX (6-port PoE+) + 3-port 100BASE-FX Fiber, Multimode, Dual Fiber, SC, 2KM |
| LNK-IMC306P-20 | Industrial Ethernet Switch: 6-Port 10/100Base-TX (6-port PoE+) + 3-port 100BASE-FX Fiber, Single Mode, Dual Fiber, SC, 20KM |
| LNK-IMC306PS-20 | Industrial Ethernet Switch: 6-Port 10/100Base-TX (6-port PoE+) + 3-port 100BASE-FX Fiber, Single Mode, Single Fiber, SC, 20KM |
| LNK-IMC306PF-20 | Industrial Ethernet Switch: 6-Port 10/100Base-TX (6-port PoE+) + 3-port 100BASE-FX Fiber, Single Mode, Single Fiber, FC, 20KM |
| LNK-IMC306P-SFP | Industrial 6-port 10/100BASE-T (6-port PoE+) + 3-port 100BASE SFP Ethernet Switch |
| SFP Options | ► SFP option. Please select your SFP on our SFP Options Page |
| ► SFP module is to be purchased separately. |
| Mounting Options | ► Default DIN-Rail Bracket installed. |
| Power Options | ► 240W/5A 48VDC DIN-Rail Power Supply. Open Wire for Terminal Block. |
| ► Power Supply is to be purchased separately. |
|
|
