Industrial 10/100/1000Mbps 802.3at PoE+ Splitter Output Voltage 5VDC
Industrial 10/100/1000Mbps 802.3at PoE+ Splitter Output Voltage 5VDC Advantages
► Splits power and data from PoE Input
► One RJ-45 PoE Port (Data & Power In)
► One RJ-45 Port (Data Out)
► One 5VDC Output (2-pin Terminal Block)
► Support IEEE802.3af/at PoE
► Support 10/100/1000Base-T
► Distance up to 100 meters
► Short-circuit protection for power output
► IP40 rugged metal housing and fanless
► Support DIN-Rail & Wall-mount installation
► Extensive LED indicators for PoE diagnostics
► Wide operating temperature -40 ~ 80°C
Industrial 10/100/1000Mbps 802.3at PoE+ Splitter Output Voltage 5VDC Overview
LNK-INS301-5V series is an Industrial Grade, Gigabit Ethernet, PoE Splitter, designed to deliver data, via RJ-45 Ethernet connector, and electrical power, via screw terminal block, to non-PoE devices. This device saves the high cost of running separate electrical service to edge devices.

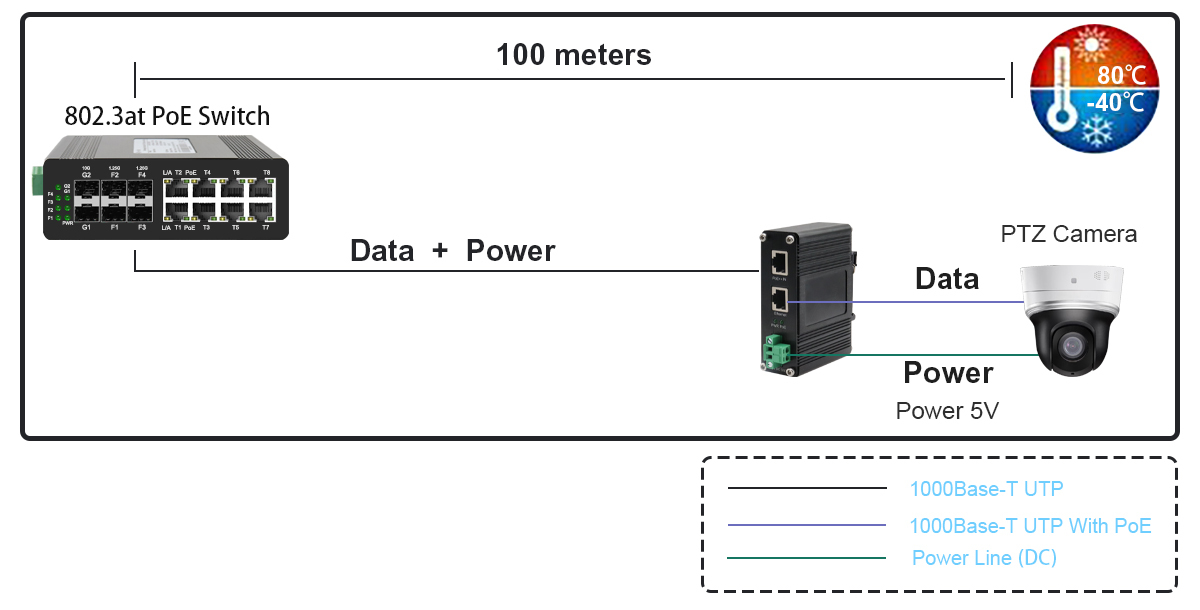

The LNK-INS301-5V acts as PD equipment and can be powered by standard PoE IEEE802.3af/at PSE (Power Source Equipment) switches or work when paired with LNK-INJ301 PoE Injectors. The data transmission, up to Gigabit speeds, with power output voltages of 5VDC, run simultaneously up to the Ethernet limit of 100 meters. Simple settings of the LNK-INS301-5V, make it a plug and play device, requiring no tools or software configuration, and provides ease of use, with flexible installation and high reliability.
Industrial 10/100/1000Mbps 802.3at PoE+ Splitter Output Voltage 5VDC Technical Indexes
| Ethernet |
| Standards: | IEEE 802.3 10Base-T Ethernet |
| | IEEE 802.3u 100Base-TX Fast Ethernet |
| | IEEE 802.3ab 1000Base-T Gigabit Ethernet |
| | IEEE 802.3af Power over Ethernet |
| | IEEE 802.3at Power over Ethernet Plus |
| Processing Type: | Forward |
| | Half-duplex, Full-duplex |
| Forward Filter Rate: | 1,488,000pps (1000Mbps) |
| Cabling: | 1000Base-T: Cat5 or above |
| Maximum Distance: | Cat5 UTP up to 100m |
| Interface: | “PoE (Power + Data)” Input Port: 1 x RJ-45 10/100/1000Base-T |
| | “Data” Out Port: 1 x RJ-45 10/100/1000Base-T |
| | DC Out Plug Connector: 1 removable 2-Pin terminal block |
| Power over Ethernet |
| PoE Standard: | IEEE 802.3af/at Power over Ethernet |
| Number of devices that can be powered: | 1 (DC5V) (Vary on device’s power requirement; cannot be over 20 watts.) |
Industrial 10/100/1000Mbps 802.3at PoE+ Splitter Output Voltage 5VDC Ordering Information
| Model | Description |
| LNK-INS301-5V | Industrial IEEE802.3at Gigabit PoE Splitter Output Voltage 5VDC, maximum output of 20W at 5VDC, Support DIN-Rail mounting and Wall mounting installation, -40 to 80°C operating temperature |
| Mounting Options | ► Default DIN-Rail Bracket installed; Wall Mount Bracket is included. |
|
|
Industrial 10/100/1000Mbps 802.3at PoE+ Splitter Output Voltage 5VDC Images
|
