Industrial L2 Managed Ethernet Switch DIN-Rail Mount IP40 Aluminum Case
Industrial L2 Managed Ethernet Switch DIN-Rail Mount IP40 Aluminum Case Features
► Support 8x10/100/1000Base-T + 4x1000Base-X SFP + 2x 10GBase-SR/LR SFP
► 10/100/1000Mbps RJ45 Port supports Full/Half-duplex, Auto-negotiation, Auto MDI/MDIX
► Support connecting USB-C port for easy management, without the need to access the RS232 serial port at all
► 9K Bytes Jumbo Frame
► IEEE 802.3az Energy Efficient Ethernet (EEE)
► IP40 Aluminum Case
► Supports DIN-Rail installation
► -40°C to 80°C (-40°F to 176°F) operating temperature
Industrial L2 Managed Ethernet Switch DIN-Rail Mount IP40 Aluminum Case Overview
ETH-IMC2408M Series is the managed 8-port 10/100/1000Base-T + 4-port 1000Base-X SFP + 2-port 10G Base-SR/LR SFP+ hardened Ethernet switch. The Switch has 8 TP ports and 6 fiber ports. TP (RJ45) supports 10/100/1000Base-T(X), Full/Half duplex mode, and auto MDI/MDI-X connection; the 1000Base-X SFP and 10G SFP+ support 1 or 2 core Single-mode or Multi-mode fiber. With its reliable design and ease of use, the product is a great choice for integrating networks consisting of network devices such as IP cameras and wireless access points between remote locations.
Industrial L2 Managed Ethernet Switch DIN-Rail Mount IP40 Aluminum Case Technical Indexes
| RS485 Serial Interface (Optional) |
| Physical interface | Industrial standard 3-pin screw terminal |
| Data type | 1Ch RS485 Bi-Direction |
| RS-485 signals | Data+, Data-, GND |
| Serial port line distance (copper) | 1000 meters |
| Baud rate | 0 ~ 800kbps |
| Electrical and Mechanical |
| Input Power: | 12~48VDC, Redundant Power (6-pin Terminal Block) |
| Power Consumption: | 8W Max.(PoE in Use<240W) |
| Protection: |
| Power Input Overload: | Automatic Resettable |
| Reverse Polarity: | Present |
| DIP Switch |
| 4-digit DIP switch function
| DIP | Function | Settings |
| SW 1 | VLAN | ON - Enabled | OFF - Disabled |
| SW 2 | Ring Management | ON - Enabled | OFF - Disabled |
| SW 3 | Reserved | ON - Reserved | OFF - Reserved |
| SW 4 | Reserved | ON - Reserved | OFF - Reserved |
| LED Indicators: |
| PWR: | Power Status |
| Ethernet (Per Port): | Link/Activity |
| Fiber: | Gigabit SFP Port: F9~F12 |
| 10G SFP+ Port: F13, F14 |
| Dimensions (WxDxH): | 149 x 114 x 50 mm |
| Mounting Options: | DIN-Rail mount |
Industrial L2 Managed Ethernet Switch DIN-Rail Mount IP40 Aluminum Case Ordering Information
| Model | Description |
| ETH-IMC2408M | Industrial L2+ 8-Port 10/100/1000T + 4-Port 1G SFP + 2-Port 10G SFP+ Managed Ethernet Switch |
| SFP Options | ► SFP option. Please select your SFP on our SFP Options Page |
| ► SFP module is to be purchased separately. |
| Mounting Options | ► Default DIN-Rail Bracket installed |
| Power Options | ► DIN-Rail Power Supply. Open Wire for Terminal Block. |
| ► Power Supply is to be purchased separately. |
Industrial L2 Managed Ethernet Switch DIN-Rail Mount IP40 Aluminum Case Application Picture

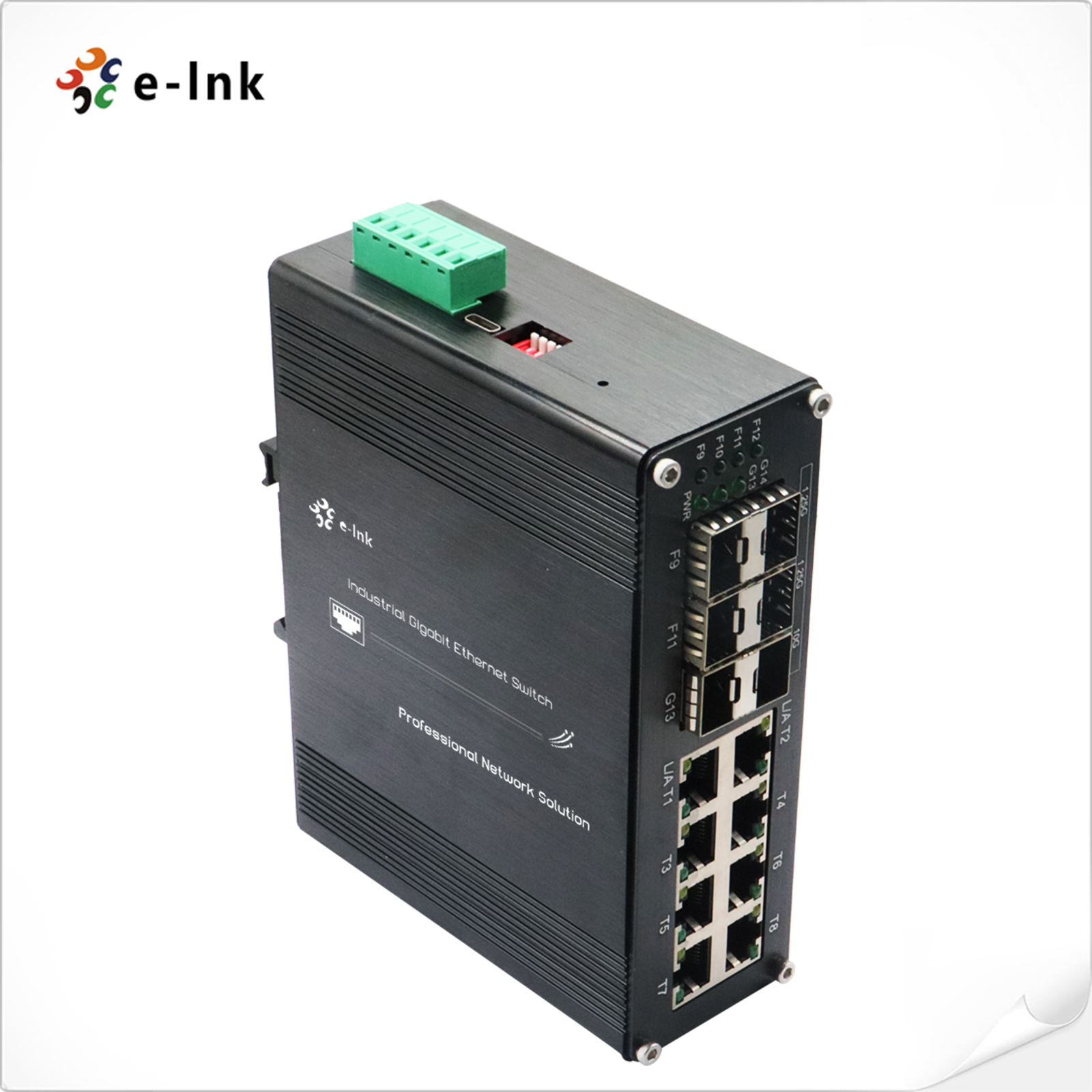

Industrial L2 Managed Ethernet Switch DIN-Rail Mount IP40 Aluminum Case Pictures
