Industrial L2 Managed Ethernet Switch 24 ports Rackmount IP40 Aluminum Case
Industrial L2 Managed Ethernet Switch 24 ports Rackmount IP40 Aluminum Case Features
► Support 24x10/100/1000Base-T + 4x1000Base-X SFP + 1xRS485
► 10/100/1000Mbps RJ45 Port supports Full/Half-duplex, Auto-negotiation, Auto MDI/MDIX
► IEEE802.3af/at compliant
► DIP Switch supports one-key VLAN, one-key Ring Management, PoE Reset and 250m PoE Network
► Support connecting USB-C port for easy management, without the need to access the RS232 serial port at all
► 10K Bytes Jumbo Frame
► IEEE 802.3az Energy Efficient Ethernet (EEE)
► IP40 Aluminum Case
► Supports 1U 19” Rackmount installation
► -40°C to 80°C (-40°F to 176°F) operating temperature
Industrial L2 Managed Ethernet Switch 24 ports Rackmount IP40 Aluminum Case Overview
ETH-IMC2424MP Series is the L2+ managed rackmount 24-port 10/100/1000Base-T 802.3at PoE + 4-port 1000Base-X SFP hardened Ethernet switch. The Switch has 24 TP ports and 4 fiber ports. The TP (RJ45) supports 10/100/1000Base-T(X), Full/Half duplex mode, and auto MDI/MDI-X connection; the 1000Base-X SFP port supports 1 or 2 core Single-mode or Multi-mode fiber. With its reliable design and ease of use, the product is a great choice for integrating networks consisting of network devices such as IP cameras and wireless access points between remote locations.
Industrial L2 Managed Ethernet Switch 24 ports Rackmount IP40 Aluminum Case Technical Indexes
| Ethernet |
| Standards: | IEEE802.3 10BASE-T |
| IEEE802.3u 100BASE-TX/FX |
| IEEE802.3ab 1000BASE-T |
| IEEE802.3z 1000BASE-X |
| IEEE802.3p QoS |
| IEEE802.1d Spanning Tree |
| Forward & Filtering Rate: | 14,880pps (10Mbps) |
| 148,800pps (100Mbps) |
| 1,488,000pps (1000Mbps) |
| Packet Buffer Memory: | 12M bits |
| Processing Type: | Store-and-Forward |
| Backplane bandwidth | 110Gbps |
| Max Packet Length: | 10K Bytes Jumbo Frame |
| Address Table Size: | 8K MAC Addresses |
| Electrical and Mechanical |
| Input Power: | 48~57VDC, Redundant Power (6-pin Terminal Block) |
| Power Consumption: | 15W Max.(PoE in Use<720W) |
| Protection: |
| Power Input Overload: | Automatic Resettable |
| Reverse Polarity: | Present |
| DIP Switch |
| 4-digit DIP switch function
| DIP | Function | Settings |
| SW 1 | VLAN | ON - Enabled | OFF - Disabled |
| SW 2 | Ring Management | ON - Enabled | OFF - Disabled |
| SW 3 (to be upgraded) | 250m PoE Network | ON - Enabled | OFF - Disabled |
| SW 4 (to be upgraded) | PoE Reset | ON - Enabled | OFF - Disabled |
| LED Indicators: |
| PWR: | Power Status |
| Ethernet (Per Port): | Link/Activity |
| PoE | PoE Status (T1~T24) |
| Fiber: | Gigabit SFP Port: F1~F4 |
| Dimensions (L x W x H): | 440mm x 300mm x 45mm |
| Mounting Options: | Rackmount |
Industrial L2 Managed Ethernet Switch 24 ports Rackmount IP40 Aluminum Case Ordering Information
| Model | Description |
| ETH-IMC2424MP | Industrial L2+ Rackmount 24-Port 10/100/1000T 802.3at PoE + 4-Port 1000X SFP Managed Ethernet Switch |
| SFP Options | ► SFP option. Please select your SFP on our SFP Options Page |
| ► SFP module is to be purchased separately. |
| Mounting Options | ► Rackmount Installation |
| Power Options | ► Industrial Power Supply. Open Wire for Terminal Block. |
| ► Power Supply is to be purchased separately. |

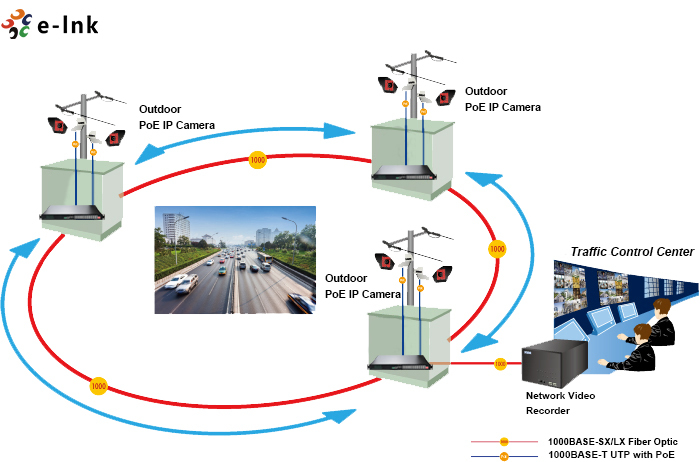

Industrial L2 Managed Ethernet Switch 24 ports Rackmount IP40 Aluminum Case Application piture
Industrial L2 Managed Ethernet Switch 24 ports Rackmount IP40 Aluminum Case pitures
