Mini Industrial 3-Port 10/100/1000T + 1-Port 100/1000X SFP PD Switch with PoE Splitter Function

Name: Mini Industrial 3Port 101001000T 1Port 1001000X SFP PD Switch with PoE Splitter Function
Brand: E-link
Price: 1 USD

Mini Industrial 3-Port 10/100/1000T + 1-Port 100/1000X SFP PD Switch with PoE Splitter Function Manufactures

Brand Name : E-link

Model Number : LNK-IMC103G-SFP-PD

Certification : ISO9001, CE, FCC, RoHS

Place of Origin : China

MOQ : 1 pcs

Price : Negotiation

Payment Terms : L/C,T/T,Western Union,MoneyGram,Paypal

Supply Ability : 1000 pcs/month

Delivery Time : 3-12 working days

Packaging Details : Carton Packaging

Mounting Options : DIN-Rail / Wall-mount

Dimensions (WxDxH) : 95 x 82 x 30 mm

Operating Temperature : -40°C to 75°C (-40°F to 167°F)

Storage Temperature : -40°C to 85°C (-40°F to 185°F)

Input Power : 12~57VDC , Redundant Power (6-pin Terminal Block)

Optical Port : 1 x SFP 1000Base-X or 100Base-FX (auto detection)

Phoenix Connector : Support 5-24V DC output (Max 3A, Max 60W)

Contact Now

Mini Industrial 3-Port 10/100/1000T + 1-Port 100/1000X SFP PD Switch with PoE Splitter Function

Advantages

► 100/1000BASE-X SFP slots for SFP type auto detection

► 3x 10/100/1000M RJ-45 port

► 1x PoE PD type 10/100/1000M RJ-45 port

► Complies with IEEE 802.3az Energy Efficient Ethernet (EEE)

► Support 5~24V DC output (Max 3A, Max 60W)

► Supports DIN-Rail and Wall-mount installation

Overview

The LNK-IMC103G-SFP-PD is Mini Industrial 3-Port 10/100/1000T + 1-Port 100/1000X SFP PD Switch with PoE Splitter Function.

This switch is combined with four 10/100/1000M RJ-45 ports and one 100/1000M optical fiber SFP slot. The “PoE IN” RJ-45 port accepts PoE (Power over Ethernet) power input from the remote PSE switch or PoE injector, so this switch can work without additional power supply and support 5~24V DC output (Max 3A, Max 60W) function. The additional 100Base-FX/1000Base-X self-adaption SFP port can extend the RJ-45 port to long-distance optical fiber interface.

The LNK-IMC103G-SFP-PD product is suitable for 35mm DIN rail installation. An additional L-shaped bracket can be used to replace the DIN rail plate, so the user can install the adaptor on the wall or a flat surface.


Mini Industrial 3-Port 10/100/1000T + 1-Port 100/1000X SFP PD Switch with PoE Splitter Function

Ordering Information

Model	Description
LNK-IMC103G-SFP-PD	Mini Industrial 3-Port 10/100/1000T + 1-Port 100/1000X SFP PD Switch with PoE Splitter Function
Mounting Options	► Default DIN-Rail Bracket installed; Wall Mount Bracket is included.

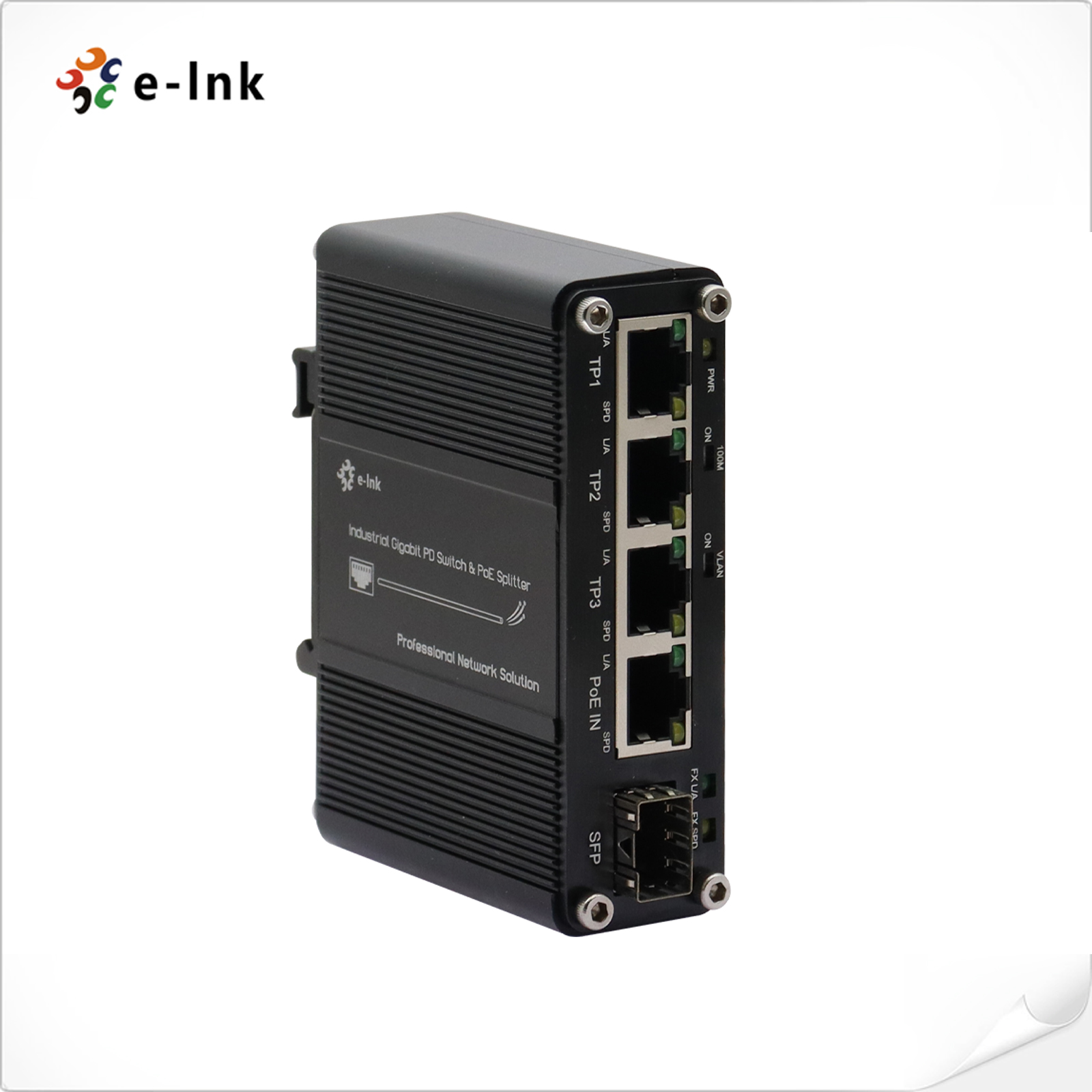

Mini Industrial 3-Port 10/100/1000T + 1-Port 100/1000X SFP PD Switch with PoE Splitter Function Images
