90W PoE Injector with Power Cord 10/100/1000/2.5G/5G/10G 802.3bt
90W PoE Injector Advantages
► 2x 10G Mbps RJ45 ports;
► Support 10/100/1000/2.5G/5G/10G Base-TX;
► Support IEEE802.3bt standard, and compatible with IEEE802.3af standard and IEEE802.3at standard;
► Single PoE port output power is 90W, the voltage is 48~56VDC;
► Support network port, lightning-proof power input port (the secondary lightning protection);
► No fans, natural cooling, small and exquisite, no noise design, suitable for desktop or wall;
► Power plug can be chosen, such as EU, UK, US, etc. (confirm with relevant personnel).

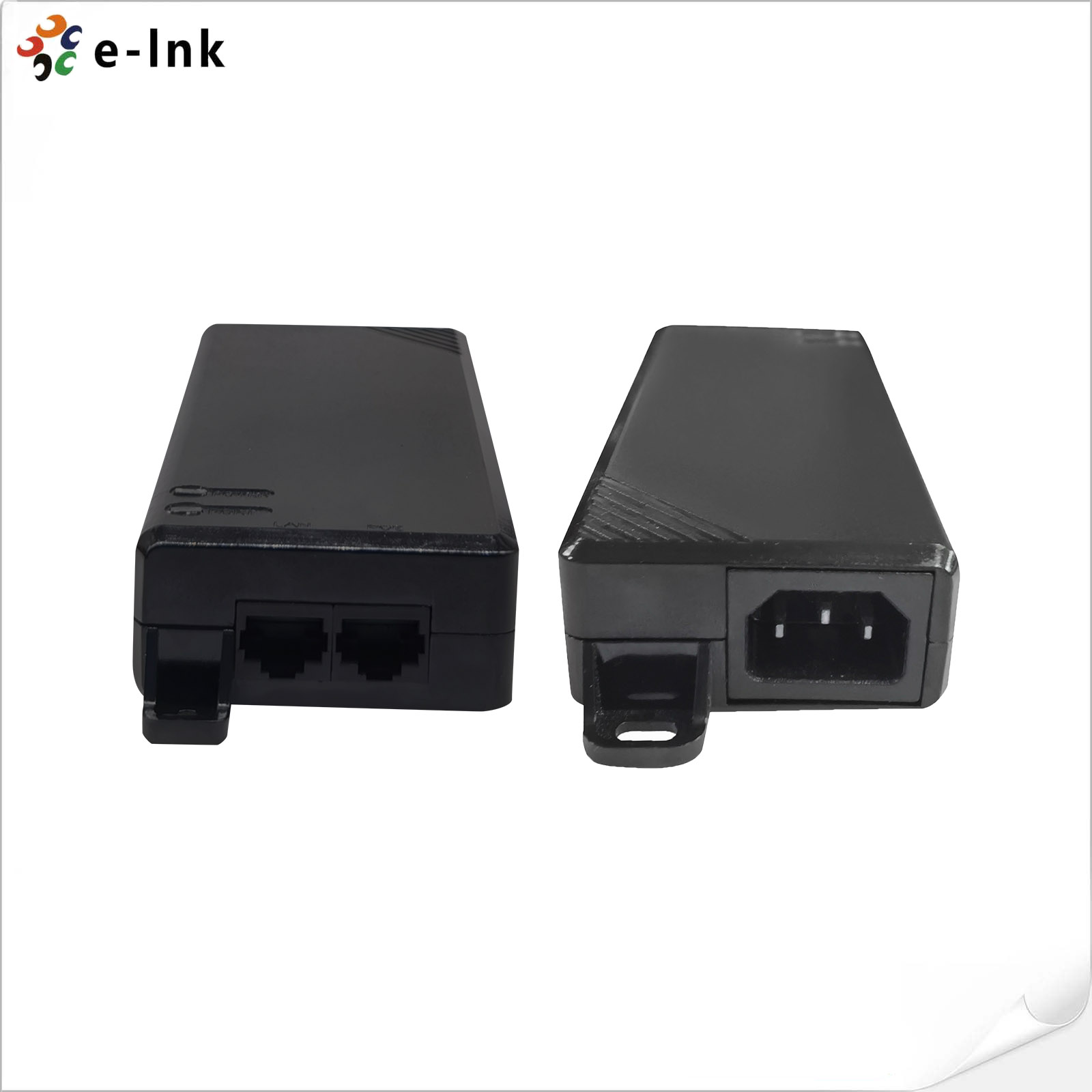

90W PoE Injector Picture
90W PoE Injector Technical Indexes
| Ethernet |
| Standards: | IEEE 802.3i 10BASET |
| | IEEE 802.3u 100BASETX |
| | IEEE 802.3x Flow Control |
| | IEEE 802.1ab 10000BASET |
| | IEEE 802.1af DTE Power via MDI |
| | Support IEEE802.3bt standard, and downward compatible with IEEE 802.3af/ IEEE 802.3at |
| Connector Type: | 2x copper cable RJ45 ports |
| Working Speed: | 10/100/1000/2.5G/5G/10G |
| Copper Type: | 10G BASE-T: Cat 7 or higher up to 30m 5G Base-T: Cat 7 or higher up to 30m 2.5G Base-T: Cat 6A or higher up to 100m 1G Base-T: Cat 6 or higher up to 100m 100M Base-T: Cat 6 or higher up to 100m |
| Interface |
| Connector: | LAN: 1 x RJ-45 STP, “Data” Input Port POE: 1 x RJ-45 STP, “Data + Power” Output Port AC Connector: 1 x AC Input power socket |
| PoE (Power over Ethernet) |
| Standard: | IEEE 802.3bt |
| | IEEE 802.3at |
| | IEEE 802.3af |
| Electrical and Mechanical |
| Input Voltage Range: | 100-240V AC @50/60Hz, 1.5A max |
| Output Voltage: | 48-56V DC |
| Single PoE Port Output: | Power 90W |
| Dimensions (WxDxH): | 170 x 60 x 30mm |
| Weight: | 0.25kg |
| Casing: | Plastic Case |
| Mounting Options: | Desktop |
| Environmental |
| Operating Temperature: | -20°～65°C |
| Storage Temperature: | -40°～ 85°C |
| Humidity: | 10%～90% non-condensing (Working ); 10%～95% non-condensing (Storage) |
| MTBF | 190,000 hours |
| Warranty | 1 year warranty |
| Standard Accessories |
| Package Contents | LNK-PSE95-10G |
| | User's manual |
| | Power Cord |
| Regulatory Approvals |
| ISO9001, CE, FCC, RoHS |
| FCC part 15, Class B |
| Network Port Protection: meet the IEC61000-4-2(ESD) |

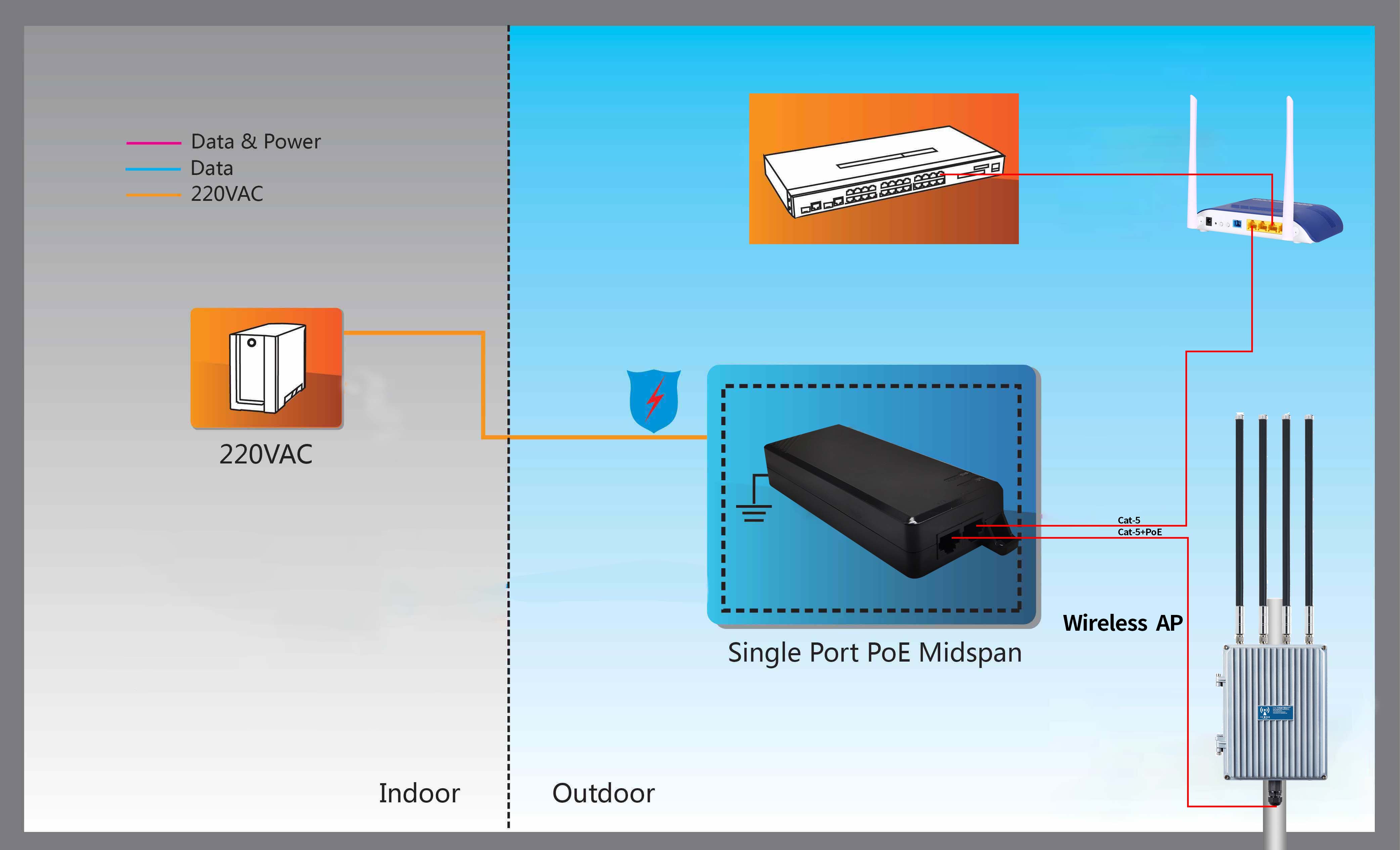

90W PoE Injector Application
90W PoE Injector Ordering Information
| Model | Description |
| LNK-PSE95-10G | Commercial type 10G PoE Injector with power cord:10/100/1000/2.5G/5G/10G, IEEE 802.3af/at/bt 90W,1-port Ethernet Input + 1-port PoE+ Output,AC100-240V power input |
