Industrial 8-Port 10/100/1000M/2.5G + 2-Port 1.25G/2.5G/10G SFP+ Managed Ethernet Switch
Industrial Managed Ethernet Switch Advantages
► -40°C to 80°C (-40°F to 176°F) operating temperature.
► Support 8x10/100/1000M/2.5G Base-T + 2x1.25G/2.5G/10G SFP+ Base-X SFP
► 10/100/1000M/2.5Gbps RJ45 Port supports Full/Half-duplex, Auto-negotiation, Auto MDI/MDIX
► Support connecting USB-C port for easy management, without the need to access the RS232 serial port at all
► IEEE 802.3az Energy Efficient Ethernet (EEE)
► IP40 Aluminum Case
► Supports DIN-Rail installation
► -40°C to 80°C (-40°F to 176°F) operating temperature
Overview
LNK-IMC208-2.5GM-SFP+ is the managed 8-port 10/100/1000M/2.5G Base-T + 2-port 1.25G/2.5G/10G SFP+ Base-X hardened Ethernet switch. The Switch has 8 TP ports and 2 fiber ports. The TP (RJ45) supports 10/100/1000M/2.5G Base-T(X), Full/Half duplex mode, and auto MDI/MDI-X connection; the SFP Base-X port supports 1 or 2 core Single-mode or Multi-mode fiber. With its reliable design and ease of use, the product is a great choice for integrating networks consisting of network devices such as IP cameras and wireless access points between remote locations.
Industrial Managed Ethernet Switch Picture

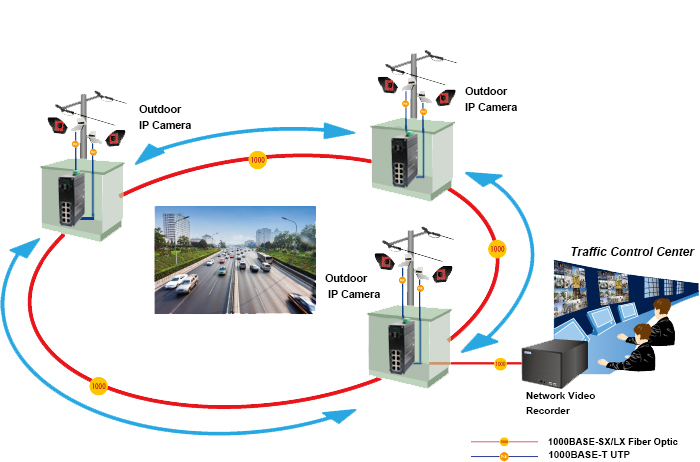

Application
Ordering Information
| Model | Description |
| LNK-IMC208-2.5GM-SFP+ | Industrial 8-Port 10/100/1000M/2.5G + 2-Port 1.25G/2.5G/10G SFP+ Managed Ethernet Switch |
| SFP Options | ► SFP+ module is to be purchased separately. |
| Mounting Options | ► Default DIN-Rail Bracket installed |
| Power Options | ► 24W/1A 24VDC DIN-Rail Power Supply. Open Wire for Terminal Block. |
| ► Power Supply is to be purchased separately. |
