Industrial 8-Port 10/100/1000M/2.5G 802.3bt PoE + 2-Port 10G/2.5G/1.25G SFP Managed Ethernet Switch

Name: Industrial 8Port 101001000M25G 8023bt PoE 2Port 10G25G125G SFP Managed Ethernet Switch
Brand: E-link
Price: 1 USD

Industrial 8-Port 10/100/1000M/2.5G 802.3bt PoE + 2-Port 10G/2.5G/1.25G SFP Managed Ethernet Switch Manufactures

Brand Name : E-link

Model Number : LNK-IMC208-2.5GP90M-SFP+

Certification : ROHS,FCC,CE

Place of Origin : China

MOQ : 1 pcs

Price : Negotiation

Payment Terms : L/C,T/T,Western Union,MoneyGram,Paypal

Supply Ability : 1000 pcs/month

Delivery Time : 3-12 working days

Packaging Details : Carton Packaging

Ethernet Port : 8 x 10/100/1000M/2.5G RJ45

Optical Port : 2 x 1.25G/2.5G/10G SFP

Operating Temperature : -40°C to 80°C (-40°F to 176°F)

Storage Temperature : -40°C to 85°C (-40°F to 185°F)

Input Power : 48~57V DC, Redundant Power (6-pin Terminal Block)

Power Consumption : 8W Max.(PoE in Use<360W)

PoE Budget : 90-watt each PoE Port, Total up to 360-watt PoE budget

Contact Now

Industrial 8-Port 10/100/1000M/2.5G 802.3bt PoE + 2-Port 10G/2.5G/1.25G SFP Managed Ethernet Switch

Industrial Managed POE Switch Advantages

► Support 8x10/100/1000M/2.5G Base-T + 2x10G/2.5G/1.25G Base-X SFP

► 10/100/1000M/2.5Gbps RJ45 Port supports Full/Half-duplex, Auto-negotiation, Auto MDI/MDIX

► IEEE802.3af/at/bt compliant

► Support connecting USB-C port for easy management, without the need to access the RS232 serial port at all

► IEEE 802.3az Energy Efficient Ethernet (EEE)

► IP40 Aluminum Case

► Supports DIN-Rail installation

► -40°C to 80°C (-40°F to 176°F) operating temperature

Overview

LNK-IMC208-2.5GP90M-SFP+ is the managed 8-port 10/100/1000M/2.5G Base-T 802.3bt PoE + 2-port 10G/2.5G/1.25G Base-X SFP hardened Ethernet switch. The Switch has 8 TP ports and 2 fiber ports. The TP (RJ45) supports 10/100/1000M/2.5G Base-T(X), Full/Half duplex mode, and auto MDI/MDI-X connection; 10G/2.5G/1.25G Base-X SFP port supports 1 or 2 core Single-mode or Multi-mode fiber. With its reliable design and ease of use, the product is a great choice for integrating networks consisting of network devices such as IP cameras and wireless access points between remote locations.

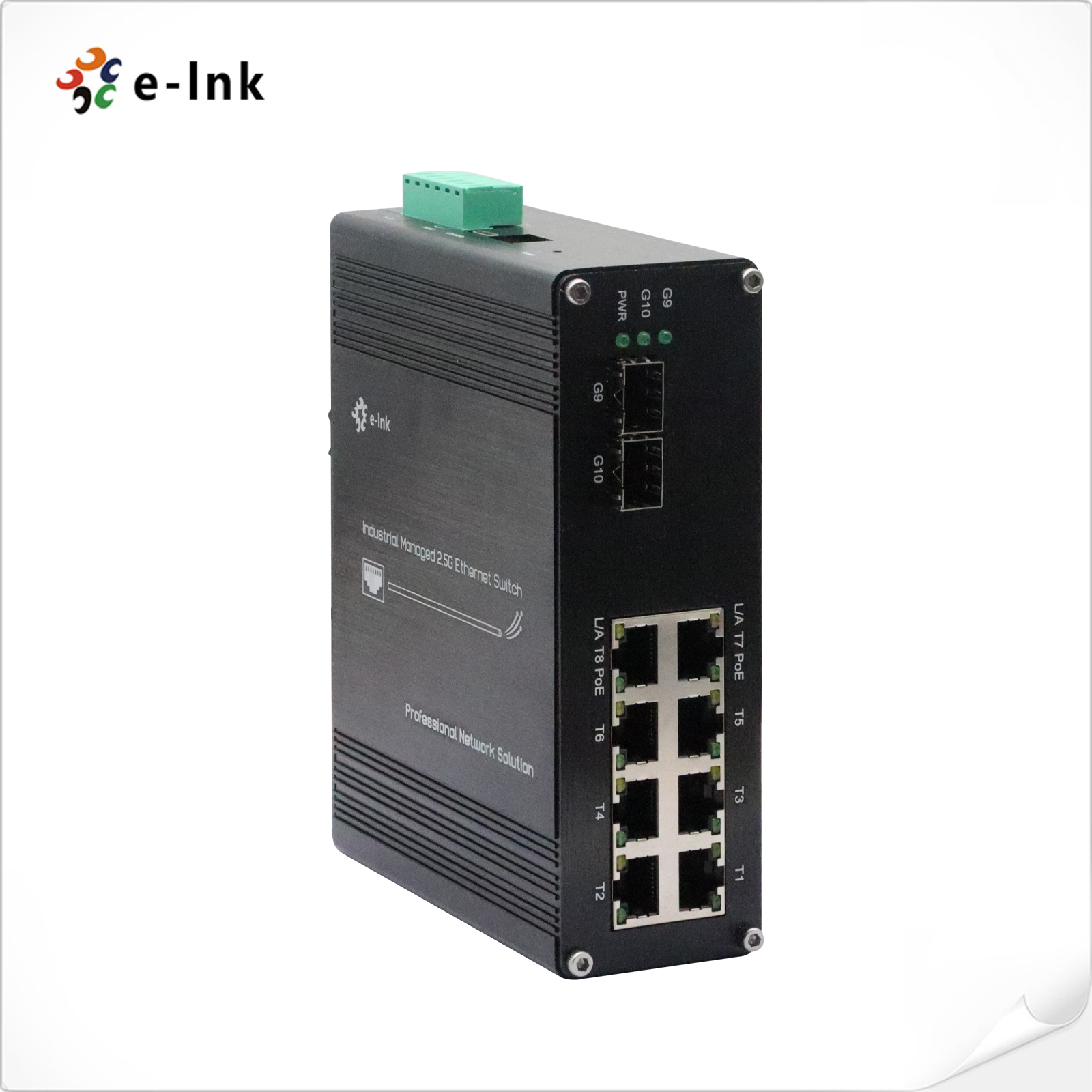

Industrial Managed POE Switch Picture

Industrial 8-Port 10/100/1000M/2.5G 802.3bt PoE + 2-Port 10G/2.5G/1.25G SFP Managed Ethernet Switch

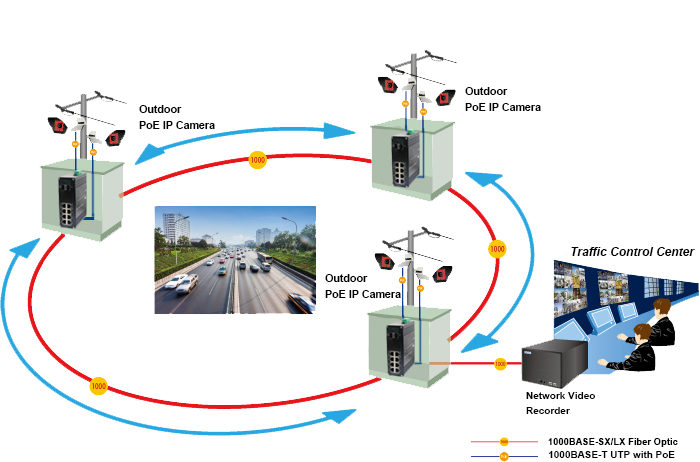

Application

Industrial 8-Port 10/100/1000M/2.5G 802.3bt PoE + 2-Port 10G/2.5G/1.25G SFP Managed Ethernet Switch

Ordering Information

Model	Description
LNK-IMC208-2.5GP90M-SFP+	Industrial 8-Port 10/100/1000M/2.5G 802.3bt PoE + 2-Port 10G/2.5G/1.25G SFP Managed Ethernet Switch
SFP Options	► SFP module is to be purchased separately.
Mounting Options	► Default DIN-Rail Bracket installed
Power Options	► DIN-Rail Power Supply. Open Wire for Terminal Block.
Power Options	► Power Supply is to be purchased separately.
