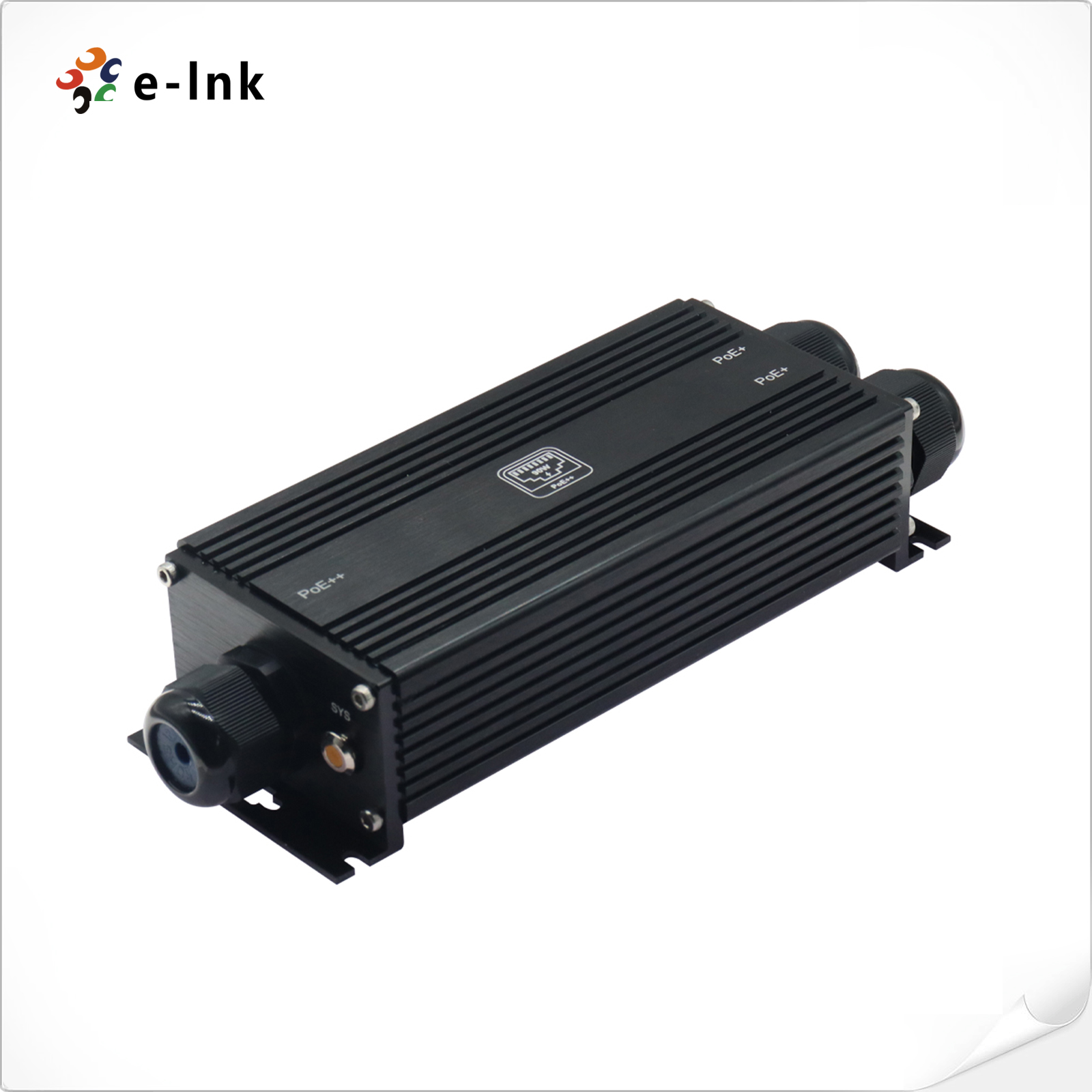

IP67 Waterproof Industrial Gigabit PoE Extender (1 x Input 2 x Output)

Name: IP67 Waterproof Industrial Gigabit PoE Extender 1 x Input 2 x Output
Brand: E-link
Price: 1 USD

IP67 Waterproof Industrial Gigabit PoE Extender (1 x Input 2 x Output) Manufactures

Brand Name : E-link

Model Number : LNK-WP-IPE102

Certification : ROHS,FCC,CE

Place of Origin : China

MOQ : 1 pcs

Price : Negotiation

Payment Terms : L/C,T/T,Western Union,MoneyGram,Paypal

Supply Ability : 1000 pcs/month

Delivery Time : 3-12 working days

Packaging Details : Carton Packaging

PoE Input Port : 1 x 10/100/1000Base-TX RJ-45, M25 x 1.5 Cable Glands

PoE Output Port : 2 x 10/100/1000Base-TX RJ-45, M25 x 1.5 Cable Glands

Operating Temperature : -40°C to 80°C (-40°F to 176°F)

Storage Temperature : -40°C to 85°C (-40°F to 185°F)

Dimensions (WxDxH) : 195 x 75 x 46 mm

Casing : Aluminum Case

Mounting Options : Wall-mount

Contact Now

IP67 Waterproof Industrial Gigabit PoE Extender (1 x Input 2 x Output)

Advantages

► IP67-rated aluminum case

► 10/100/1000Mbps Ethernet Ports

► All ports support IEEE 802.3af/at/bt standards

► 1 x Input, 2 x Output

► Enables 100-meter extension of Ethernet connectivity with PoE

► Wall-mountable design

► Wide operating temperature range: -40°C to 80°C

► No external power cable required for installation

► Plug-and-play functionality

► Supports 2K MAC address table for connecting more

► 10kB jumbo frame support in 1000Mbps full-duplex mode

Overview

LNK-WP-IPE102 is an industrial-grade IP67-rated Gigabit PoE Extender (1-in 2-out, 90W) that utilizes Power over Ethernet technology. It extends 1000Mbps Ethernet signals up to 100 meters, significantly increasing transmission distance while providing standard PoE power supply of 50-57V to communication devices.

Featuring industrial-grade housing and waterproof terminal design with IP67 protection rating, this extender operates within a wide temperature range of -40°C to 80°C, ensuring reliable performance in harsh environments. It is ideally suited for security surveillance and network engineering applications.

Ordering Information

Model	Description
LNK-WP-IPE102	IP67 Waterproof Industrial Gigabit PoE Extender 1 x Input 2 x Output
Mounting Options	Wall Mount Bracket is included.

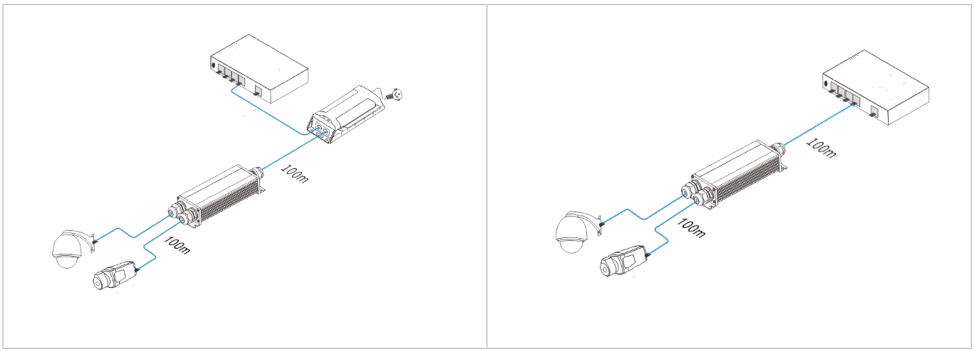

Application
