4K HDMI Splitter 1x16

Name: 4K HDMI Splitter 1x16
Brand: E-link
Price: 1 USD

Brand Name : E-link

Model Number : HDMI Splitter

Certification : CE

Place of Origin : China

MOQ : 1pcs

Price : negotiation

Payment Terms : L/C,T/T,Western Union,MoneyGram,PayPal

Supply Ability : 100000PCS/Month

Delivery Time : 7-10 working days

Packaging Details : Industrial PoE Switch Standard Carton Packaging

HDMI version : HDMI 1.4b

Support video color format : deep color 8/10/12bit

Size : 460x90x22mm

Weight : 974g

Operating Temperature range : -15 to +55℃

Contact Now

4K HDMI Splitter 1x16

Features

► Support HDMI 1.4b

► Support 3D video format

► Resolution up to 3840x2160/30Hz

► Support 3.2Gbps data rate for TMDS clock up to 320MHz

► Support deep color 8/10/12bit

► support AWG26 HDMI standard cable:

► Support displaying single source, multi-output high-definition signal source from DVD player A / V receiver, set-top box

► DC 12V power supply

Technical Indexes

HDMI version	HDMI 1.4b
HDMI resolution	up to 3840*2160/30Hz
Support video color format	deep color 8/10/12bit
Support audio format	DTS-HD/Dolby-trueHD/DTS/Dolby-AC3/DSD
Max bandwidth	320MHz
Max transmission bandwidth	3.2Gbps
Input cable distance	(1080p resolution) ≤15m, (4K resolution)≤12m AWG26 HDMI standard cable
Output cable distance	(1080p resolution) ≤20m (4K resolution)≤15m AWG26 HDMI standard cable
HDMI input	1
HDMI output	16
Power adapter format	Input: AC (50HZ, 60HZ) 100V-240V; Output: DC5V1A/5V2A/12V/3A
Operating Temperature range	(-15 to +55℃)
Operating Humidity range	5 to 90%RH (No Condensation)
Size	460x90x22mm
Weight	974g

Overview

The HDMI Splitter uses a single HDMI source, accessing to multiple HDMI sinks. It allows one HDMI device to be split easily to 16 HDMI compatible monitors or projectors. The Splitter can also be placed at the end of a long HDMI cable to regenerate the HDMI signal. resolution up to 3840x2160/30Hz.

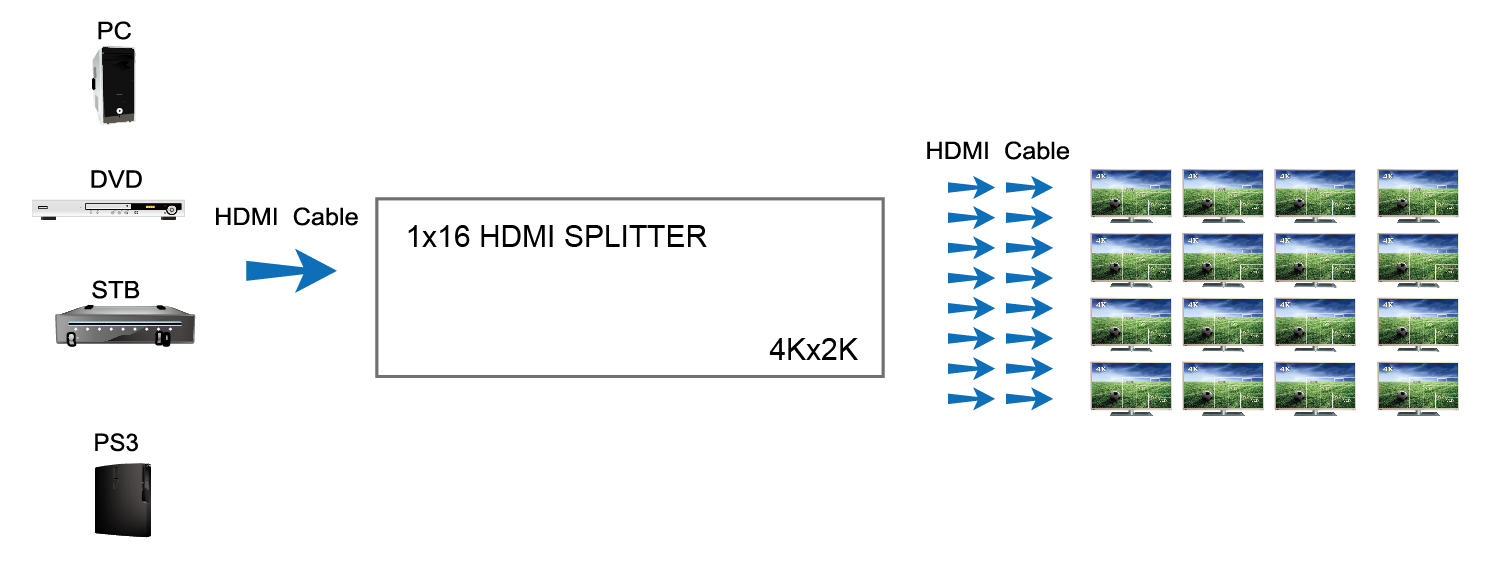

Application
4K HDMI Splitter 1x16
Ordering Information

Model	Description
LNK-HDMI-SP1x16	4K HDMI Splitter 1x16

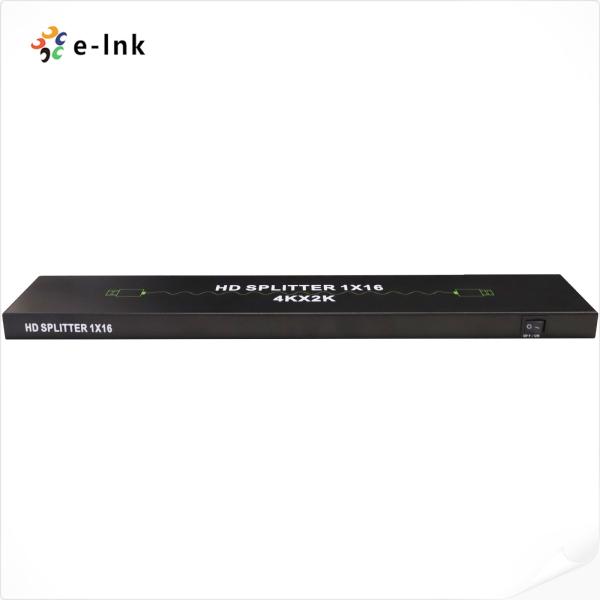

4K HDMI Splitter 1x16 Images
