Industrial 1-Port 802.3bt PoE++ to 4-Port 802.3af/at Gigabit PoE Extender
Industrial PoE Switch Advantage
► 10/100/1000Mbps Ethernet Ports
► 1 RJ-45 PoE/PD + 4 RJ-45 PoE/PSE
► IP40-rated aluminum case
► Support DIN-Rail & Wall-mount installation
► Environmentally Hardened -40°C to 80°C (-40°F to 176°F) operating temperature
Overview
LNK-IPE104-90 is an industrial 1-Port 802.3bt PoE++ to 4-Port 802.3af/at Gigabit PoE Extender
designed especially for the point to multipoint PoE application. The LNK-IPE104-90 can obtain
a maximum of 95-watt PoE power from 802.3bt PoE++ input port and supplies a maximum of
75-watt PoE power budget for 4 PoE output ports, extending both the reach of Gigabit Ethernet
Data and IEEE 802.3at Power over Ethernet over the standard 100m (328 ft.) Cat. 5/5e/6 UTP
cable to 200m where up to 4 powered devices (PDs) can be powered at the same time. The
LNK-IPE104-90 provides a simple solution for adding PoE ports without running more cabling
and achieves more flexible network applications without requiring an external power adapter.

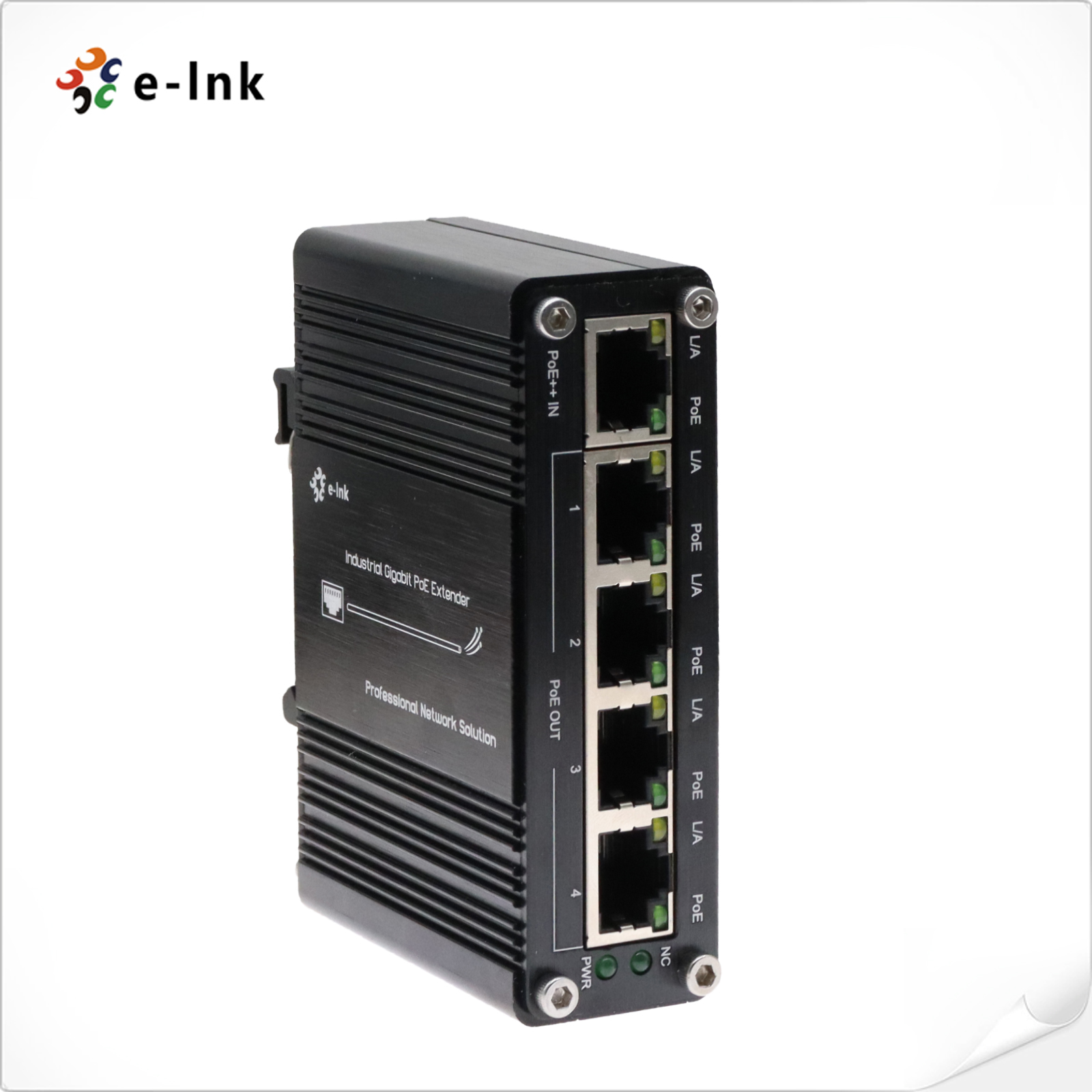

Industrial PoE Switch Picture
Technical Indexes
| Ethernet Port |
| PoE Input Port | 10/100/1000Base-TX RJ45, IEEE 802.3bt PoE Input Input Power 50~57V DC, Max 95W |
| PoE Output Port | 1*10/100/1000Base-TX RJ45, IEEE 802.3bt/at PoE Output Output Power: Max 75W in total, 75W@ 101m, 65W@ 200m |
| Cascade connection | Support 3 grade |
| Power over Ethernet |
| PoE Standard | IEEE 802.3af Power over Ethernet IEEE 802.3at Power over Ethernet Plus IEEE 802.3bt Power over Ethernet Plus Plus |
| PoE Power Supply Type | Mid-span and End-span |
| PoE Pin Assignment | 1/2(+), 3/6(-),4/5(+), 7/8(-) |
| Switch Property |
| Standards | IEEE 802.3 Ethernet IEEE 802.3u Fast Ethernet IEEE 802.3ab Gigabit Ethernet IEEE 802.3x Flow Control |
| Forwarding Modes | Store and Forward |
| Transmission Distance | 100m |
| MAC Table | 8K |
| Switching Capacity | 10Gbps |
| Packet Forwarding Rate | 14.88Mpps |
| Flow Control | IEEE 802.3x pause frame for full duplex, Back pressure for half duplex |
| Jumbo Frame | 10K bytes |
Application
Ordering Information
| Model | Description |
| LNK-IPE104-90 | Industrial 1-Port 802.3bt PoE++ to 4-Port 802.3af/at Gigabit PoE Extender |
| Mounting Options | ► Default DIN-Rail Bracket installed; Wall Mount Bracket is included. |
