Mini Industrial 3-Port 10/100/1000T 802.3at PoE + 1-Port 100/1000X SFP
Ethernet Switchwith 12~48VDC Input and Voltage Booster
Mini Industrial PoE Switch Advantage
► 3 10/100/1000BASET RJ45 auto-MDI/MDI-X ports with IEEE 802.3at PoE+ Injector (Port-1 to Port-3)
► 1 SFP Port, 100Base-FX or 1000Base-X dual mode (auto detection)
► 12~48VDC wide range power input with power booster function
► Up to 90W PoE budget (48VDC), 90W PoE budget (24VDC), 60W PoE budget (12VDC)
► Environmentally hardened -40°C to 75°C(-40°F to 167°F) operating temperature
Overview
LNK-IMC103GP-SFP Series is a Mini Industrial 3-Port 10/100/1000T 802.3at PoE + 1-Port 100/1000X SFP
Gigabit Ethernet Switch with 12~48VDC Input and Voltage Booster. This unmanaged industrial solar power
PoE switch is designed to match the critical industrial standards. With reliable and simple operation against
vibration and shock, and wide operation temperature range, it could match a variety of harsh environment.
The switch complies with CE and FCC standards, and passed the 100% burning test to ensure that it will
fulfill the needs of industrial applications. It is a good choice for an economical solution for industrial Ethernet
connections.

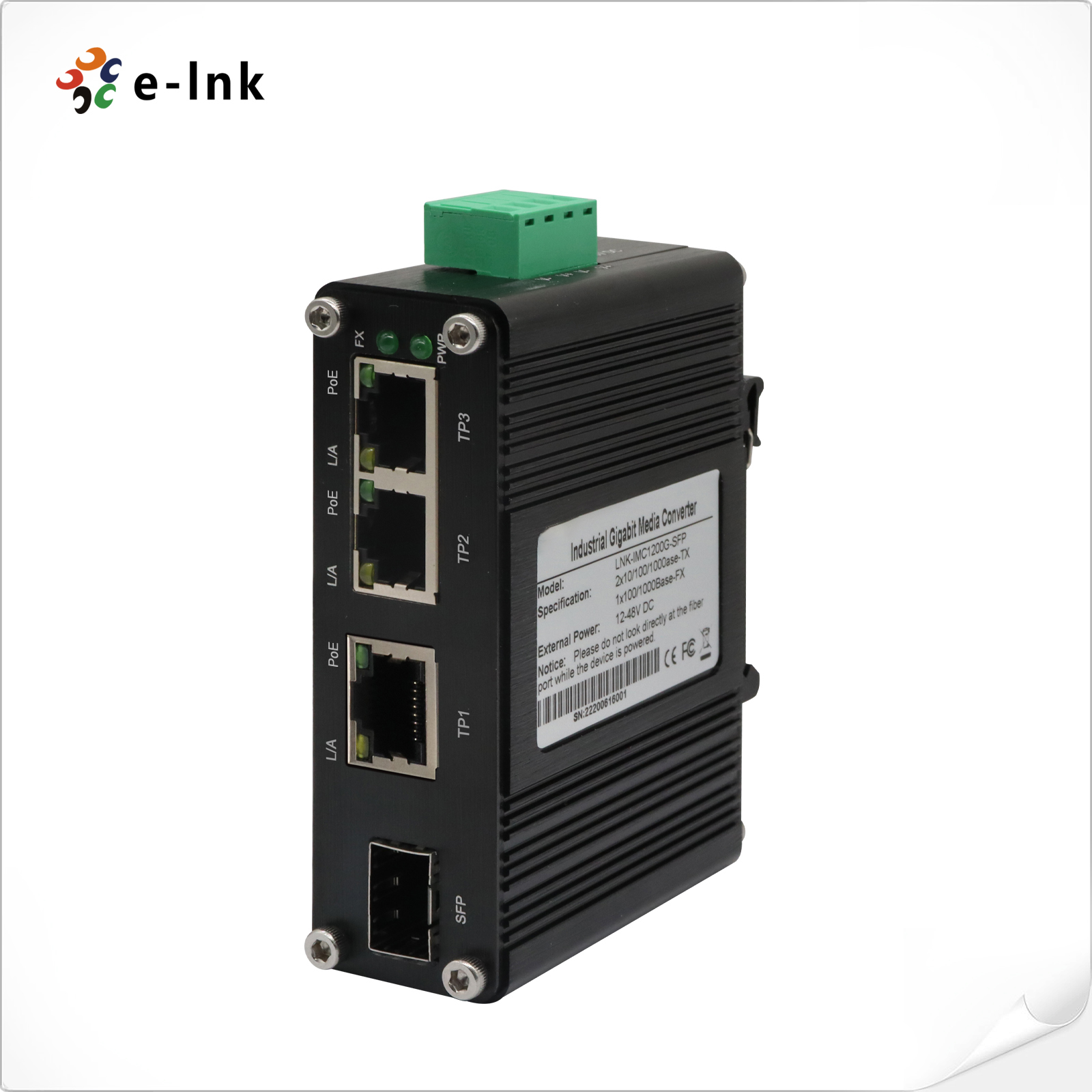

Mini Industrial PoE Switch Picture
Technical Indexes
| Interface |
| Connector: | 3 x RJ45 with 802.3at PoE+ injector function (Ports 1 to 3) |
| Optical Port: | 1 x SFP 1000Base-X or 100Base-FX (auto detection) |
| PoE (Power over Ethernet) |
| PoE Budget: | Up to 90-watt PoE budget (48VDC), 90-watt PoE budget (24VDC), 60-watt PoE budget (12VDC) |
| Electrical and Mechanical |
| Input Power: | 12~48VDC, 2-pin terminal block |
| Power Consumption: | <95W (Non-PoE<6W) |
| Environmental |
| Operating Temperature: | -40°C to 75°C (-40°F to 167°F) |
| Storage Temperature: | -40°C to 85°C (-40°F to 185°F) |
| Relative Humidity: | 5% to 95% non-condensing |
| MTBF | > 200,000 hrs |
| Regulatory Approvals |
| ISO9001, CE, FCC, RoHS |

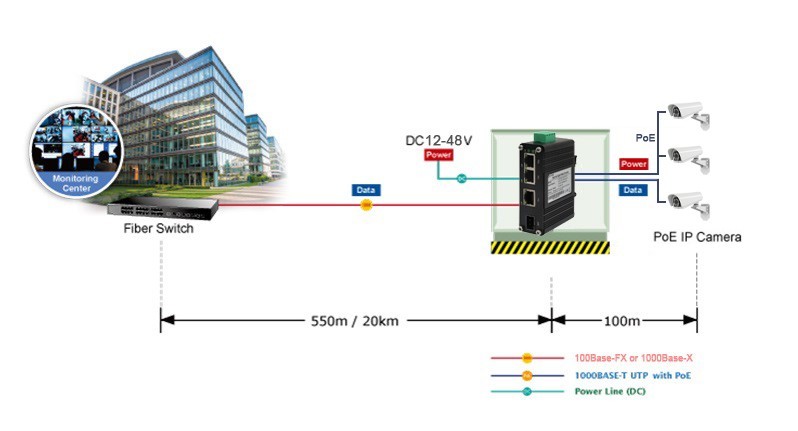

Application
Ordering Information
| Model | Description |
| LNK-IMC103GP-SFP | Mini Industrial 3-Port 10/100/1000T 802.3at PoE + 1-Port 100/1000X SFP Ethernet Switch with 12~48VDC Input and Voltage Booster |
| SFP Options | ► SFP option. Please select your SFP on our SFP Options Page (Industrial SFP). |
| | ► SFP module is to be purchased separately. |
| Mounting Options | ► Default DIN-Rail Bracket installed; Wall Mount Bracket is included. |
| Power Options | ► 12~48VDC Power Supply. Open Wire for Terminal Block |
| | ► Power Supply is to be purchased separately. |
